Wheel Arch Liner - Rear - LH - Remove And Replace: Removal

  1. Remove the rear wheel. See WHEEL (REMOVE AND INSTALL) .

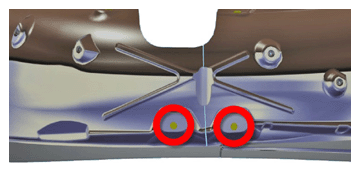

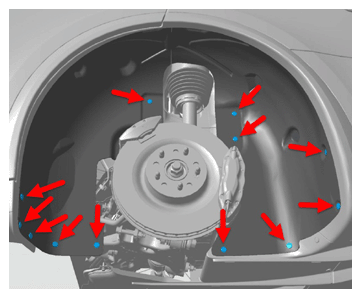

  2. Remove the push clips (x14) that secure the wheel arch liner.
    Base of wheel arch liner Top of wheel arch liner
    G15200278Courtesy of TESLA, INC.
    G15200279Courtesy of TESLA, INC.

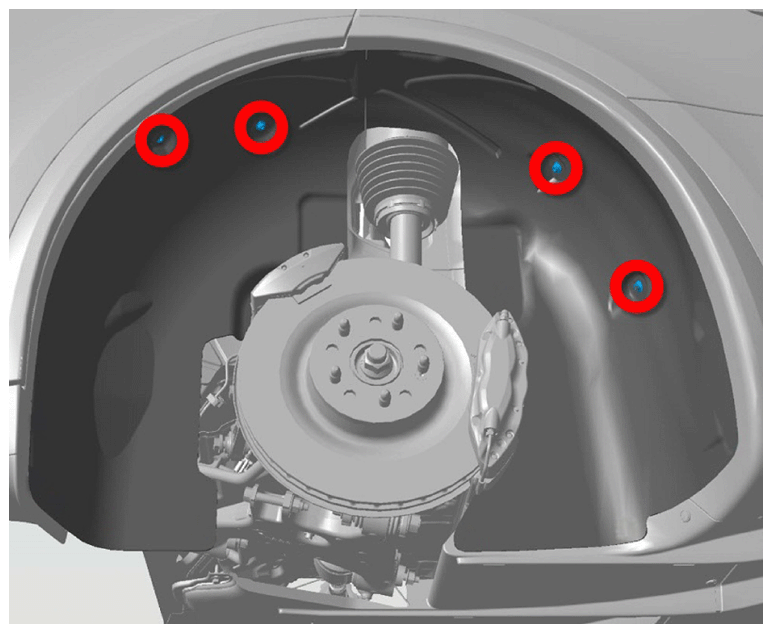

  3. Remove the nuts (x4) that secure the wheel arch liner to the studs on the chassis (torque 6 N.m).
    G15200280Courtesy of TESLA, INC.
  4. Remove the rear wheel arch liner.
