Underhood Apron - LH - Remove And Replace: Remove

  1. Remove the rear center underhood apron UNDERHOOD APRON - CENTER - REAR (REMOVE AND REPLACE) .
  2. Gently pull up on the LH apron to release the clips that secure it to the vehicle.
    CAUTION: Take care not to damage component(s).

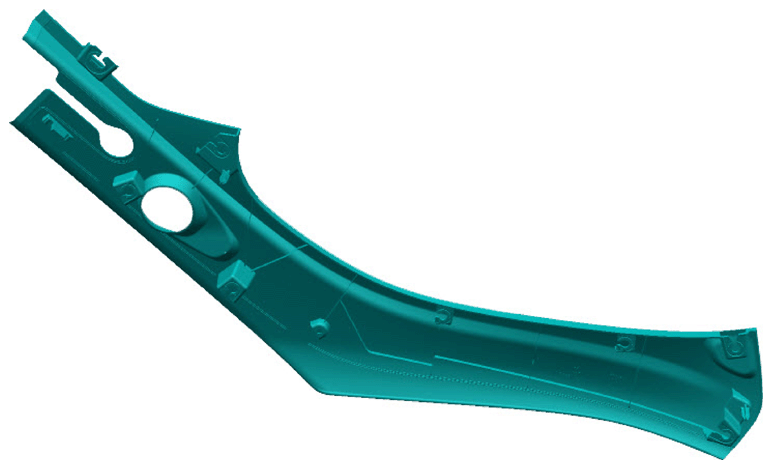

    G15200428Courtesy of TESLA, INC.
  3. Remove the LH underhood apron from the vehicle.
