Assembly - Underhood Apron - Front - Remove And Replace: Remove

  1. Remove the LH and RH underhood aprons UNDERHOOD APRON - LH (REMOVE AND REPLACE) .

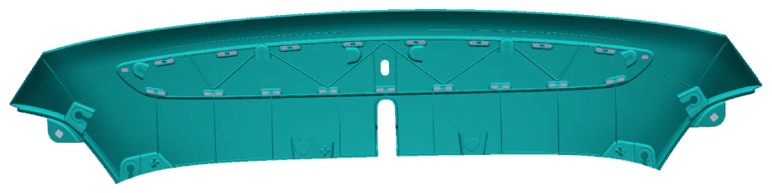

  2. Gently pull up on the apron assembly to release it from the clips.
    G15200418Courtesy of TESLA, INC.
  3. Remove the front underhood apron from the vehicle.
