Bracket - License Plate - Front - Remove And Replace: Removal

  1. If installed, remove the screws that secure the front license plate to the front license plate bracket.
  2. Remove the self-tapping screws (x3) that secure the front license plate bracket to the front fascia. Remove the license plate bracket.

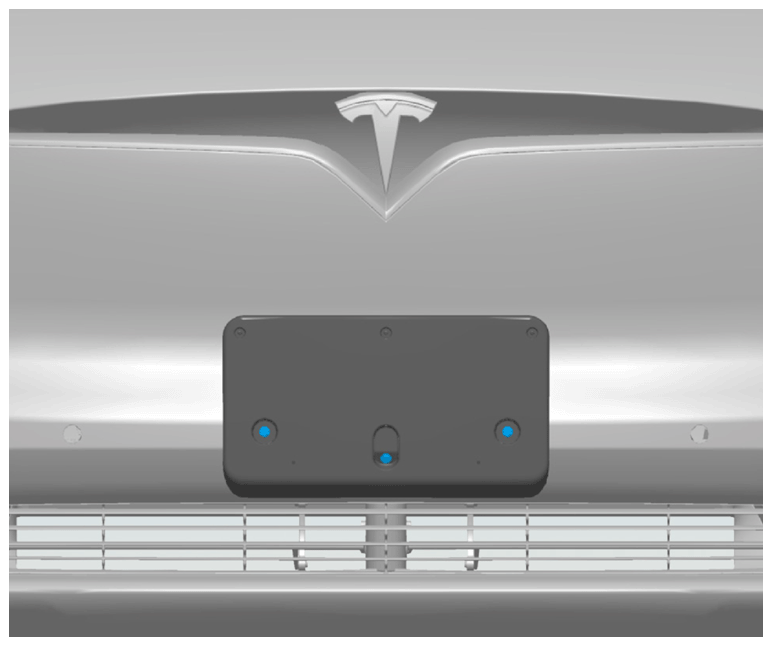

    G15200313Courtesy of TESLA, INC.
