Garnish - Fender - Rear - LH - Remove And Replace: Removal

  1. Set the air suspension to the "High" setting and place the vehicle is Jack Mode.
  2. Open the rear door.

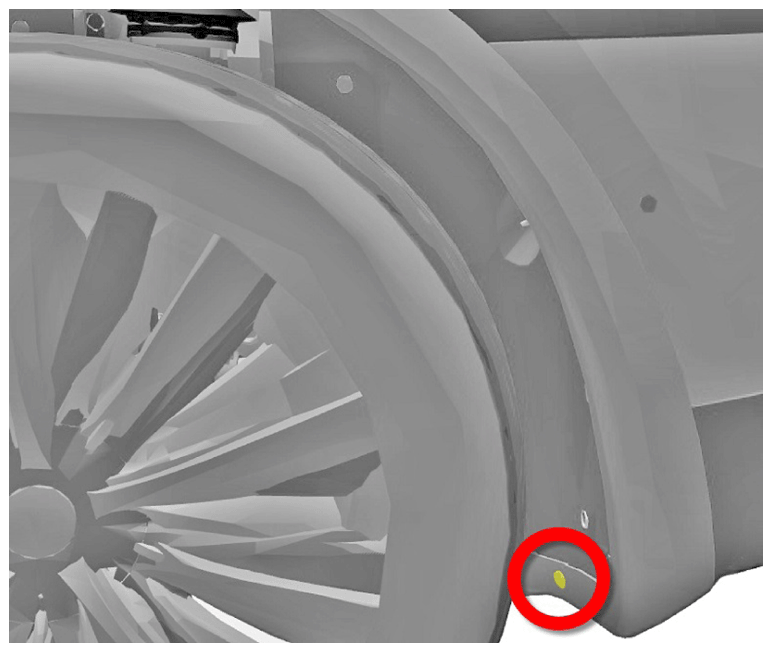

  3. Remove the push clip that secures the bottom of the rear fender garnish to the mid aero shield.
    G15200377Courtesy of TESLA, INC.

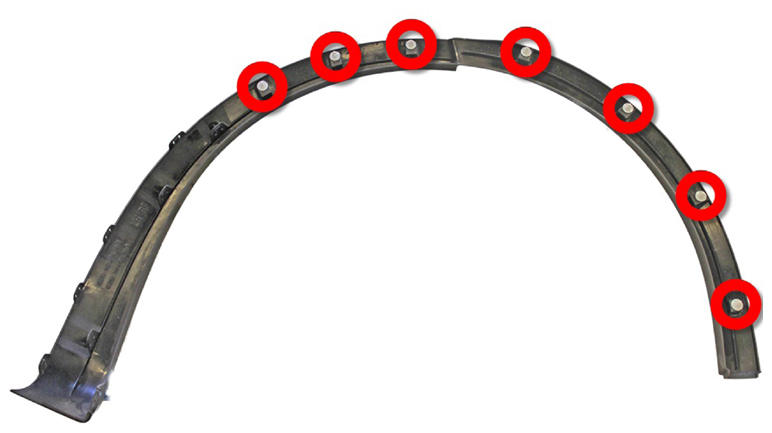

  4. Starting from the rear, use a plastic trim tool to carefully pry the fender garnish away from the vehicle to release the heart flex clips (x7) and tabs (x7) that secure it to the vehicle.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15200378Courtesy of TESLA, INC.
  5. Remove the rear fender garnish from the vehicle.
