Carrier - Rocker Panel - LH - Remove And Replace: Removal

  1. Remove the rocker passive entry antenna Antenna - Passive Entry - Rocker - LH (Remove And Replace) .

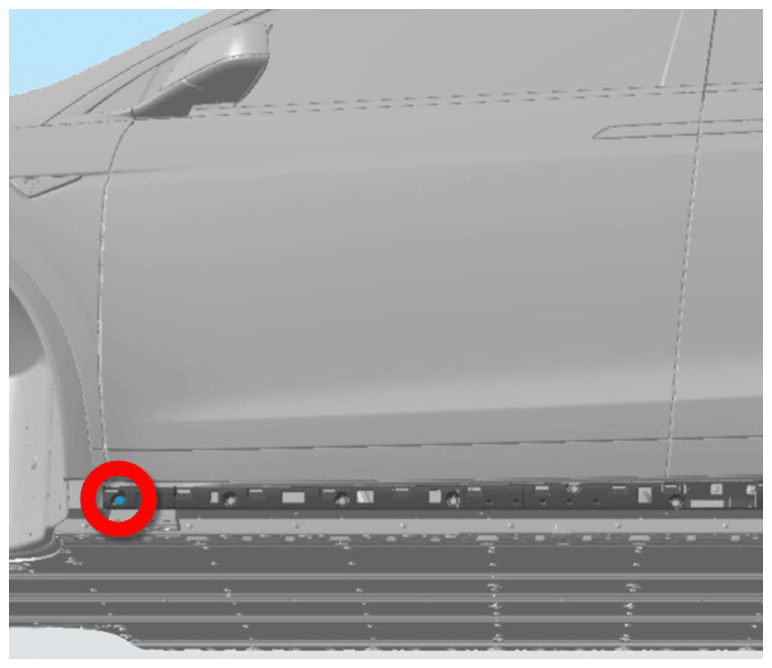

  2. Release the push clip that secures the front of the rocker panel carrier to the rocker panel.
    G15200357Courtesy of TESLA, INC.

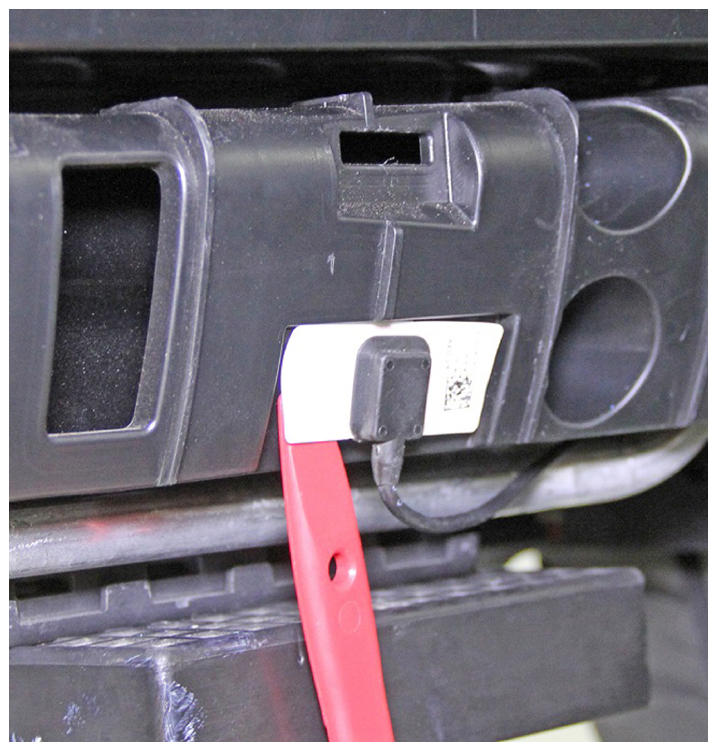

  3. Use a trim tool to carefully release the double sided tape that secures the front and rear Bluetooth antennas.
    NOTE: RH side shown; LH side is identical.
    G15200358Courtesy of TESLA, INC.

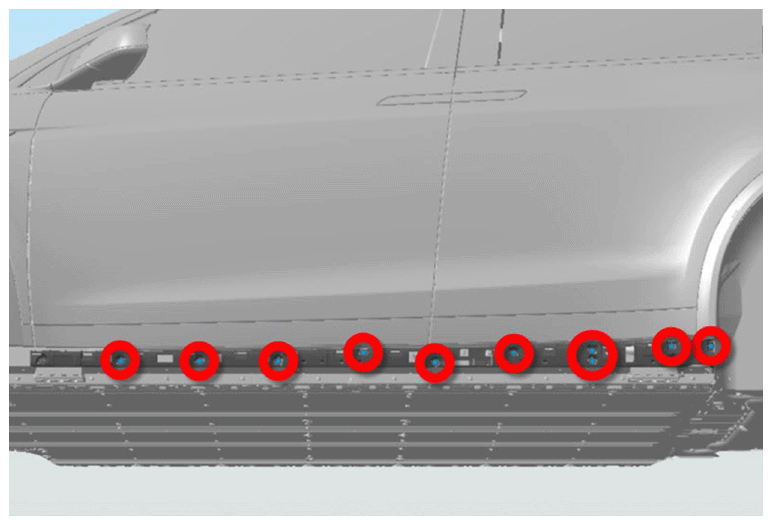

  4. Remove the bolts (x10) that secure the rocker panel carrier to the body of the vehicle (torque 3 N.m).
    G15200359Courtesy of TESLA, INC.
  5. Remove the rocker panel carrier from the vehicle.
