- Open both LH doors.

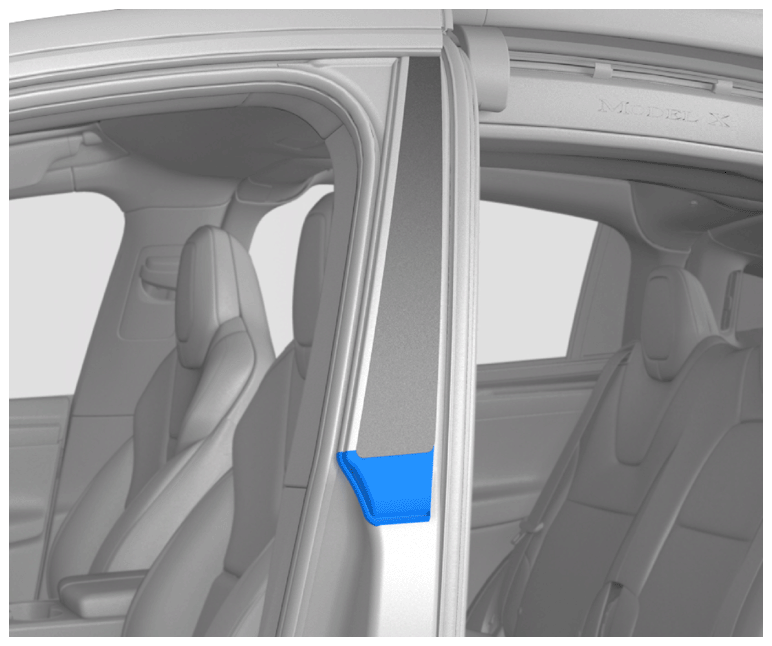

- Pull back the lower seal at the bottom of the B-pillar applique.
 Courtesy of TESLA, INC.
|

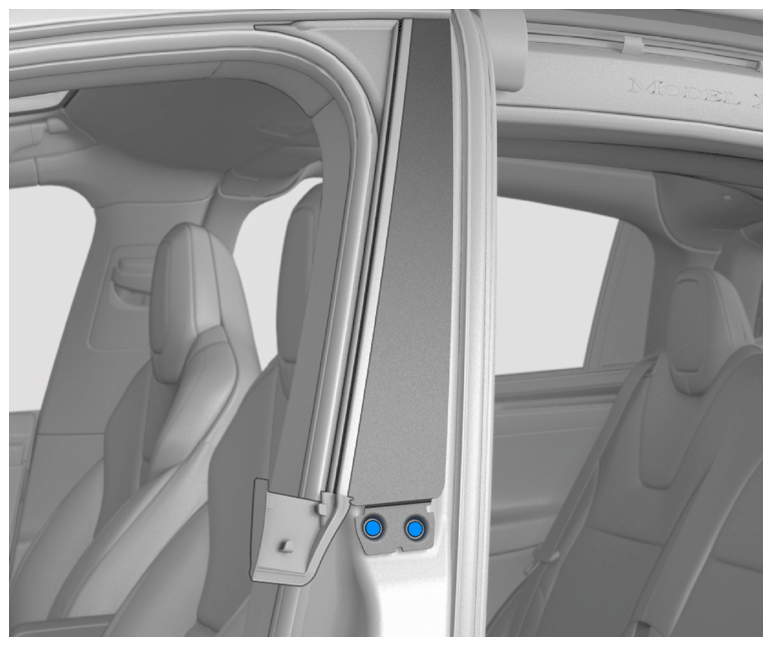

- Remove the screws (x2) that attach the lower part of the B-pillar applique.
 Courtesy of TESLA, INC.
|

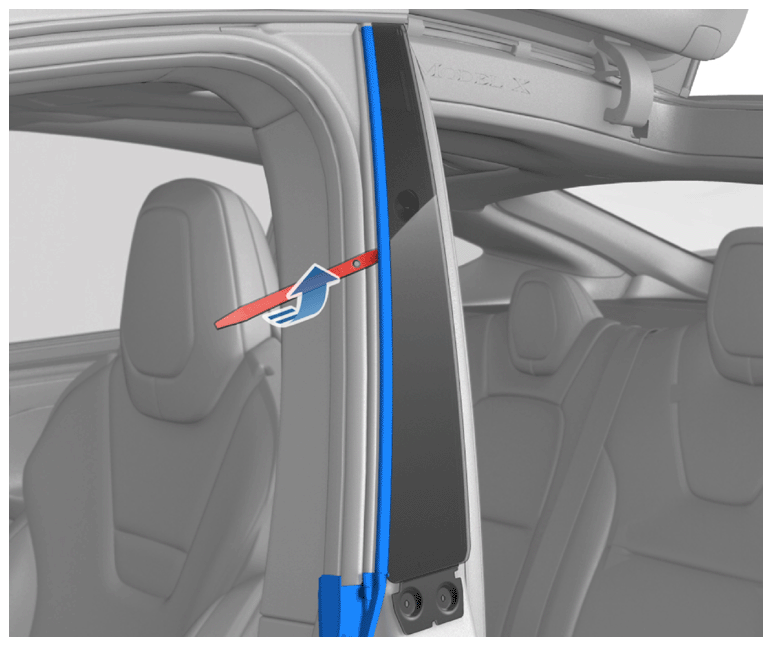

- Slide the Assembly Wedge Part L behind the LH B-pillar applique seal, and then twist to release the clip.
NOTE:
The clip is located approximately 80 mm below the camera lens opening.
 Courtesy of TESLA, INC.
|

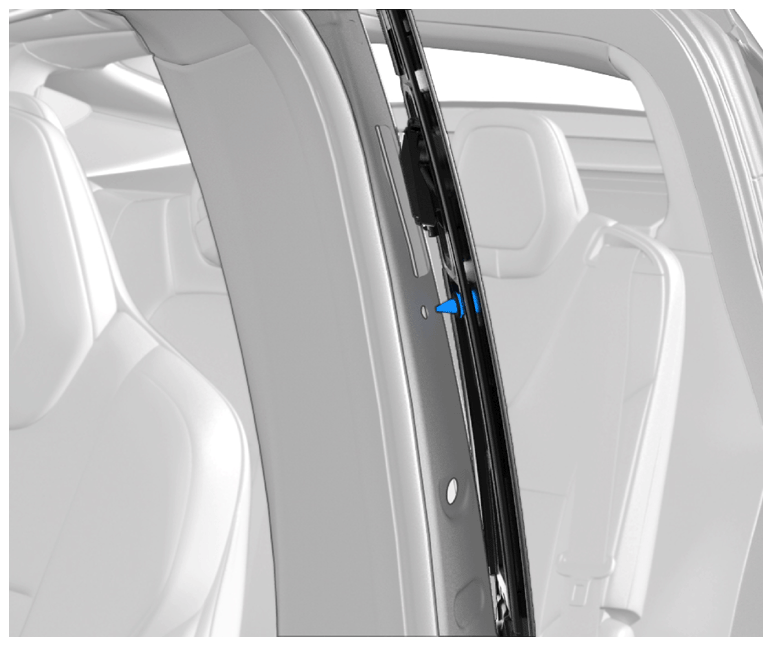

- Move the B-pillar applique downwards to release the upper tab, and then pull the LH B-pillar applique away from the body.
CAUTION:
The camera harness does not have much slack.
 Courtesy of TESLA, INC.
|

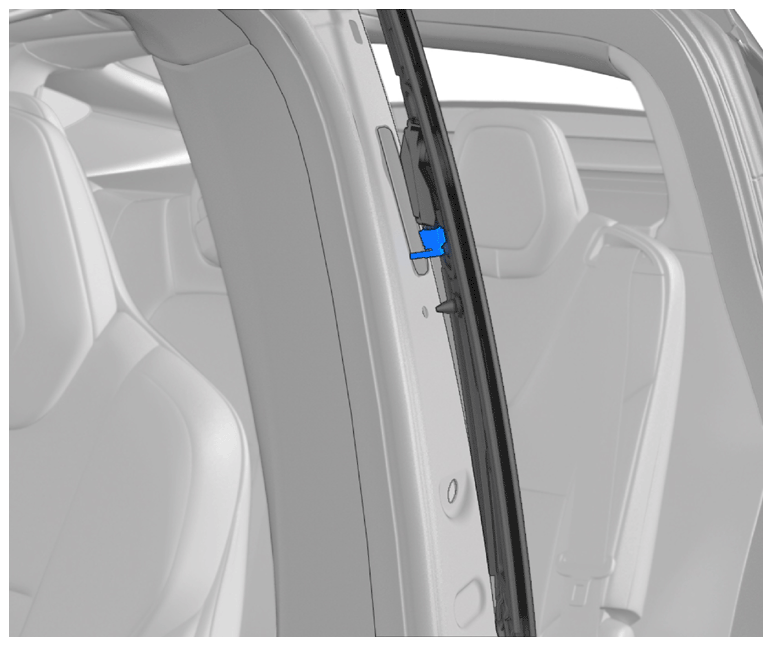

- Hold the LH B-pillar trim panel away from the body, and then disconnect the camera electrical connector.
 Courtesy of TESLA, INC.
|

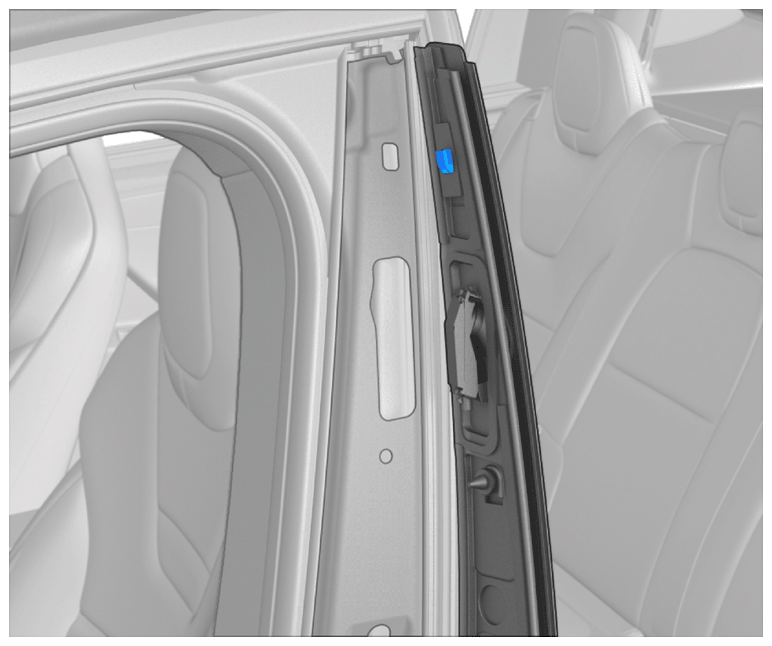

- Pull the B-pillar applique seal away from the LH B-pillar applique to release the seal, and then remove the LH B-pillar applique from the vehicle.
NOTE:
Start at the top of the LH B-pillar applique and work around it.
 Courtesy of TESLA, INC.
|
