Applique (Roof, Front) - Remove And Replace: Removal

  1. Open the LH front door.
  2. Open the LH and RH rear doors.

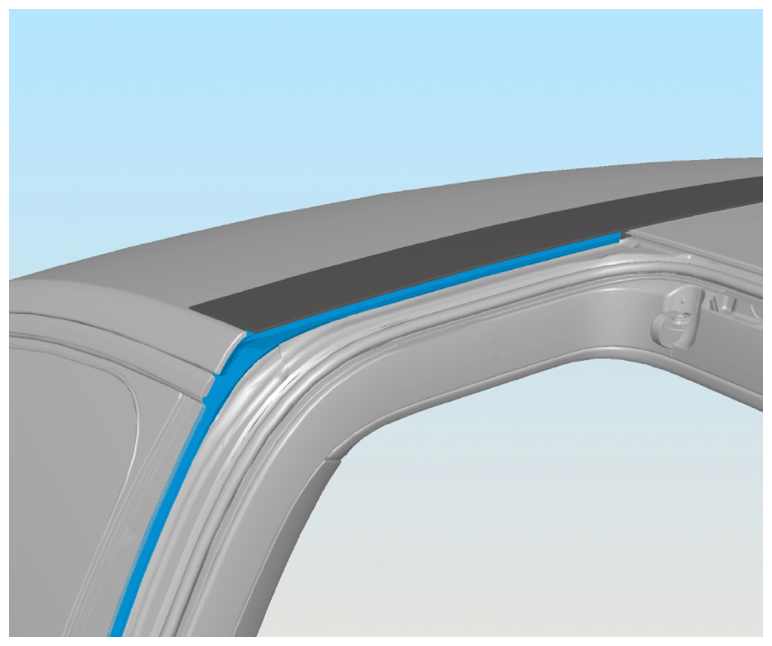

  3. Release the LH and RH B-pillar applique seals from the top of the roof until they clears the front roof applique.
    NOTE: Do not remove the B-pillar applique seal below the bend between the roof and the B-pillar.
    G15200346Courtesy of TESLA, INC.
  4. Cover the newly-exposed areas with tape.
  5. Use a glass cutting blade to release the front roof applique from the vehicle.
  6. Remove and discard the front roof applique.
