Applique (Front Quarter) - LH - Remove And Replace: Removal

  1. Remove the front upper brightwork BRIGHTWORK - UPPER - FRONT - LH (REMOVE AND REPLACE) .

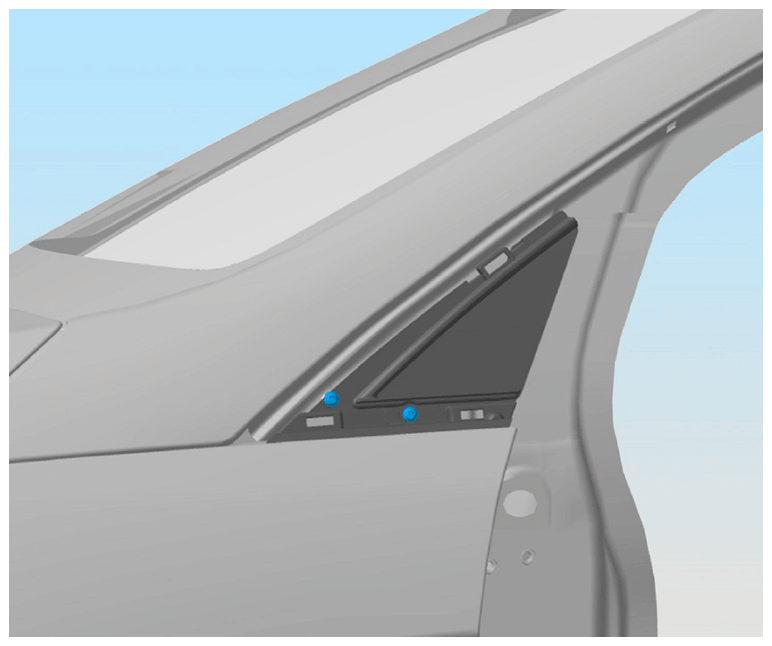

  2. Remove the screws (x2) that secure the front quarter applique to the vehicle (torque 1 N.m).
    NOTE: Components have been removed in this graphic to aid clarity.
    G15200339Courtesy of TESLA, INC.

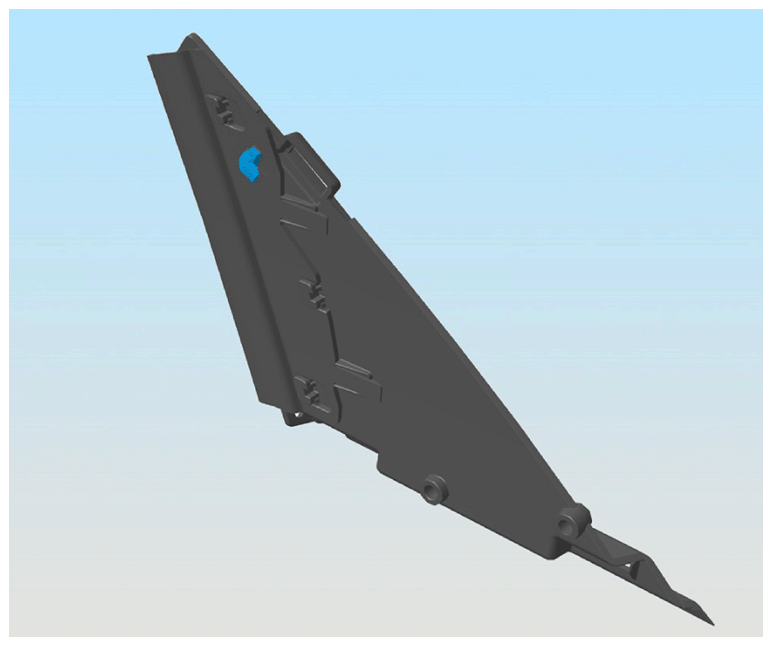

  3. Move the applique upwards and towards the rear of the vehicle to release the tab on the inboard side of the applique from the slot in the body of the vehicle.
    G15200340Courtesy of TESLA, INC.
  4. Remove the front quarter applique from the vehicle.
