Applique (C-Pillar) - LH - Remove And Replace: Removal

  1. Lower the LH 2nd row window approximately halfway.
  2. Open the LH 2nd row door approximately halfway.
  3. Disconnect 12V power Disconnect 12V Power .
  4. Remove the rear window regulator Window Motor/Regulator Assembly - Rear - LH (Remove And Replace) .
  5. Remove the rear door front applique APPLIQUE - REAR DOOR - FRONT - LH (REMOVE AND REPLACE) .
  6. Remove the rear pinch sensor Pinch Sensor Carrier (2nd row) - Rear - LH (Remove And Replace) .

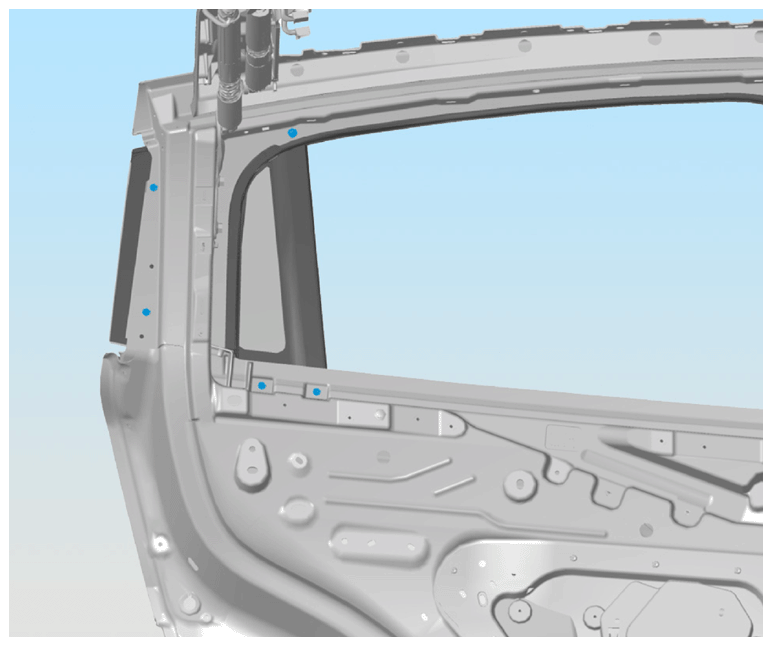

  7. Remove the fasteners that secure the C-Pillar applique to the door (torque 4.5 N.m).
    G15200338Courtesy of TESLA, INC.
  8. Remove the C-Pillar applique from the vehicle.
