Nose Badge - Front - Remove And Replace: Remove

  1. Remove the front underhood apron ASSEMBLY - UNDERHOOD APRON - FRONT (REMOVE AND REPLACE) .

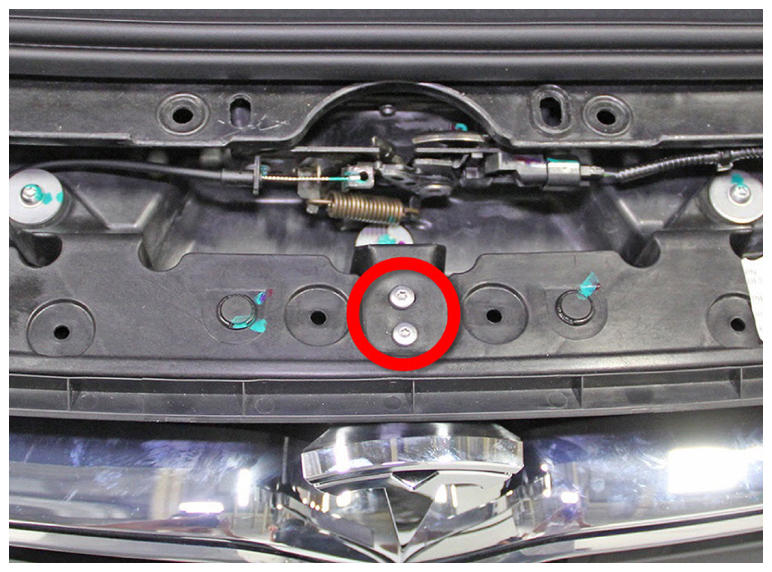

  2. Remove the bolts (x2) that secure the front nose badge to the front ducting (torque 5 N.m).
    G15200304Courtesy of TESLA, INC.

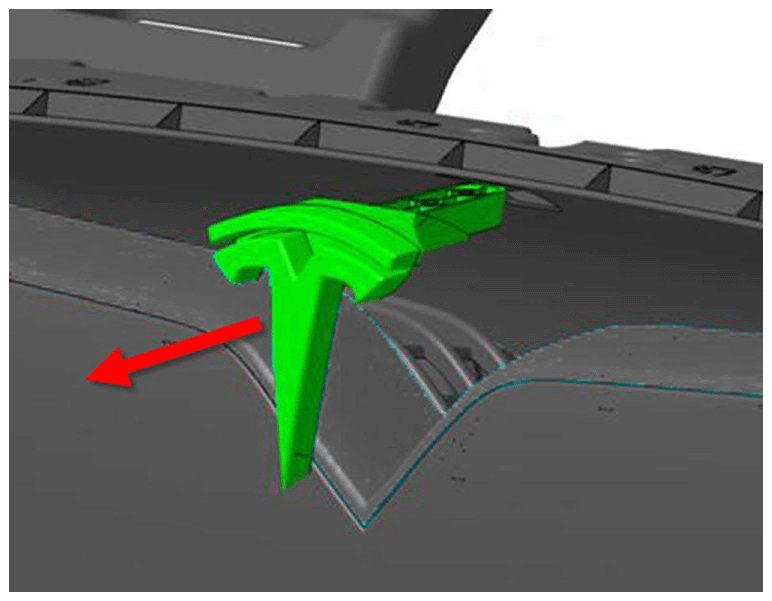

  3. Remove the nose badge from the vehicle.
    G15200305Courtesy of TESLA, INC.
