- Remove the upper rear door glass DOOR GLASS - REAR - UPPER - LH (REMOVE AND REPLACE) .

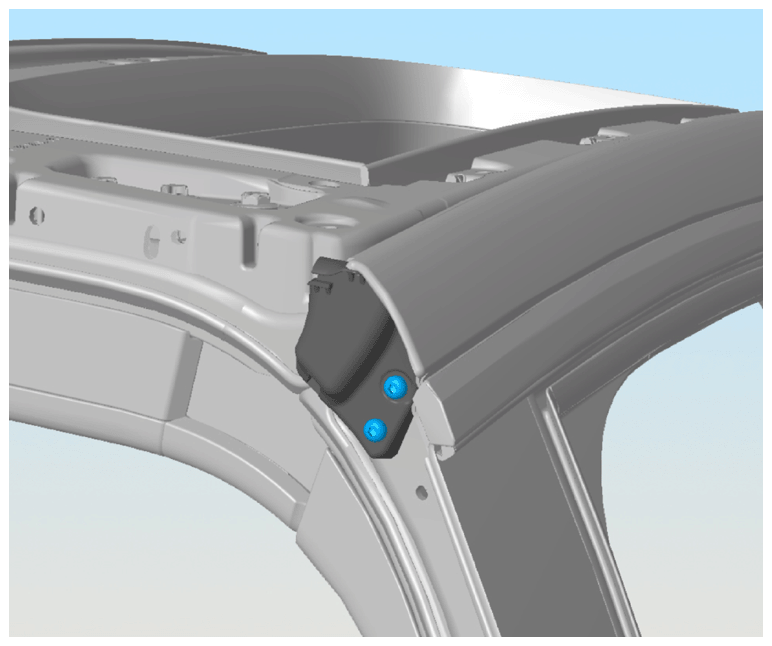

- Remove the front (x2) and rear (x2) screws that secure the ends of the LH rear door cantrail seal to the LH rear door (torque 3.5 N.m).
NOTE:
Front end shown, rear similar.
 Courtesy of TESLA, INC.
|

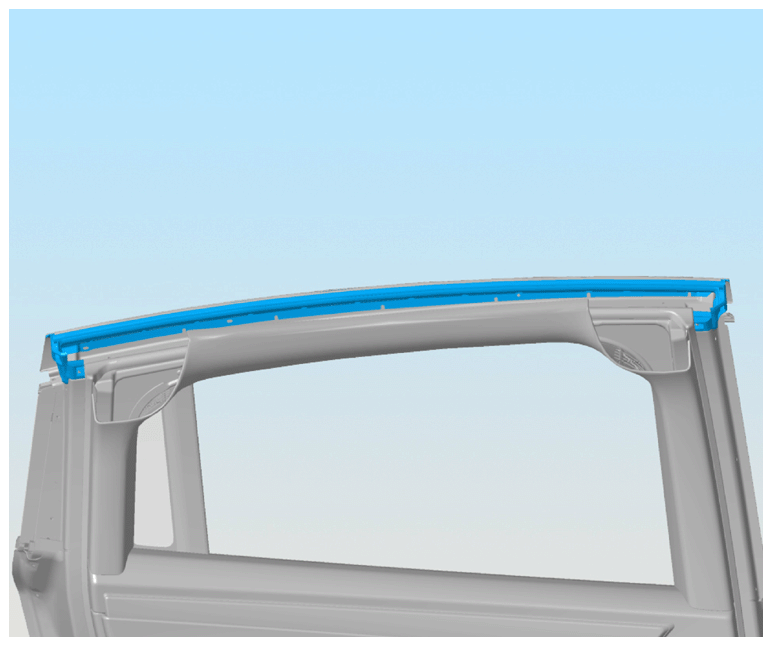

- Loosen, but do not remove, the outer nuts that secure the seal to the rear door (torque 5 N.m).
NOTE:
Do not remove the seal at this time.
NOTE:
Seal shown with nuts.
 Courtesy of TESLA, INC.
|
- Move the rear door to a position that allows the remainder of the seal nuts to be accessible.

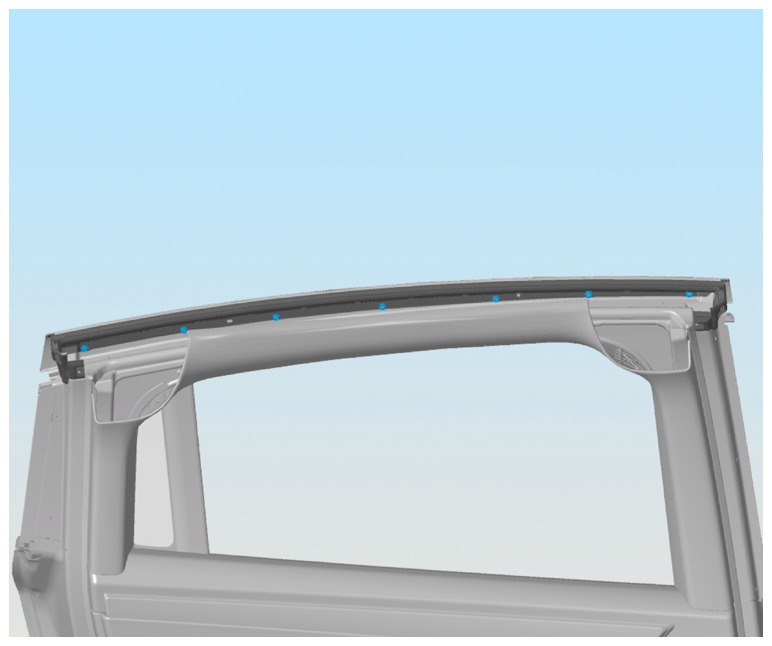

- Loosen, but do not remove, the outer nuts that secure the seal to the rear door (torque 5 N.m).
NOTE:
Do not remove the seal at this time.
 Courtesy of TESLA, INC.
|
- Step outside the vehicle and partially close the rear door.
- From outside of the vehicle, remove the seal from the vehicle.
NOTE:
Open the rear door slightly to aid with the removal of the seal from the vehicle.
 Courtesy of TESLA, INC.
|
