Seal - Rear Door - LH - Remove And Replace: Removal

  1. Remove the LH rear lower door assembly DOOR ASSEMBLY - REAR LOWER - LH (REMOVE AND REPLACE) .

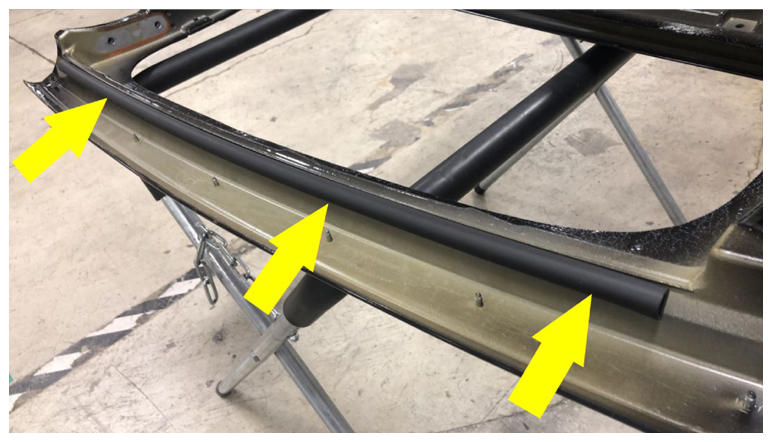

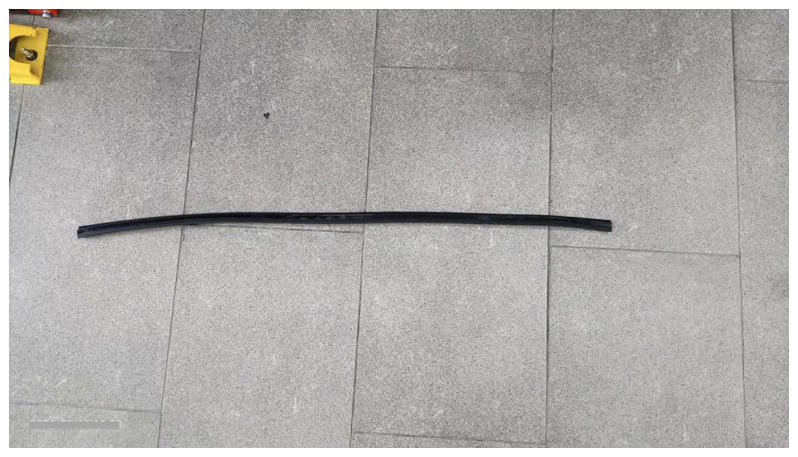

  2. Removal the NVH extrusion seal from LH lower falcon door.
    G15200256Courtesy of TESLA, INC.
G15200257Courtesy of TESLA, INC.
