Seal - Primary - Rear Door - LH - Remove And Replace: Removal

  1. Position a rear sill cover on the rear sill.
  2. Remove the upper rear door glass DOOR GLASS - REAR - UPPER - LH (REMOVE AND REPLACE) .
  3. Fully open the rear door.

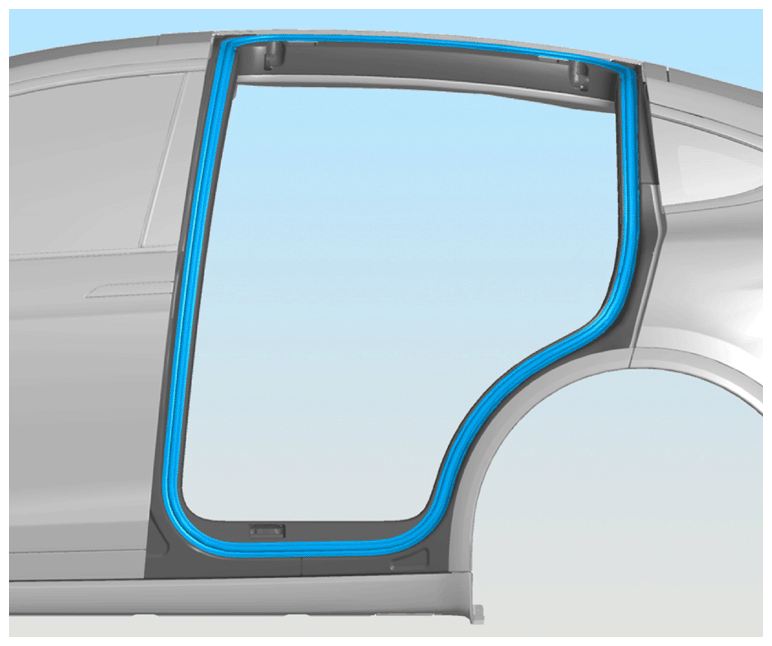

  4. Remove the rear door primary seal from the vehicle.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15200274Courtesy of TESLA, INC.
  5. Carefully remove all butyl and residue.
    CAUTION: Care must be taken to avoid damage to paintwork and exterior trim.
