Seal - Primary - Front Door - LH - Remove And Replace: Removal

  1. Open the front door.
  2. Apply masking tape on the A-pillar to indicate the location of the stiffer part of the seal near the door quarter glass.
  3. Carefully release the seal, starting from the rocker panel and working towards the upper section of the seal.

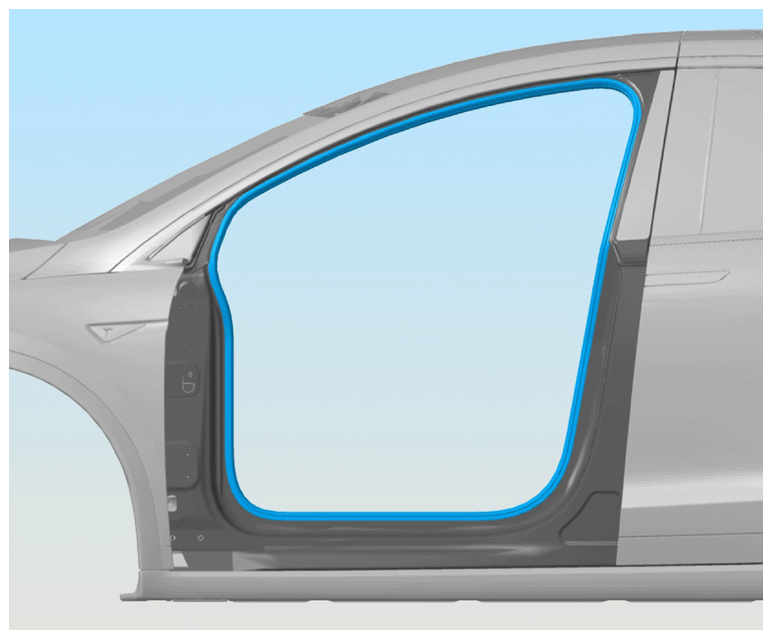

    NOTE: Components have been removed in this graphic to aid clarity.
    G15200263Courtesy of TESLA, INC.
  4. Remove the seal from the vehicle.
