Seal - Outer Belt - Rear Door - LH - Remove And Replace: Removal

  1. Open the LH front door.
  2. Lower the RH rear window fully.
  3. Partially open the LH rear door.

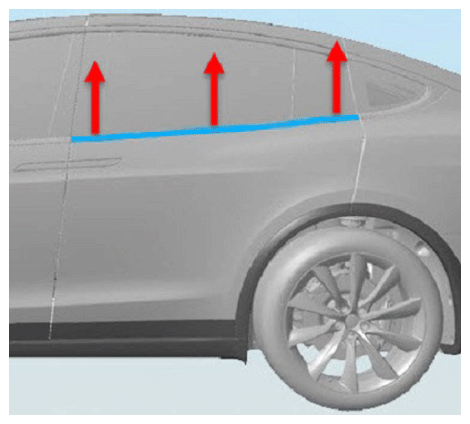

  4. Pull the brightwork and seal straight up to release it from the door.
    G15200262Courtesy of TESLA, INC.
  5. Remove the outer belt seal from the vehicle.
