Seal - Outer Belt - Front Door - LH - Remove And Replace: Remove

  1. Remove the LH front door trim panel. See PANEL - DOOR TRIM - FRONT - LH (REMOVE AND INSTALL) .

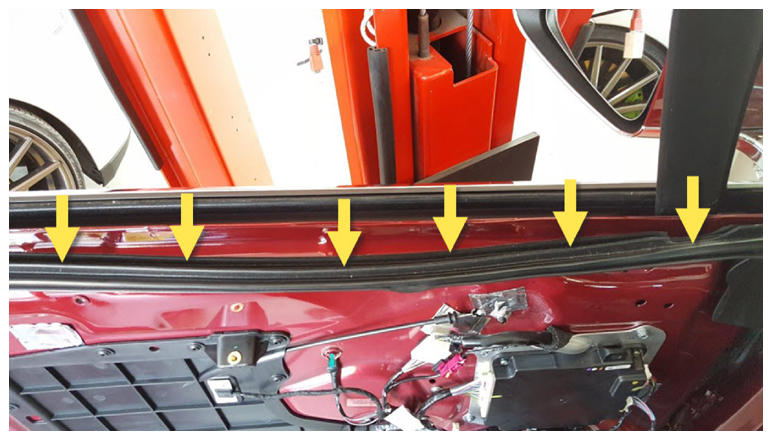

  2. Gently lift and pull the front door inner belt seal away from the door, but do not completely remove the seal.
    G15200259Courtesy of TESLA, INC.

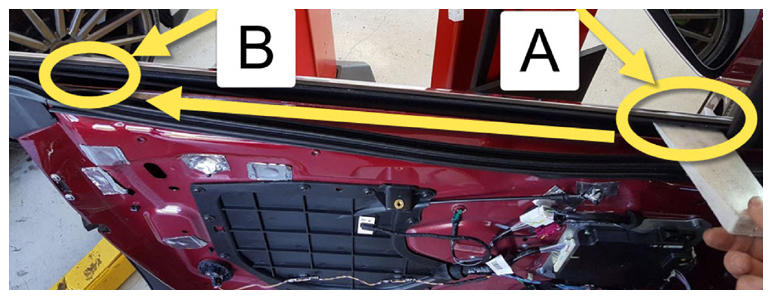

  3. Use a plastic trim tool to release the outer belt seal from the door while preventing the brightwork from dislodging.

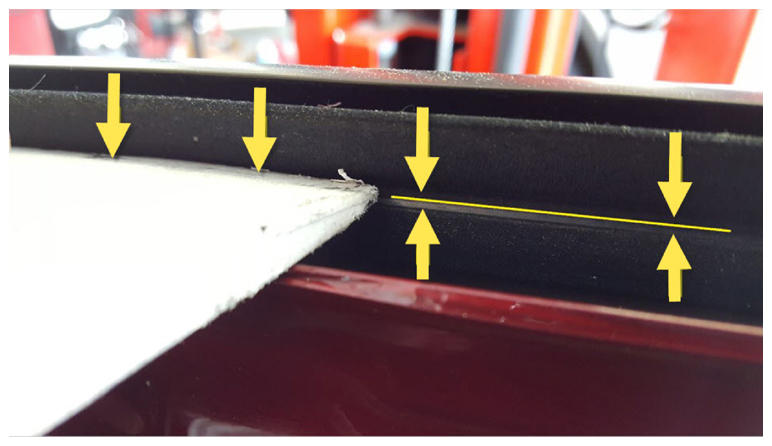

    NOTE: A gentle rolling of the outer belt seal towards the outer panel side of the door shell will be felt when releasing the seal from the door.
    G15200260Courtesy of TESLA, INC.
    G15200261Courtesy of TESLA, INC.
  4. Remove the outer belt seal from the vehicle.
