Seal - Inner Belt - Rear Door - LH - Remove And Replace: Removal

  1. Remove the LH rear door trim panel. See PANEL - DOOR TRIM - REAR - LH (REMOVE AND REPLACE) .

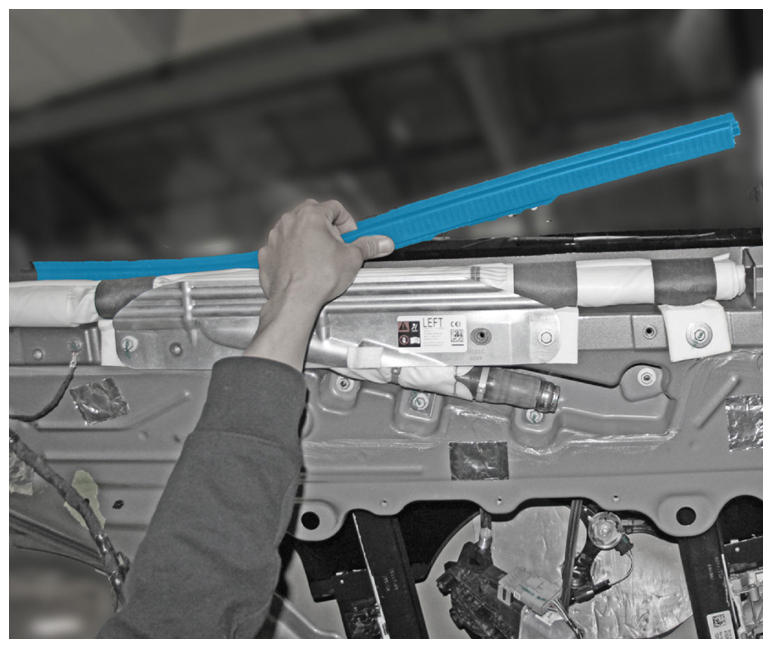

  2. Carefully pull up on the inner belt seal to release it from the door.
    CAUTION: Take care not to damage or disturb the 2nd row curtain air bag.
    G15200254Courtesy of TESLA, INC.
  3. Remove the inner belt seal from the vehicle.
