Remove And Replace

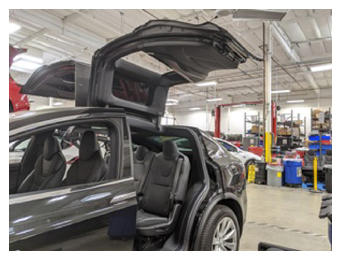

  1. Open LH rear door and lower the window
    NOTE: Ensure window is fully lowered
    G15200142Courtesy of TESLA, INC.

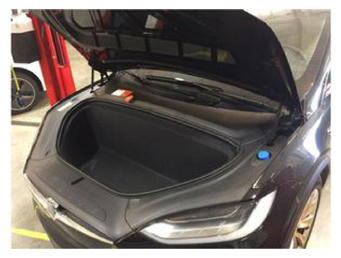

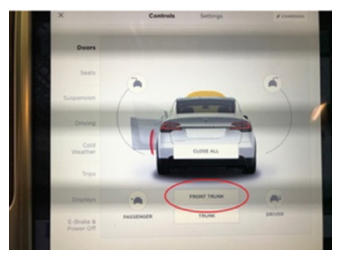

  2. Open hood
    NOTE: Using MCU touchscreen > Controls > Frunk Trunk
    G15200143Courtesy of TESLA, INC.
    G15200144Courtesy of TESLA, INC.

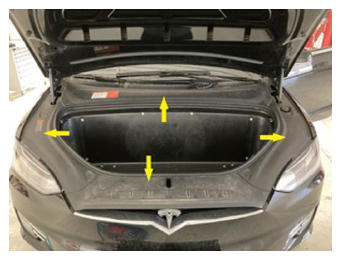

  3. Remove underhood aprons
    NOTE: 4x aprons
    G15200145Courtesy of TESLA, INC.

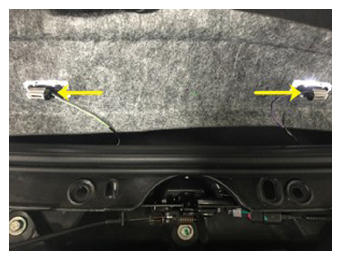

  4. Remove frunk carpet
    NOTE: 2x connectors
    G15200146Courtesy of TESLA, INC.
  5. Remove underhood storage unit
    NOTE: 10x bolts, 10 mm, 4 N.m, 10x bolts, 10 mm, 7 N.m
    Fig 1: Underhood Storage Unit Bolts With Torque Specification (1 Of 3)
    G15200147Courtesy of TESLA, INC.

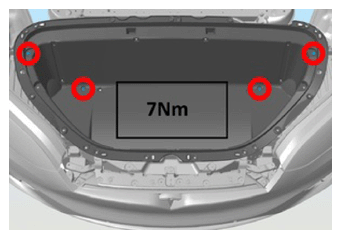

    Fig 2: Underhood Storage Unit Bolts With Torque Specification (2 Of 3)
    G15200148Courtesy of TESLA, INC.
    Fig 3: Underhood Storage Unit Bolts With Torque Specification (3 Of 3)
    G15200149Courtesy of TESLA, INC.

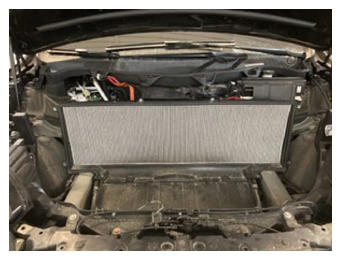

  6. Remove HEPA filter
    NOTE: Lift up from bottom and pull out
    G15200150Courtesy of TESLA, INC.

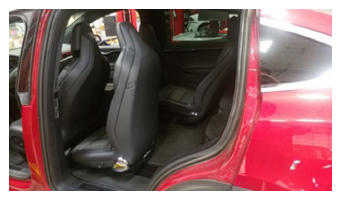

  7. Move LH 2nd row seat fully forward using easy entry mode
    G15200151Courtesy of TESLA, INC.

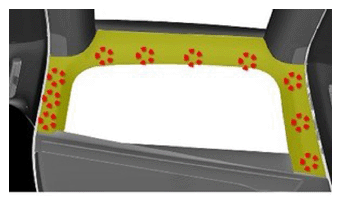

  8. Remove LH falcon door lower garnish
    NOTE: 9x V-clips, Replace any damaged or missing V-clips, Take care not to damage door trim panel during removal
    G15200152Courtesy of TESLA, INC.
    G15200153Courtesy of TESLA, INC.

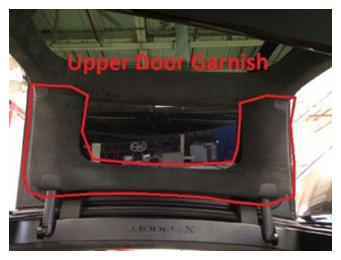

  9. Remove LH upper falcon door trim
    NOTE: 17x clips, 1x connector may be present on early production vehicles
    G15200154Courtesy of TESLA, INC.
    G15200155Courtesy of TESLA, INC.
  10. Remove LH upper outer falcon door rear trim
    NOTE: 5x bolts, T25, 2.5 N.m, 4.0 N.m, 1x harness clip, Fastener count may vary
    G15200156Courtesy of TESLA, INC.
  11. Remove LH upper outer falcon door front trim
    NOTE: 5x bolts, T25, 2.5 N.m, 4.0 N.m, 1x harness clip, Fastener count may vary
    G15200157Courtesy of TESLA, INC.
  12. Remove LH upper outer falcon door middle trim
    NOTE: 7x bolts, T25, 3.0 N.m, 4.0 N.m, Fastener count may vary
    G15200158Courtesy of TESLA, INC.
  13. Remove LH upper gap hider trim
    NOTE: 4x clips
    G15200159Courtesy of TESLA, INC.

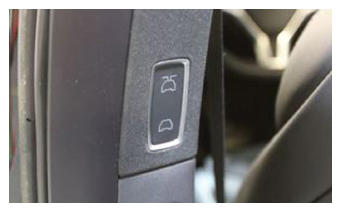

  14. Lower LH falcon door
    NOTE: May need to assist the door to close
    G15200160Courtesy of TESLA, INC.

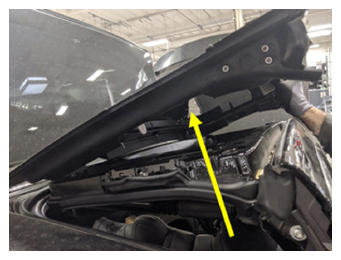

  15. Remove LH falcon door upper glass
    NOTE: 10x nuts, 10 mm, 6 N.m, Recommend assistance
    G15200161Courtesy of TESLA, INC.
    G15200162Courtesy of TESLA, INC.

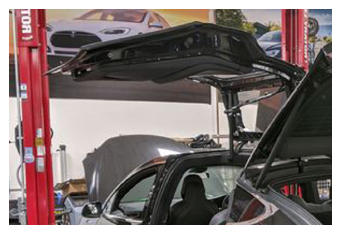

  16. Set LH Falcon door fully open
    G15200163Courtesy of TESLA, INC.

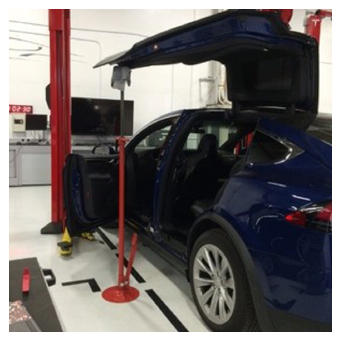

  17. Support the rear door
    NOTE: May need assist to open
    G15200164Courtesy of TESLA, INC.

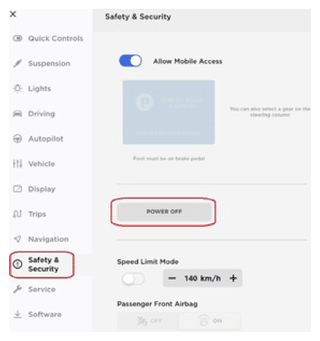

  18. Power down vehicle using MCU
    NOTE: Via Controls > Safety & Security > "Power off"
    G15200165Courtesy of TESLA, INC.

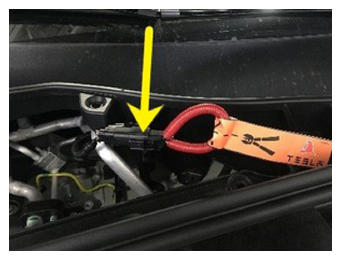

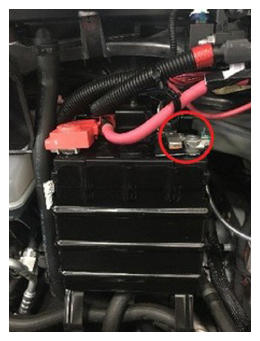

  19. Disconnect 12V negative terminal and First Responder Loop
    NOTE: 1x nut, 10 mm, 5 N.m, 1x connector, Wait at least 2 minutes before disconnecting modules or HV components
    G15200166Courtesy of TESLA, INC.
    G15200167Courtesy of TESLA, INC.
  20. Disconnect LH rear secondary strut
    NOTE: 1x connector, Black
    G15200168Courtesy of TESLA, INC.
  21. Disconnect LH rear primary strut
    NOTE: 1x connector, White
    G15200169Courtesy of TESLA, INC.

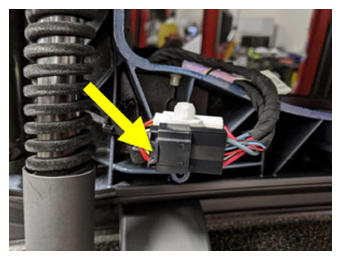

  22. Disconnect LH front secondary strut
    NOTE: 1x connector, Black
    G15200170Courtesy of TESLA, INC.

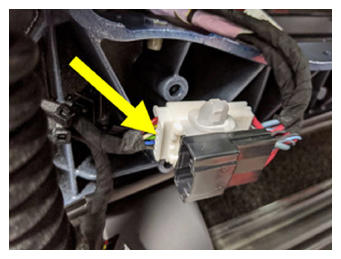

  23. Disconnect LH front primary strut
    NOTE: 1x connector, White
    G15200171Courtesy of TESLA, INC.
  24. Remove the rear primary strut from upper falcon door
    NOTE: 1x C-clip, 1x harness clip
    G15200172Courtesy of TESLA, INC.
  25. Remove the front primary strut from upper falcon door
    NOTE: 1x C-clip, 1x harness clip
    G15200173Courtesy of TESLA, INC.

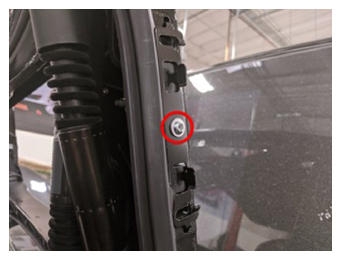

  26. Remove the front bump stop
    NOTE: 2x bolts, 10 mm, 8 N.m, 1x bolt, T30, 5 N.m, Mark or remember the position of the bump stop to aid the installation process
    G15200174Courtesy of TESLA, INC.
    G15200175Courtesy of TESLA, INC.

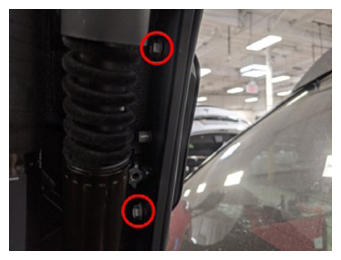

  27. Remove the rear bump stop
    NOTE: 2x bolts, 10 mm, 8 N.m, 1x bolt, T30, 5 N.m, Mark or remember the position of the bump stop to aid the installation process
    G15200176Courtesy of TESLA, INC.
    G15200177Courtesy of TESLA, INC.

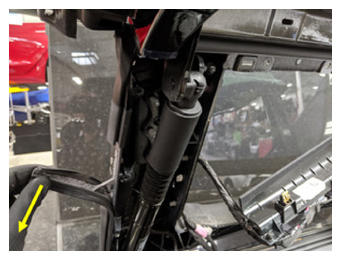

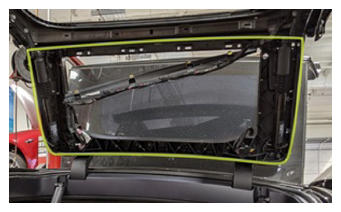

  28. Remove the upper falcon door NVH seal
    NOTE: Make a cut in the seal and remove from the perimeter of the door, Try to remove as much double sided tape with the seal as possible
    G15200178Courtesy of TESLA, INC.
    G15200179Courtesy of TESLA, INC.

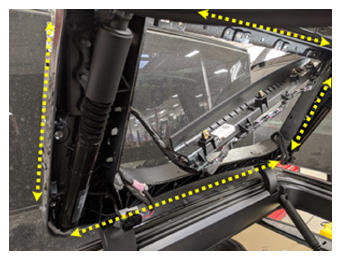

  29. Remove any double side tape or adhesive from upper falcon door
    NOTE: Roll the residual adhesive manually for best results
    G15200180Courtesy of TESLA, INC.

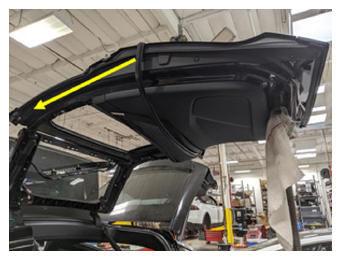

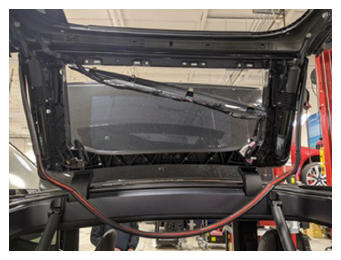

  30. Position NVH seal for installation
    NOTE: Slide seal over the lower falcon door assembly to the cavity between upper and lower falcon door
    G15200181Courtesy of TESLA, INC.
    G15200182Courtesy of TESLA, INC.

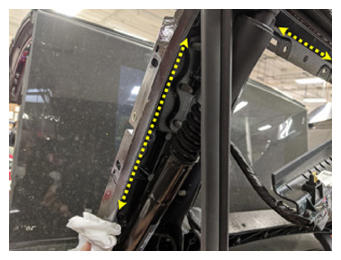

  31. Use IPA to clean NVH seal area of the upper falcon door
    NOTE: Allow 1 minute for IPA to dry
    G15200183Courtesy of TESLA, INC.

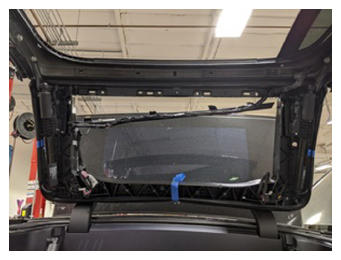

  32. Place falcon door NVH seal around perimeter of upper door frame and tape in position
    G15200184Courtesy of TESLA, INC.

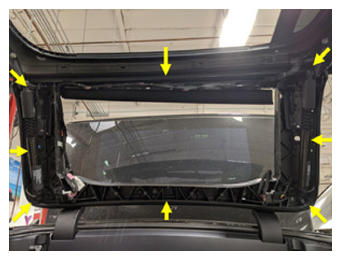

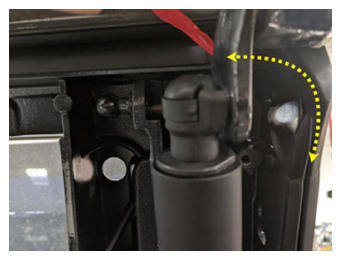

  33. Install new upper falcon door NVH seal to upper falcon door
    NOTE: 8x Double-sided tape sections, Seat inner corners first and finish on an edge, Press firmly to wet-out seal, Remove blue tape as needed
    G15200185Courtesy of TESLA, INC.
    G15200186Courtesy of TESLA, INC.

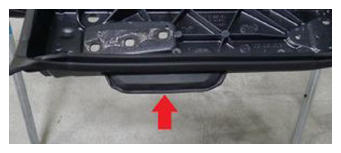

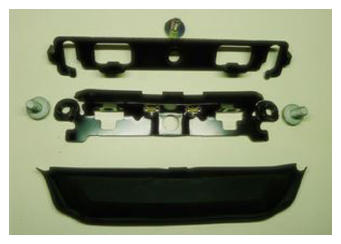

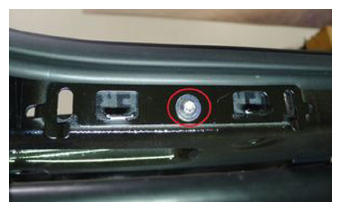

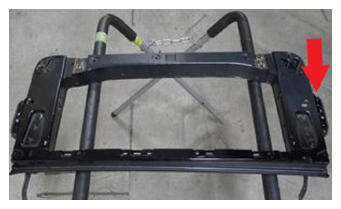

  34. Install LH front upper falcon door bumpstop assembly
    NOTE: 2x bolts, 10 mm, 8 N.m, 1x screw, T30, 5 N.m
    G15200187Courtesy of TESLA, INC.
    G15200188Courtesy of TESLA, INC.
    G15200189Courtesy of TESLA, INC.
    G15200190Courtesy of TESLA, INC.
    G15200191Courtesy of TESLA, INC.
    G15200192Courtesy of TESLA, INC.

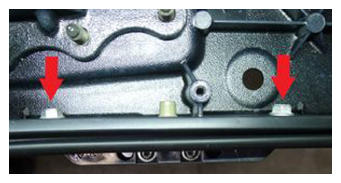

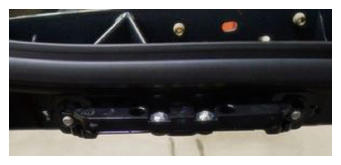

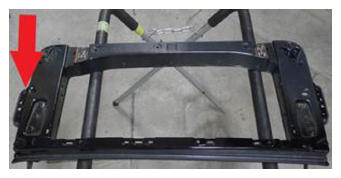

  35. Install LH rear upper falcon door bumpstop assembly
    NOTE: 2x bolts, 10 mm, 8 N.m, 1x screw, T30, 5 N.m
    G15200193Courtesy of TESLA, INC.
    G15200194Courtesy of TESLA, INC.
    G15200195Courtesy of TESLA, INC.
    G15200196Courtesy of TESLA, INC.
    G15200197Courtesy of TESLA, INC.
    G15200198Courtesy of TESLA, INC.

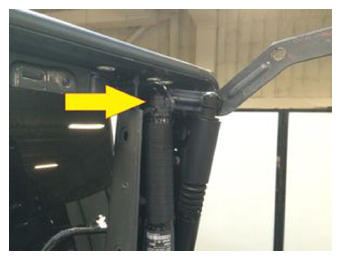

  36. Install the rear primary strut to upper falcon door
    NOTE: 1x C-clip, 1x harness clip, Door may need to be lifted to align strut, Recommend assistance
    G15200199Courtesy of TESLA, INC.

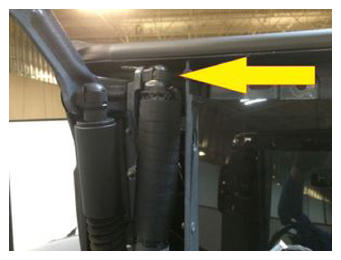

  37. Install the front primary strut to upper falcon door
    NOTE: 1x C-clip, 1x harness clip, Door may need to be lifted to align strut, Recommend assistance
    G15200200Courtesy of TESLA, INC.
  38. Connect LH front primary strut
    NOTE: 1x connector, White
    G15200201Courtesy of TESLA, INC.
  39. Connect LH front secondary strut
    NOTE: 1x connector, Black
    G15200202Courtesy of TESLA, INC.

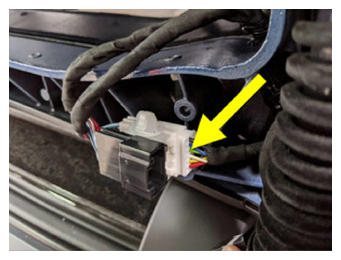

  40. Connect LH rear primary strut
    NOTE: 1x connector, White
    G15200203Courtesy of TESLA, INC.

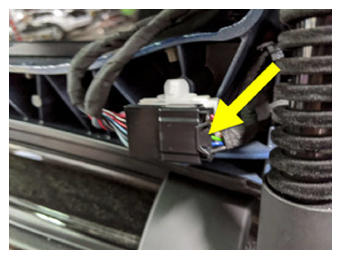

  41. Connect LH rear secondary strut
    NOTE: 1x connector, Black
    G15200204Courtesy of TESLA, INC.
  42. Remove door support stand
    G15200205Courtesy of TESLA, INC.

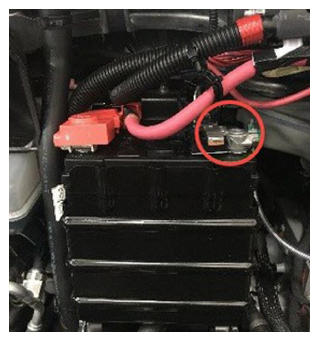

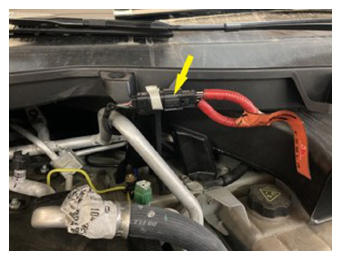

  43. Connect first responder loop and then 12V negative terminal
    NOTE: 1x connector, 1x nut, 10 mm, 5 N.m
    G15200206Courtesy of TESLA, INC.
    G15200207Courtesy of TESLA, INC.

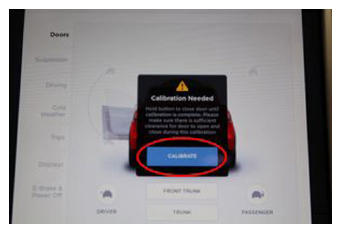

  44. Calibrate falcon doors using MCU
    NOTE: Required after 12V and FRL disconnect
    G15200208Courtesy of TESLA, INC.

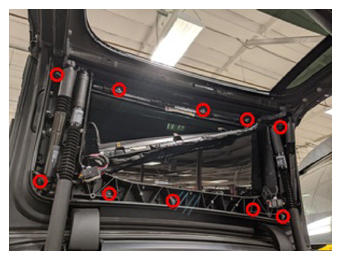

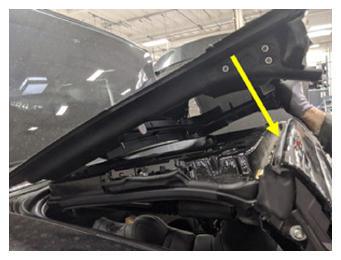

  45. Install LH falcon door upper glass
    NOTE: 10x nuts, 10 mm, 6 N.m, Recommend assistance
    G15200209Courtesy of TESLA, INC.
    G15200210Courtesy of TESLA, INC.

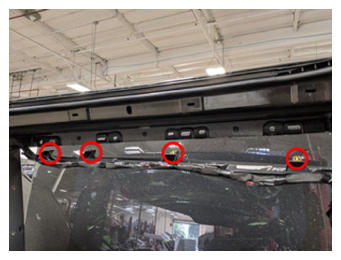

  46. Install LH upper gap hider trim
    NOTE: 4x clips
    G15200211Courtesy of TESLA, INC.
  47. Install LH upper outer falcon door middle trim
    NOTE: 7x bolts, T25, 3.0 N.m, 4.0 N.m, Fastener count may vary
    G15200212Courtesy of TESLA, INC.
    Fig 4: Upper Outer Falcon Door Middle Trim Bolts With Torque Specification (1 Of 2)
    G15200213Courtesy of TESLA, INC.

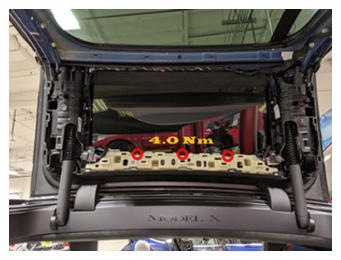

    Fig 5: Upper Outer Falcon Door Middle Trim Bolts With Torque Specification (2 Of 2)
    G15200214Courtesy of TESLA, INC.

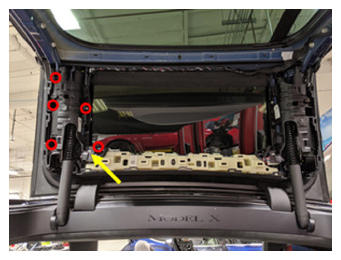

  48. Install LH upper outer falcon door front trim
    NOTE: 5x bolts, T25, 2.5 N.m, 4.0 N.m, 1x harness clip, Fastener count may vary
    G15200215Courtesy of TESLA, INC.
    Fig 6: LH Upper Outer Falcon Door Front Trim Bolts With Torque Specification (1 Of 2)
    G15200216Courtesy of TESLA, INC.

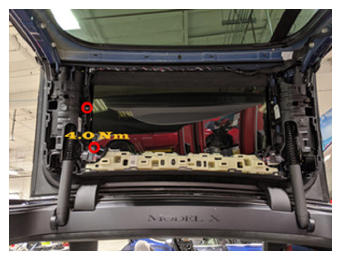

    Fig 7: LH Upper Outer Falcon Door Front Trim Bolts With Torque Specification (2 Of 2)
    G15200217Courtesy of TESLA, INC.

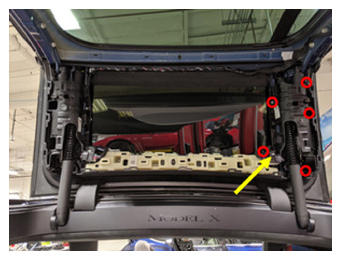

  49. Install LH upper outer falcon door rear trim
    NOTE: 5x bolts, T25, 2.5 N.m, 4.0 N.m, 1x harness clip, Fastener count may vary
    G15200218Courtesy of TESLA, INC.
    Fig 8: LH Upper Outer Falcon Door Rear Trim Bolts With Torque Specification (1 Of 2)
    G15200219Courtesy of TESLA, INC.
    Fig 9: LH Upper Outer Falcon Door Rear Trim Bolts With Torque Specification (2 Of 2)
    G15200220Courtesy of TESLA, INC.

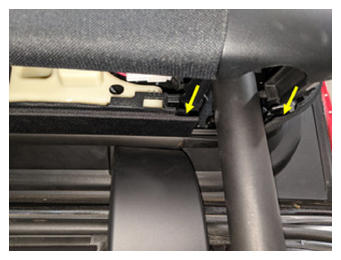

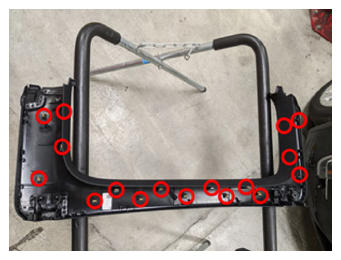

  50. Install LH upper falcon door trim
    NOTE: 17x clips, Align strut cover first, 1x connector may be present on early production vehicles
    G15200221Courtesy of TESLA, INC.
    G15200222Courtesy of TESLA, INC.

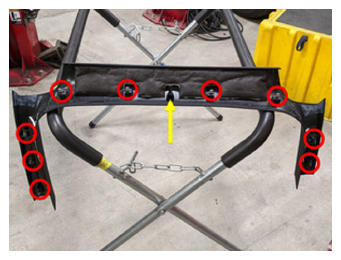

  51. Install LH falcon door lower garnish
    NOTE: 9x V-clips, 1x guide tab
    G15200223Courtesy of TESLA, INC.

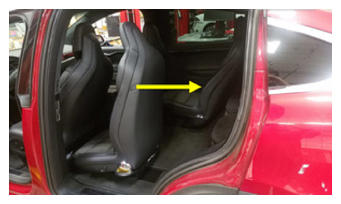

  52. Reposition the LH seat to original position
    G15200224Courtesy of TESLA, INC.

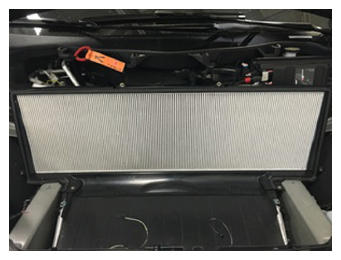

  53. Install HEPA filter housing
    G15200225Courtesy of TESLA, INC.
  54. Install underhood storage unit
    NOTE: 10x bolts, 10 mm, 4 N.m, 10x bolts, 10 mm, 7 N.m

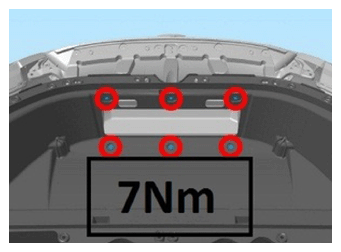

    Fig 10: Underhood Storage Unit Bolts With Torque Specification (1 Of 3)
    G15200226Courtesy of TESLA, INC.
    Fig 11: Underhood Storage Unit Bolts With Torque Specification (2 Of 3)
    G15200227Courtesy of TESLA, INC.

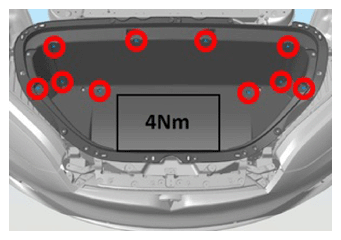

    Fig 12: Underhood Storage Unit Bolts With Torque Specification (3 Of 3)
    G15200228Courtesy of TESLA, INC.
  55. Install frunk carpet
    NOTE: 2x connectors
    G15200229Courtesy of TESLA, INC.
  56. Install under hood aprons
    NOTE: 4x aprons
    G15200230Courtesy of TESLA, INC.
  57. Close hood
    G15200231Courtesy of TESLA, INC.

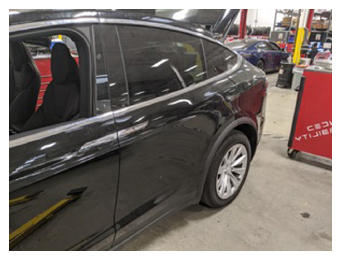

  58. Close LH rear door and window
    G15200232Courtesy of TESLA, INC.
