Striker - Liftgate - Remove And Replace: Remove

  1. Remove the rear trunk trim sill panel Trim - Rear Trunk - Sill (Remove And Replace) .

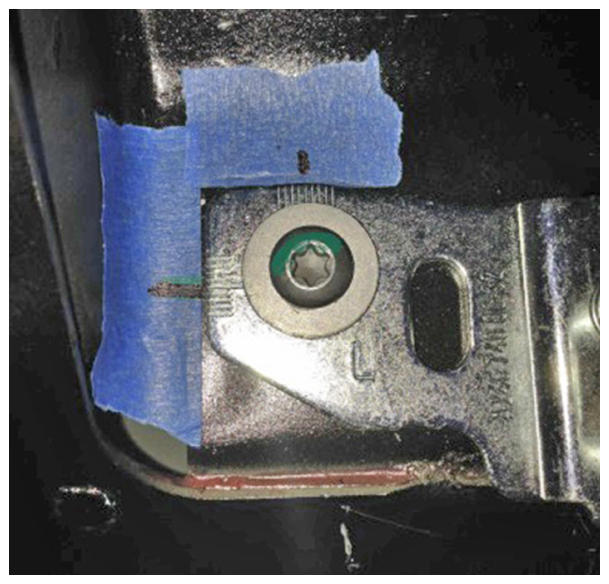

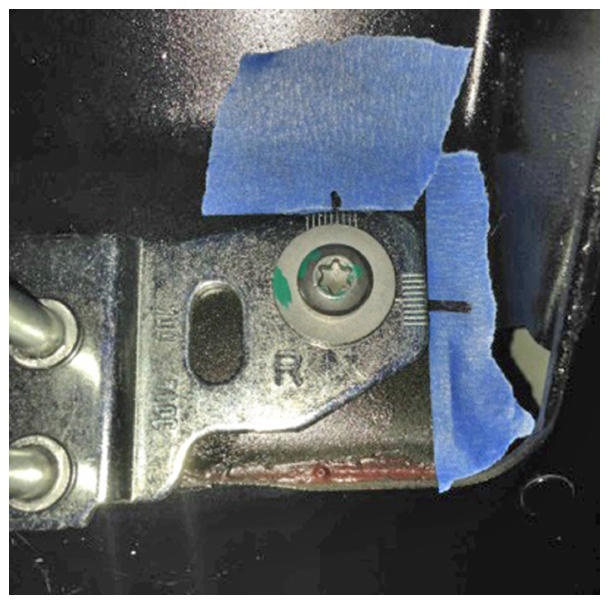

  2. Use tape to mark the position of both corners of the striker. Use a marker to note the position of the bolts.
    G15200059Courtesy of TESLA, INC.
    G15200060Courtesy of TESLA, INC.
  3. Remove the bolts (x2) that secure the striker to the body (torque 10 N.m).
  4. Remove the striker from the vehicle.
