Latch - Hood - Remove And Replace: Removal

  1. Remove the front underhood apron Assembly - Underhood Apron - Front (Remove And Replace) .

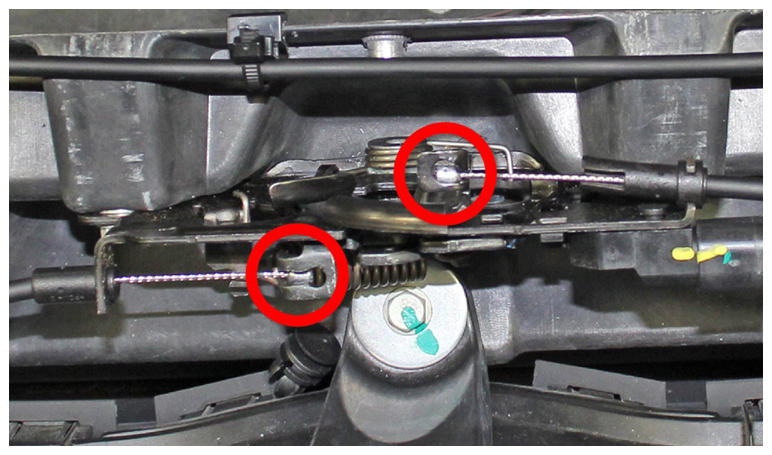

  2. Release both hood latch cables (x2) from the latch assembly.
    G15200036Courtesy of TESLA, INC.

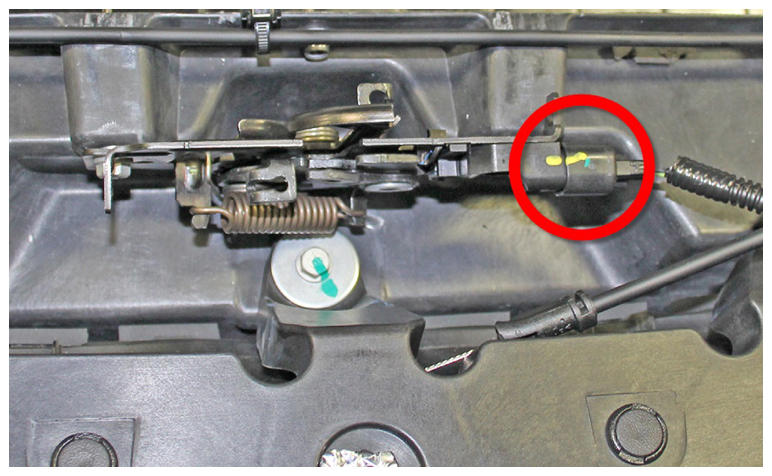

  3. Disconnect the harness connector from the LH side of the latch assembly.
    G15200037Courtesy of TESLA, INC.

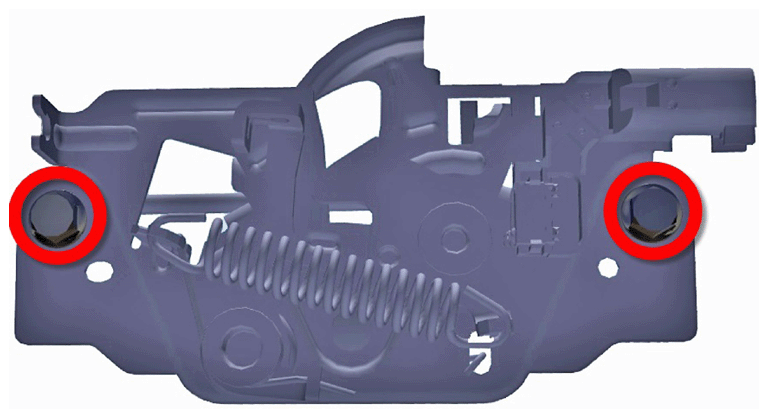

  4. Remove the bolts (x2) that secure the latch to the front end module (FEM) (torque 10 N.m).
    G15200038Courtesy of TESLA, INC.
  5. Remove the latch assembly from the vehicle.
