Cable - Latch - Hood - Primary - Remove And Replace: Removal
- Remove the front underhood storage unit Underhood Storage Unit (Remove And Replace) .

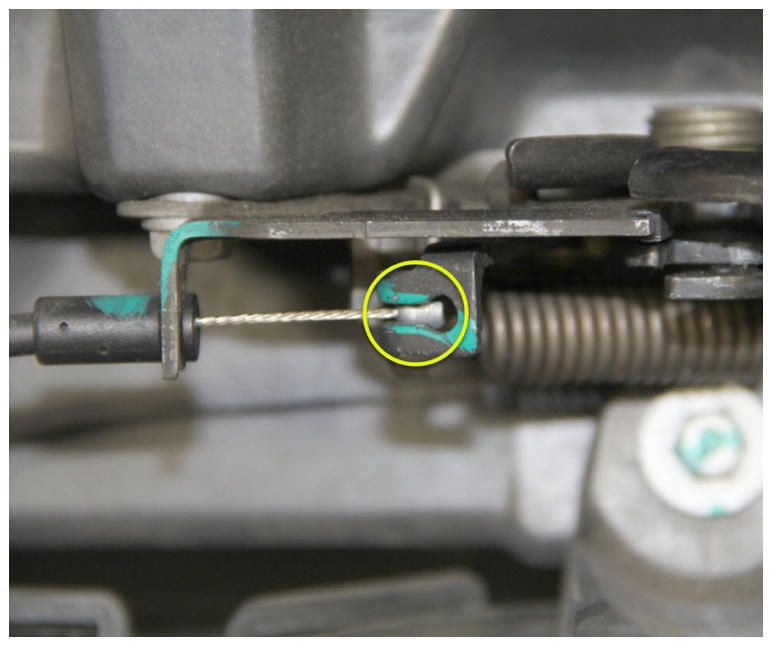

- Release the primary hood latch cable end from the latch.

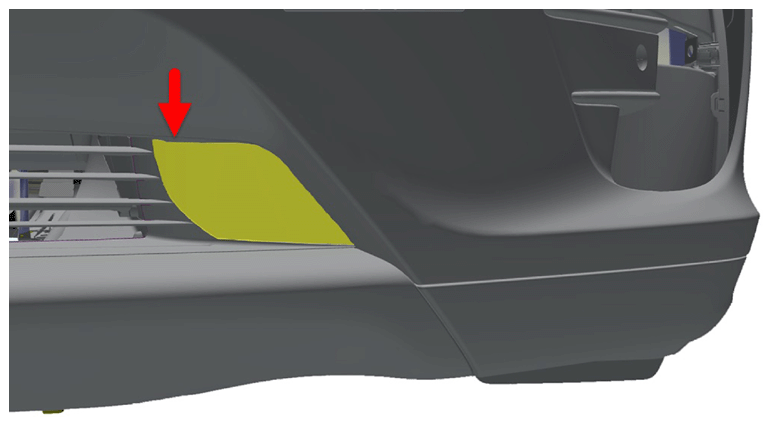

- Use a trim tool to remove the tow hook cover.NOTE: Insert the trim tool into the notch at the top right portion of the tow hook cover.

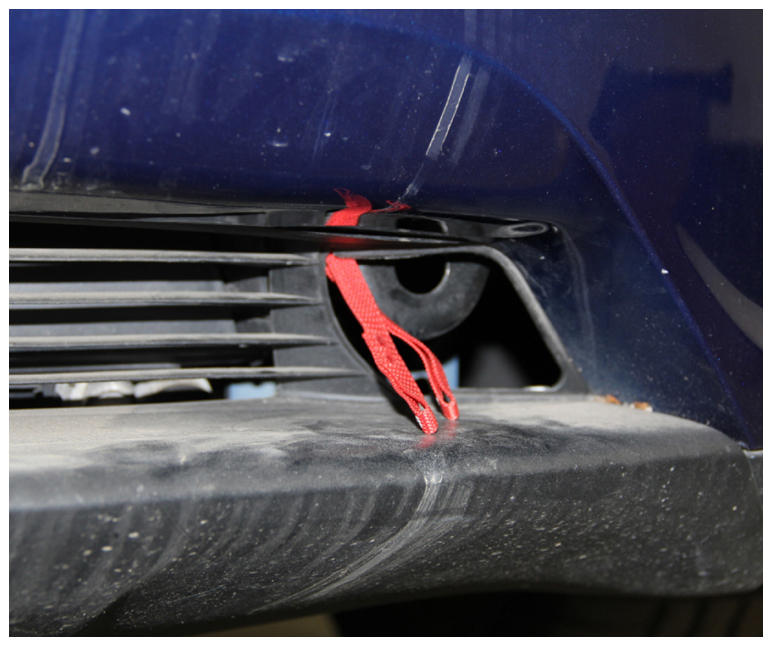

- Release the straps from the tow hook cover and move them through the tow hook opening.

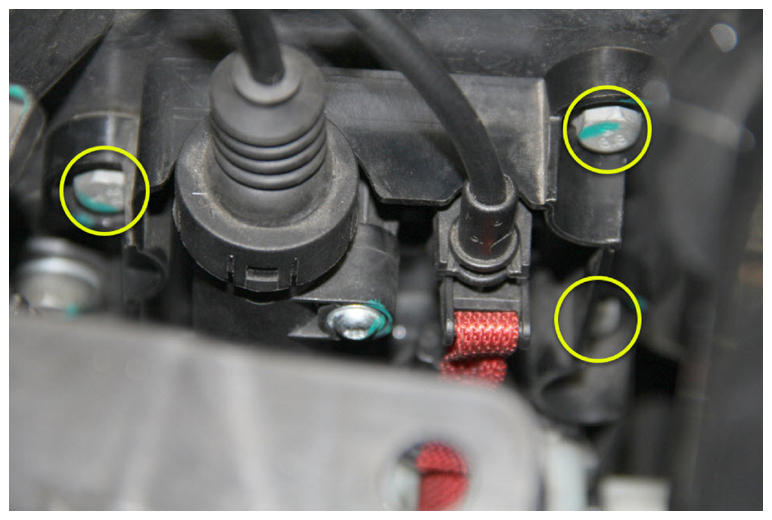

- Remove the bolts (x3) that secure the actuator assembly bracket to the front end module (torque 10 N.m).

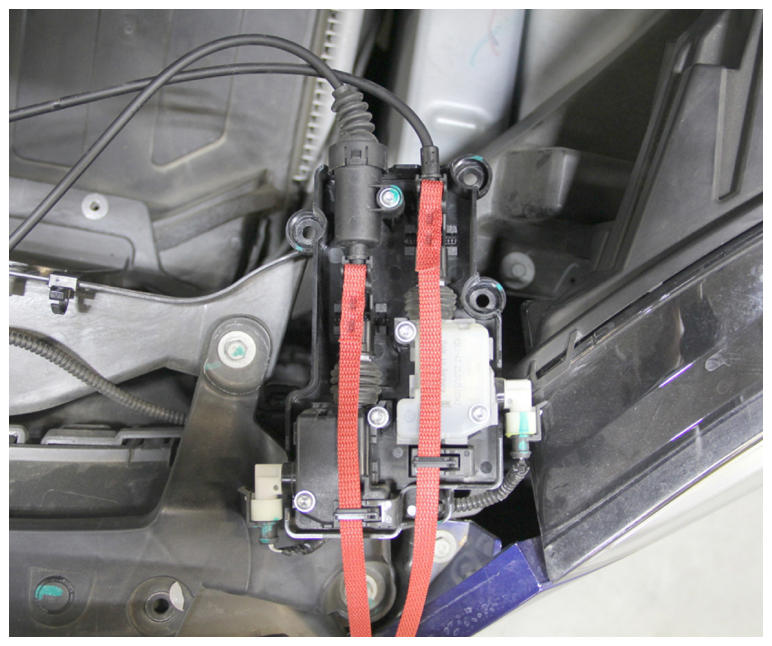

- Lift the actuator assembly bracket into a working position.

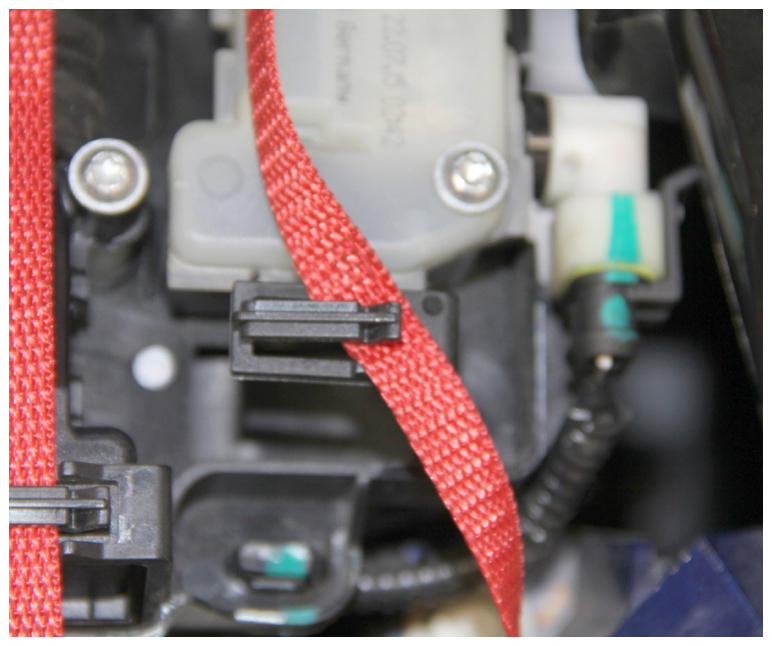

- Separate the manual release strap from the primary actuator assembly bracket retainer.

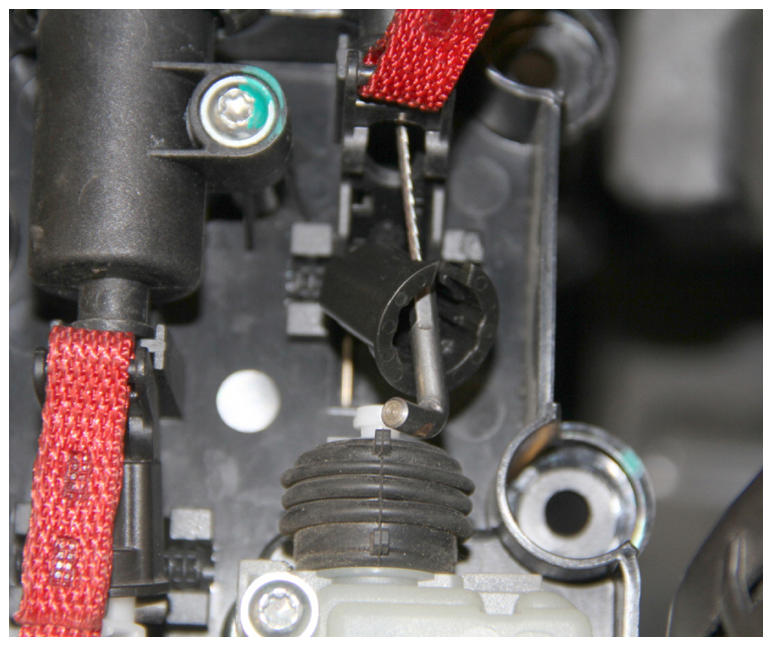

- Slide the black cap from the primary actuator onto the primary cable.

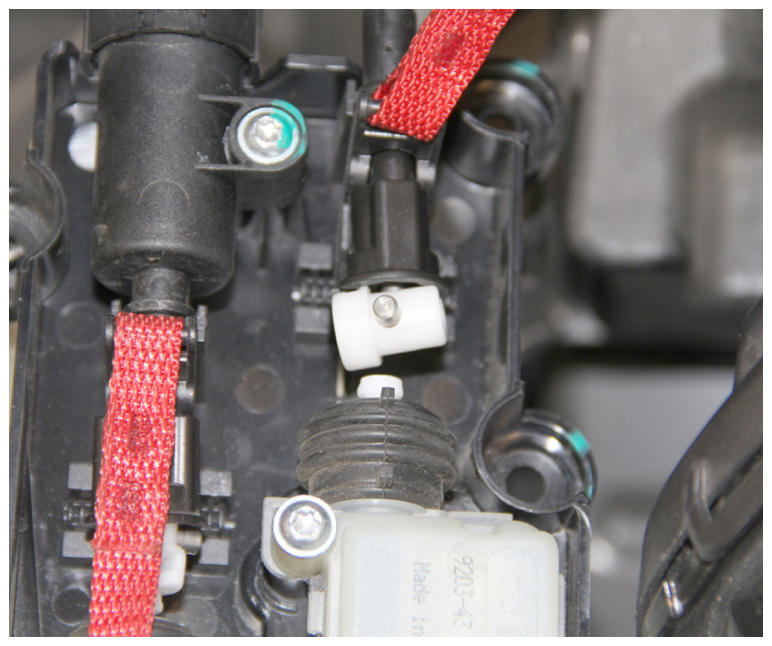

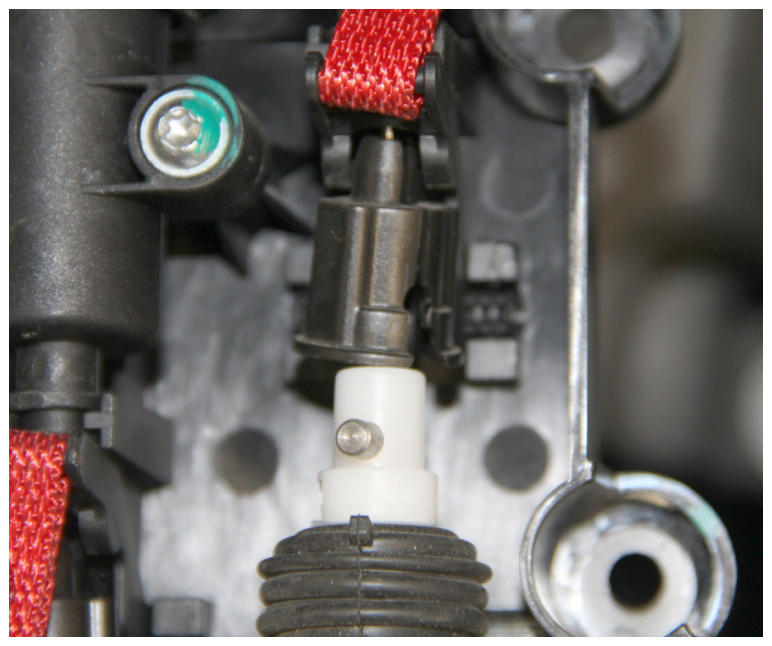

- Release the clip that secures the actuator clevis to the primary actuator, and then slide the clevis off of the actuator.

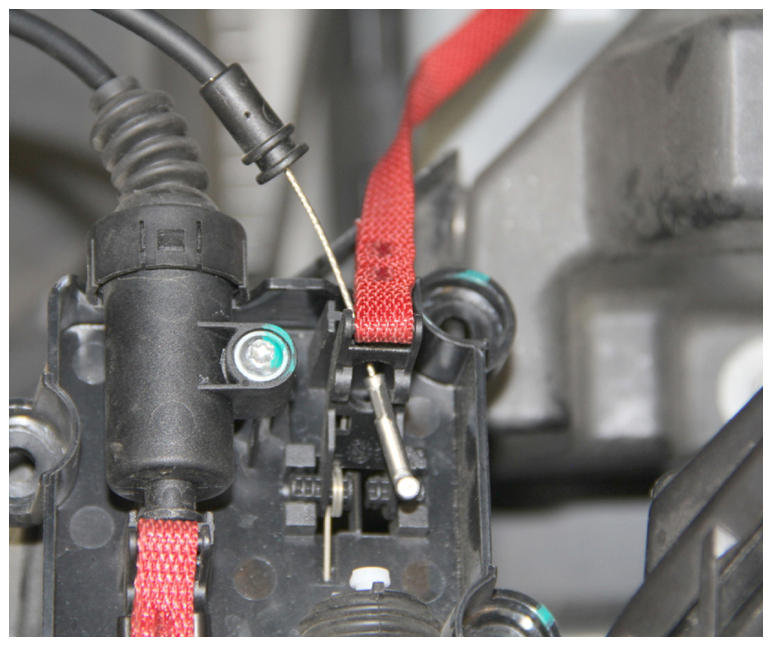

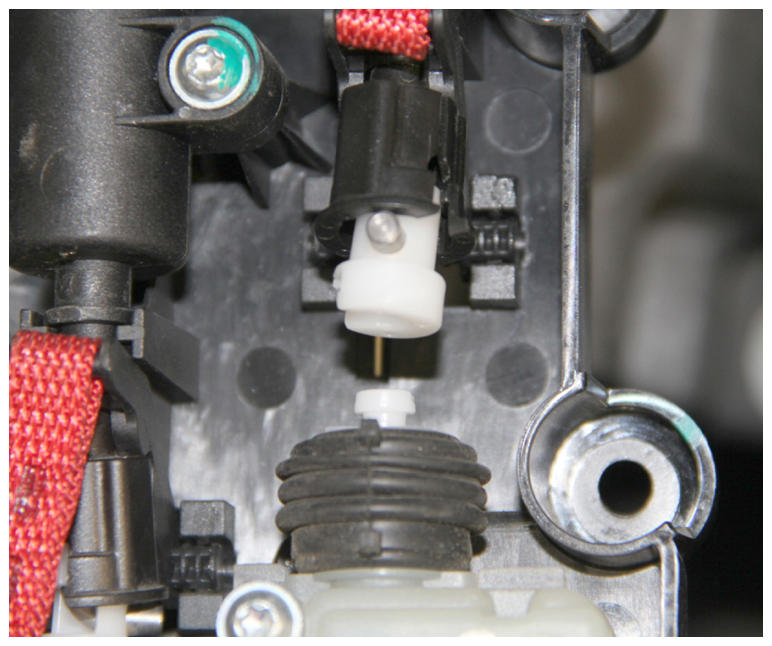

- Rotate the actuator clevis 90 degrees, and then slide the clevis off of the cable end.
- Move the primary cable through the slit in the side of the black cap, and remove the cap from the vehicle.
- Release the primary cable from the actuator assembly bracket, and then pass the end of the cable through the manual release lever.

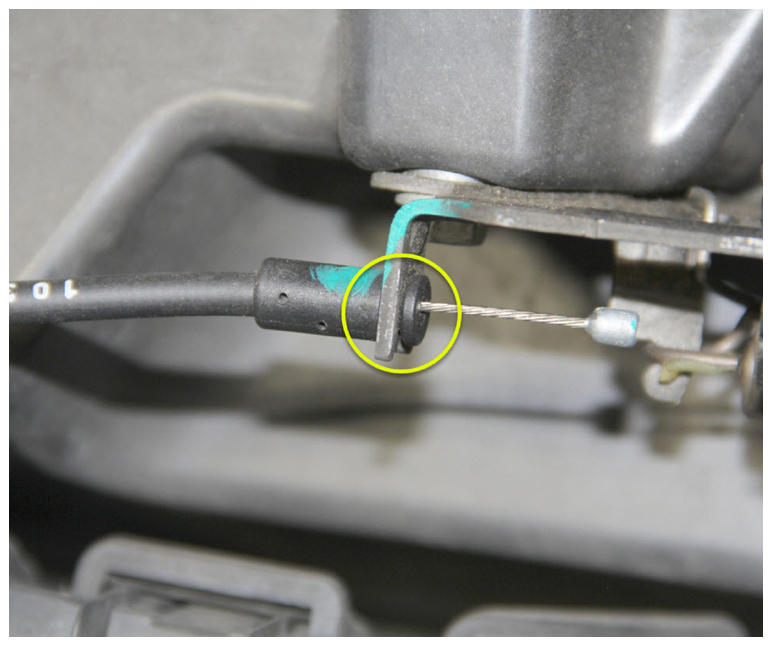

- Release the clip that secures the primary cable to the latch bracket and remove the cable from the bracket.

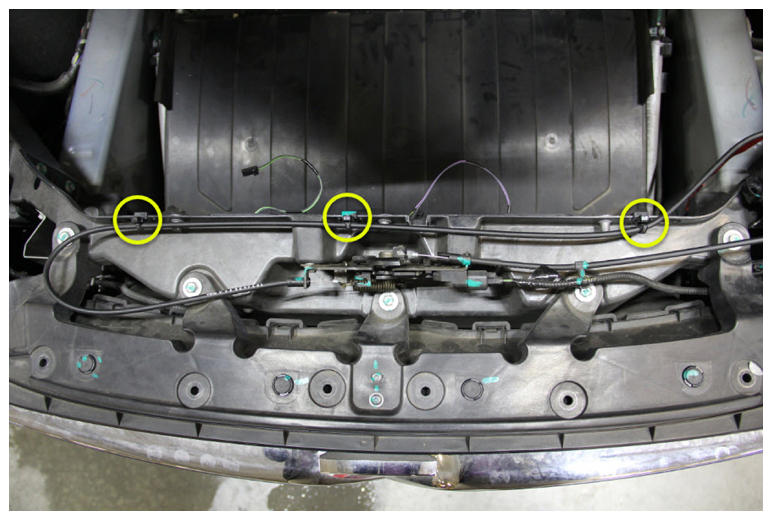

- Release the edge clips (x3) that secure the primary cable to the front end module, and then remove the cable from the vehicle.CAUTION: Replace any broken clips.
