Switch - Rear Door - B-Pillar - LH - Remove And Replace: Removal
- Release the upper B-pillar trim panel. See TRIM - B-PILLAR - UPPER - LH (REMOVE AND REPLACE)
.

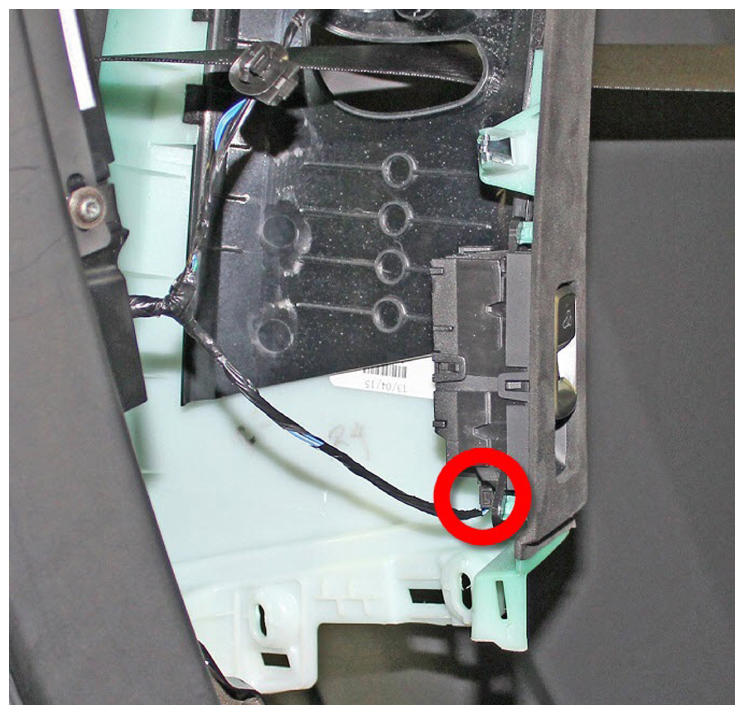

- Disconnect the electrical connector from the bottom of the rear door switch.
 Courtesy of TESLA, INC.
|

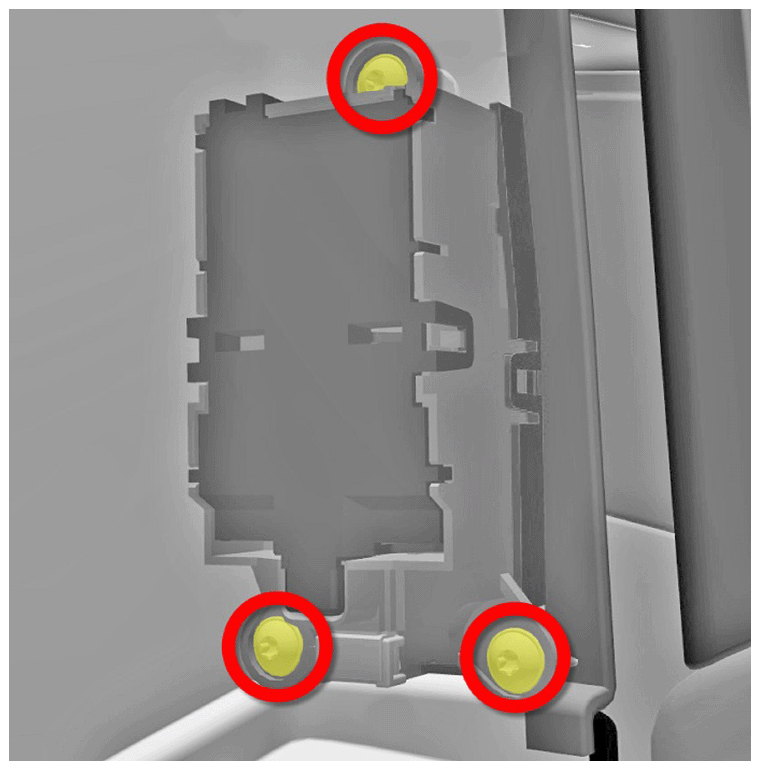

- Remove the screws (x3) that attach the rear door switch to the upper B-pillar trim panel (torque 2 N.m).
 Courtesy of TESLA, INC.
|
- Release the rear door switch from the retaining clips on the upper B-pillar trim panel.
- Remove the rear door switch from the vehicle.
