Strut - Rear Door - Primary - LH - Remove And Replace: Removal

  1. Apply protective tape onto the racetrack trim to prevent damage.
  2. Remove the upper door trim bracket:
  3. Support the rear door.
    WARNING: Ensure that the door is fully supported before continuing. Either have an assistant support the full weight of the door or use a pole jack.
  4. Disconnect the primary strut harness, then release the 2 clips that secure the harness to the door.

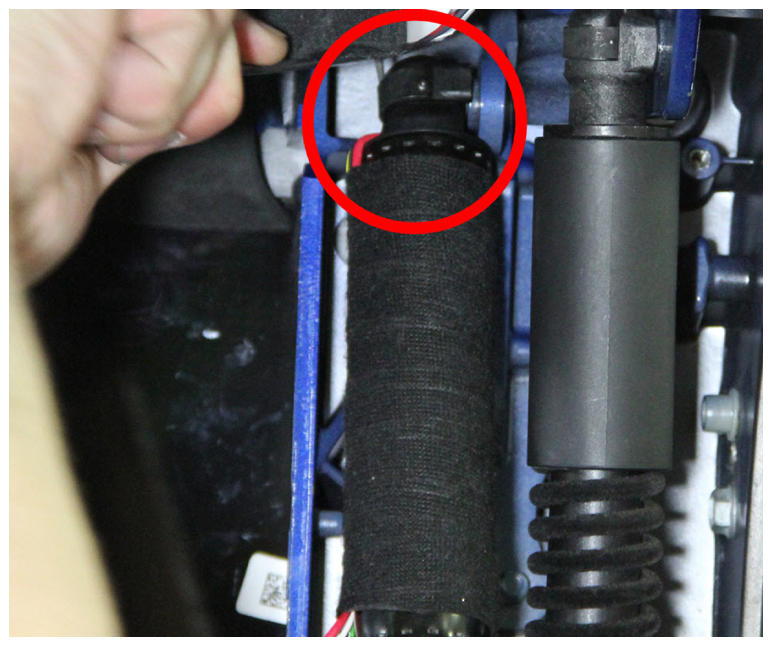

  5. Release the strut from the door.
    G15199924Courtesy of TESLA, INC.

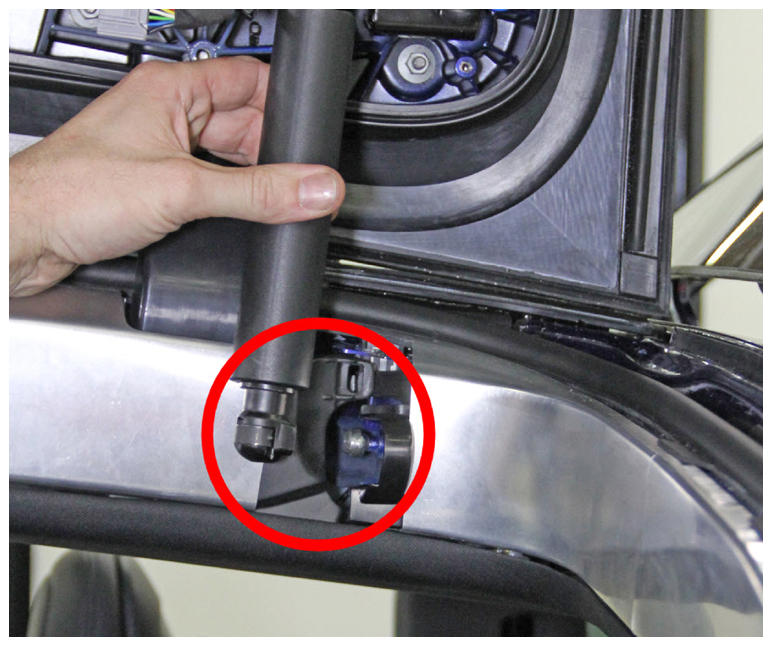

  6. Release the strut from the body.
    G15199925Courtesy of TESLA, INC.
WARNING: Continue to support the door until the new strut is installed.
