Rear Door Hinge - Secondary - Front - LH - Remove And Replace: Removal

Remove the front and rear LH primary rear door struts STRUT - REAR DOOR - PRIMARY - LH (REMOVE AND REPLACE) .
Remove the front and rear LH secondary rear door struts STRUT - REAR DOOR - SECONDARY - LH (REMOVE AND REPLACE) .
Remove the LH rear upper door glass DOOR GLASS - REAR - UPPER - LH (REMOVE AND REPLACE) .
Mark the location of the LH front secondary hinge on the upper door and lower door.
NOTE: This helps to install the new secondary hinge into the same place.

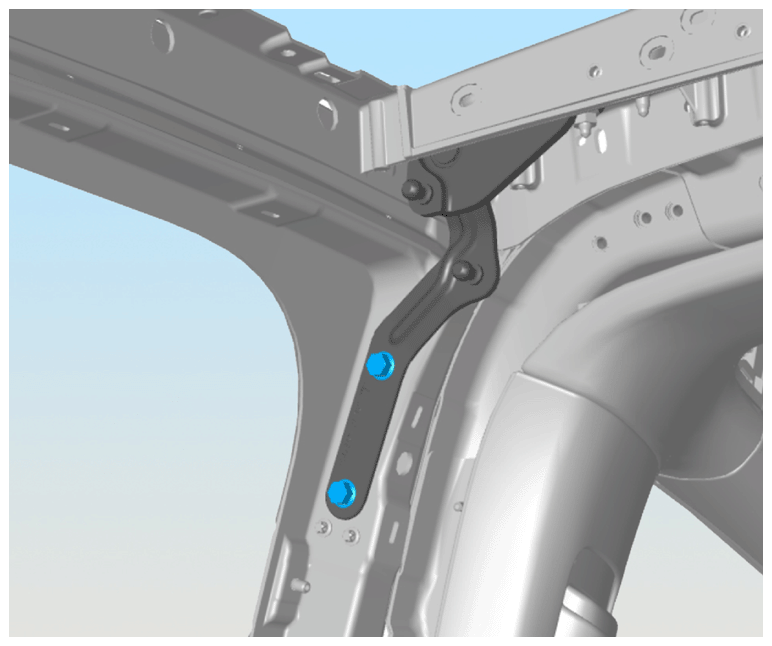

Remove the bolts that secure the secondary hinge to the lower door (torque 22 N.m).

Courtesy of TESLA, INC.

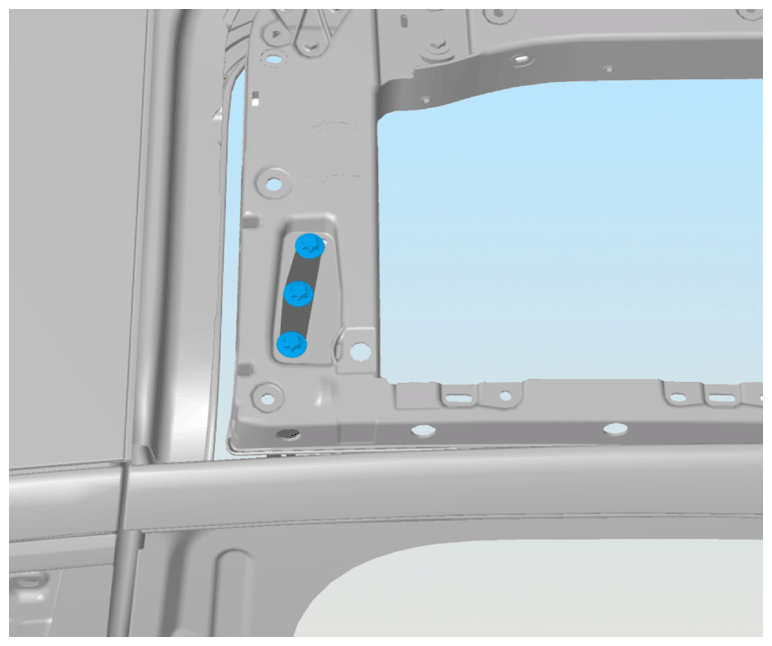

Remove the bolts that secure the hinge to the upper door (torque 30 N.m).

Courtesy of TESLA, INC.

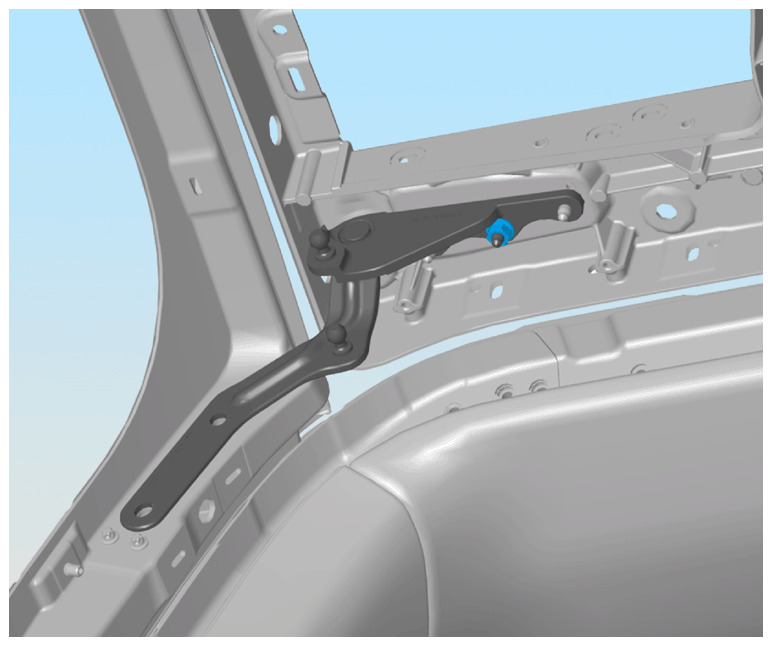

NOTE: The center bolt might be secured with a nut.

Courtesy of TESLA, INC.
Remove the hinge from the vehicle.
