Hinge - Door - Front - Upper - LH - Remove and Replace: Removal

  1. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  2. Remove the HEPA filter. See FILTER - HEPA (REMOVE AND REPLACE) .
  3. Disconnect 12V power. See DISCONNECT 12V POWER .

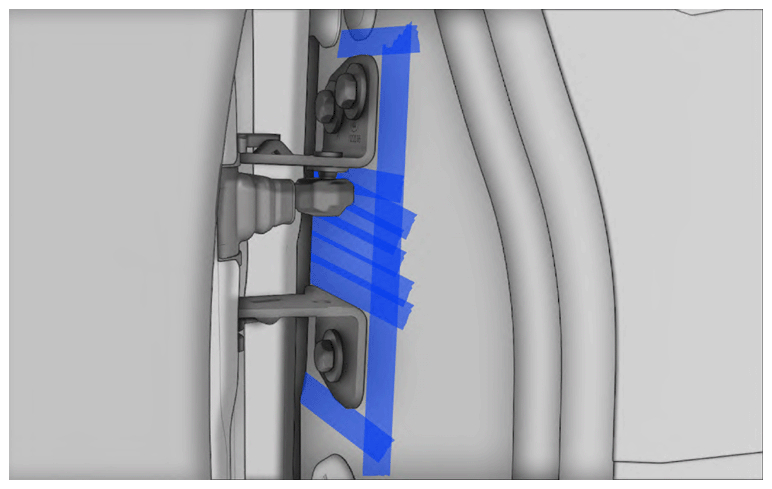

  4. Apply tape to the door and body to the mark the location of the LH upper door hinge to aid during installation.
    G15199887Courtesy of TESLA, INC.
    G15199888Courtesy of TESLA, INC.

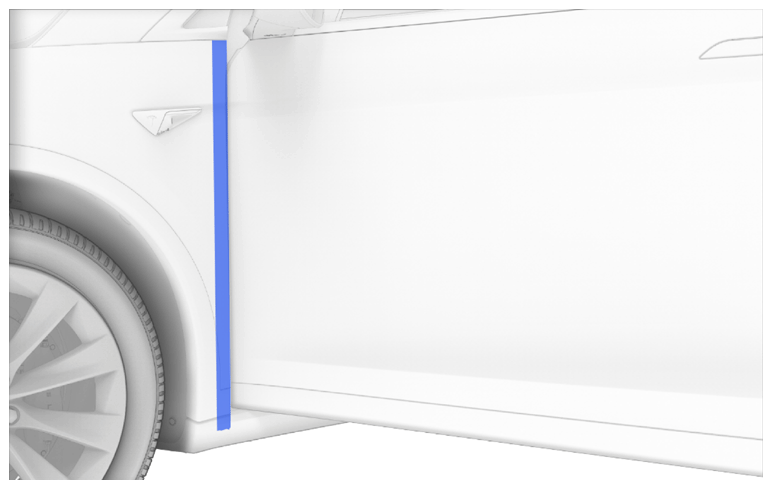

  5. Apply tape to the rear part of the LH front fender.
    G15199889Courtesy of TESLA, INC.

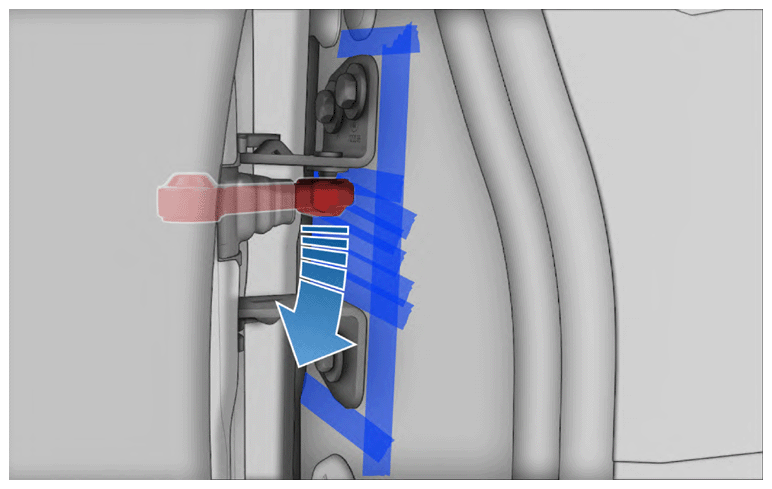

  6. Remove the LH front door drive unit arm from the door hinge.
    G15199890Courtesy of TESLA, INC.

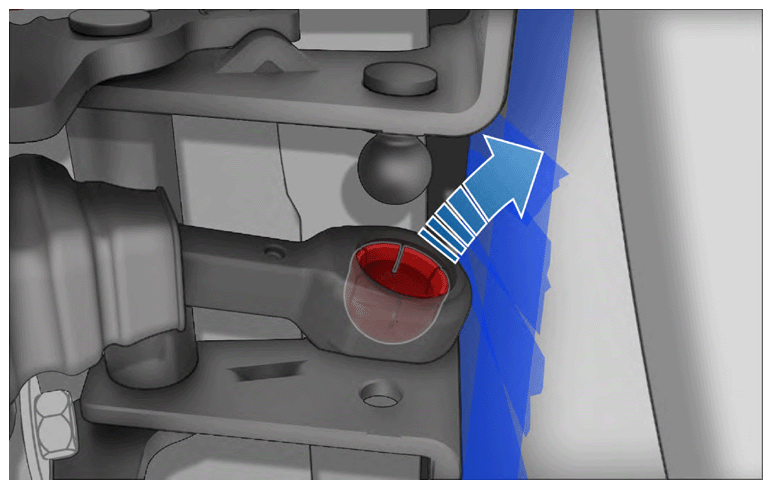

  7. Remove the ball cap from the LH front door drive unit arm.
    G15199891Courtesy of TESLA, INC.

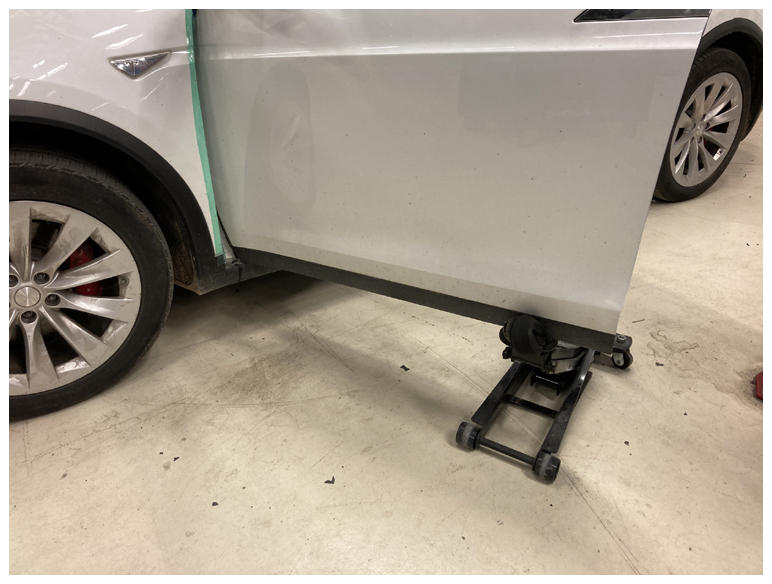

  8. Support the LH front door with a floor jack.
    CAUTION: Put a soft object in between the floor jack's saddle and the door to prevent damage to the paint.
    G15199892Courtesy of TESLA, INC.

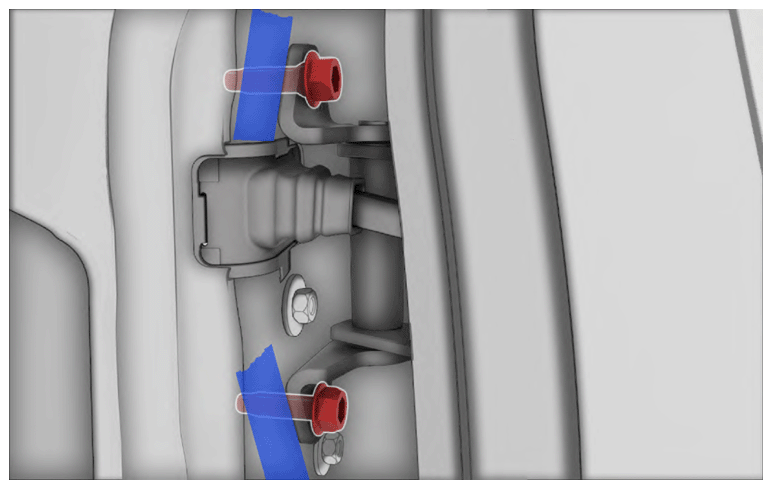

  9. Remove the LH front door upper hinge bolts (x2) from the door assembly (torque 24 N.m).
    G15199893Courtesy of TESLA, INC.

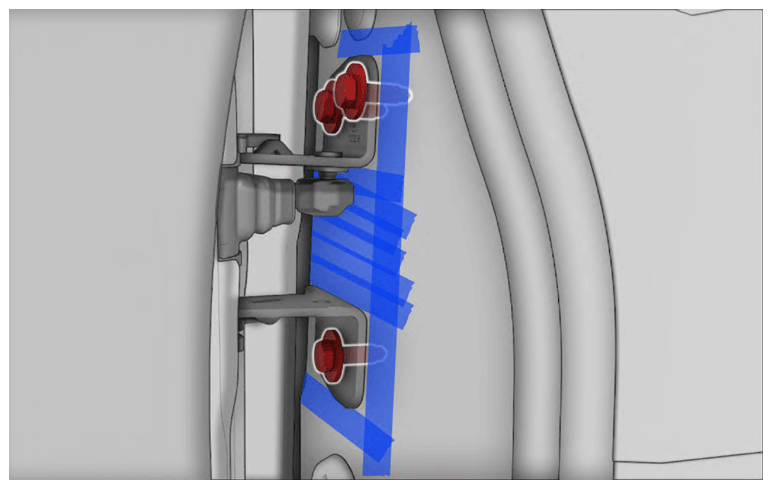

  10. Remove the LH front door upper hinge bolts (x3) from the body (torque 25 N.m).
    G15199894Courtesy of TESLA, INC.

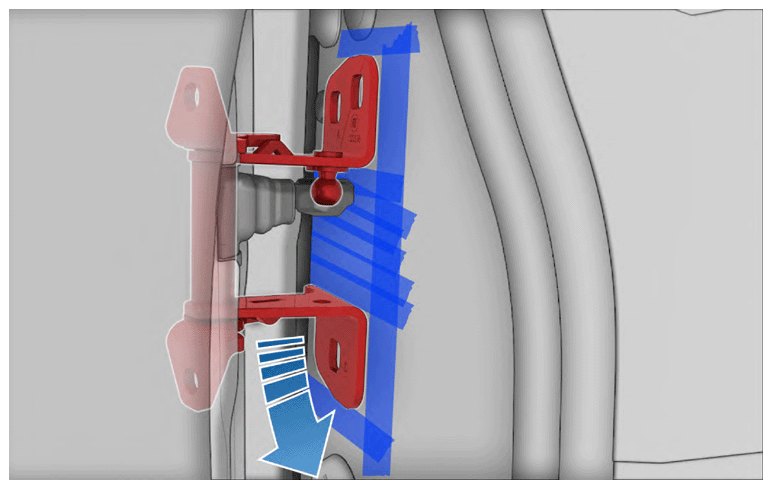

  11. Remove the LH front door upper hinge from the vehicle.
    G15199895Courtesy of TESLA, INC.
