Valance - Front Fascia - Remove And Replace: Removal
- Remove the skid plate chin spoiler SKID PLATE CHIN SPOILER (REMOVE AND REPLACE) .

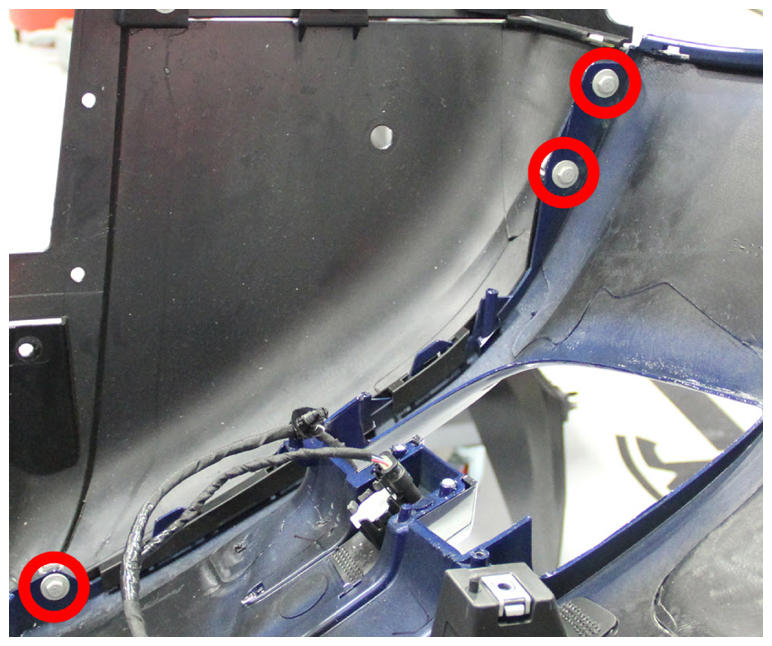

- On each side of the fascia, remove the screws that secure the valance to the fascia (torque 3 N.m).
 Courtesy of TESLA, INC.
|

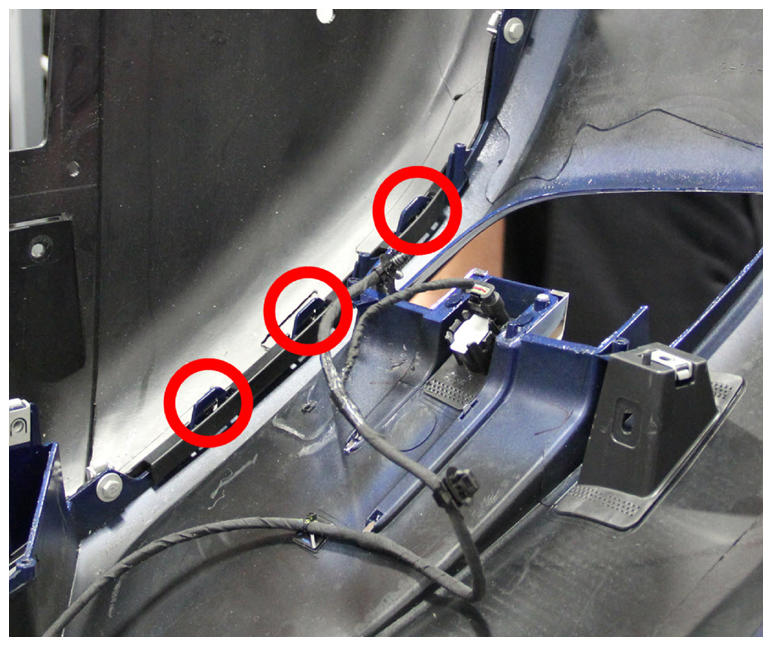

- On each side of the fascia, release the clips that secure the valance to the fascia.
 Courtesy of TESLA, INC.
|
- Remove the valance from the fascia.

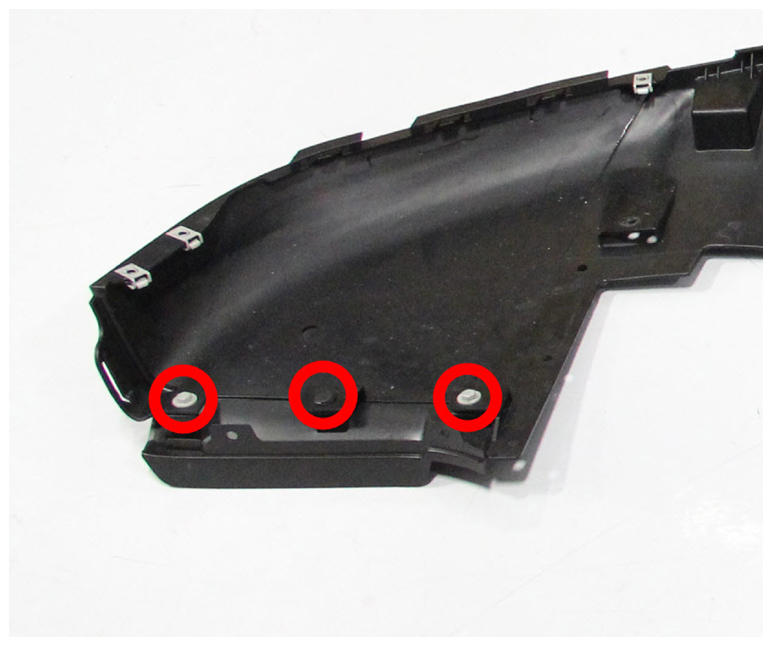

- On each side of the valance, remove the screws (x2) and push clip that secure the wheel fairing to the valance (torque 3 N.m).
 Courtesy of TESLA, INC.
|
