Surround - Grille - Front Upper - Remove And Replace: Removal

  1. Remove the front upper grille carrier CARRIER - GRILLE - FRONT UPPER (REMOVE AND REPLACE) .
  2. Remove the front nose badge Nose Badge - Front (Remove And Replace) .
  3. Release the push clips on both sides of the front upper grille surround.

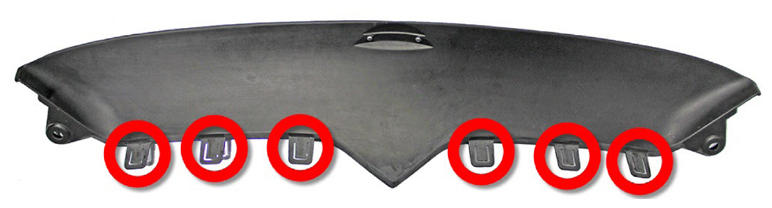

  4. Release the clips (x6) that secure the front upper grille surround to the front upper grille.
    G15199075Courtesy of TESLA, INC.
  5. Remove the front upper grille surround from the vehicle.
