Grille - Front Upper - Remove And Replace: Removal

  1. Remove the front upper grille surround SURROUND - GRILLE - FRONT UPPER (REMOVE AND REPLACE) .

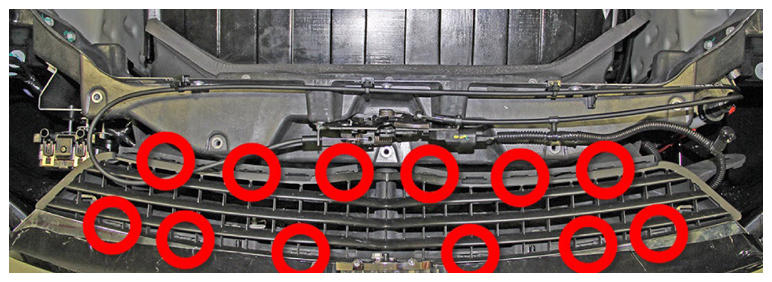

  2. Release the clips (x12) that secure the front upper grille to the center fascia bracket.
    G15199068Courtesy of TESLA, INC.
  3. Remove the upper grille from the vehicle.
