Grille - Front Lower - Remove And Replace: Removal

  1. Remove the front fascia assembly FASCIA ASSEMBLY - FRONT (REMOVE AND INSTALL) .

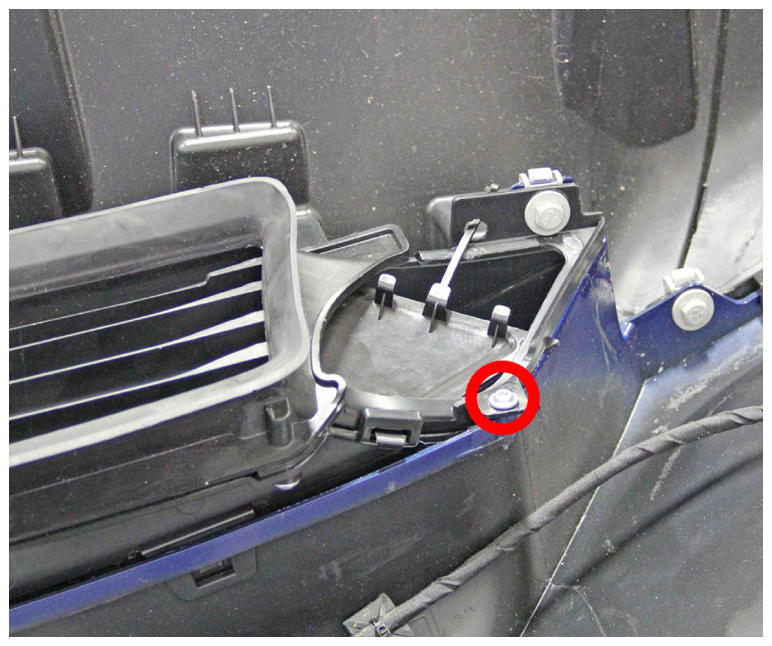

  2. On each side of the fascia, remove the fastener that secures the top of the grille to the fascia (torque 1 N.m).
    G15199065Courtesy of TESLA, INC.

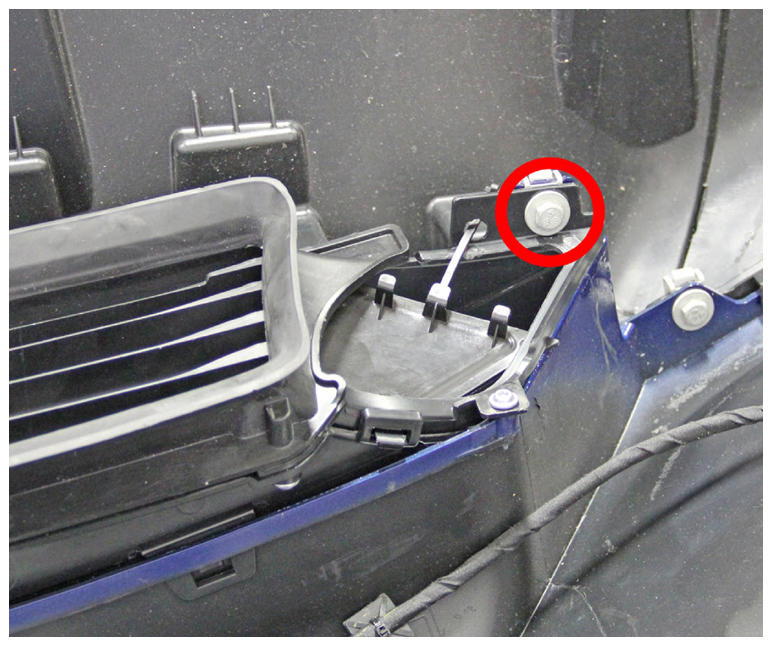

  3. On each side of the fascia, remove the fastener that secures the base of the grille to the fascia (torque 3 N.m).
    G15199066Courtesy of TESLA, INC.
  4. Release the clips (x11) that secure the grille to the fascia.

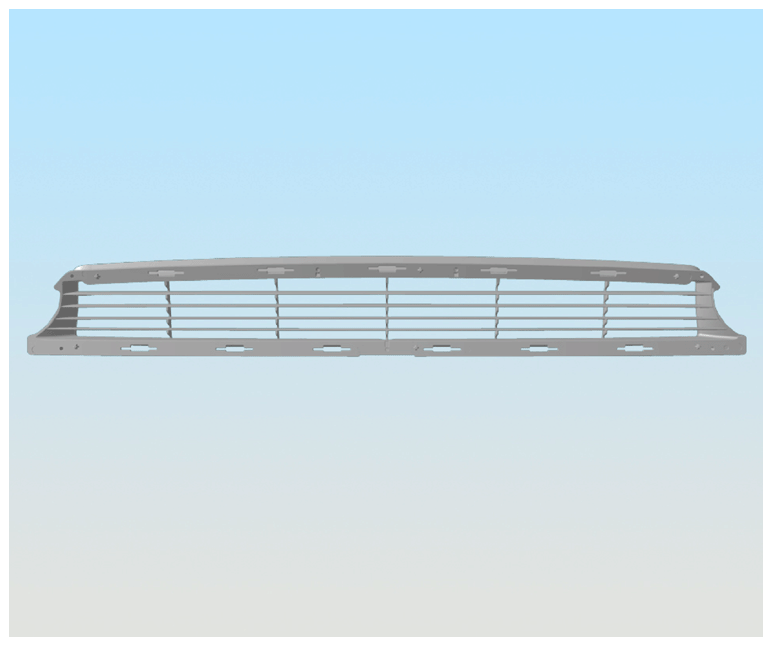

  5. Remove the front lower grille assembly from the fascia.
  6. Remove the upper closing panel PANEL - CLOSING - UPPER - FRONT FASCIA (REMOVE AND REPLACE) .
  7. Remove the lower closing panel PANEL - CLOSING - LOWER - FRONT FASCIA (REMOVE AND REPLACE) .
    G15199067Courtesy of TESLA, INC.
