Fascia Bracket - Center - Remove And Replace: Removal

  1. Remove the upper grille bright trim BRIGHT TRIM - UPPER GRILLE (REMOVE AND REPLACE) .

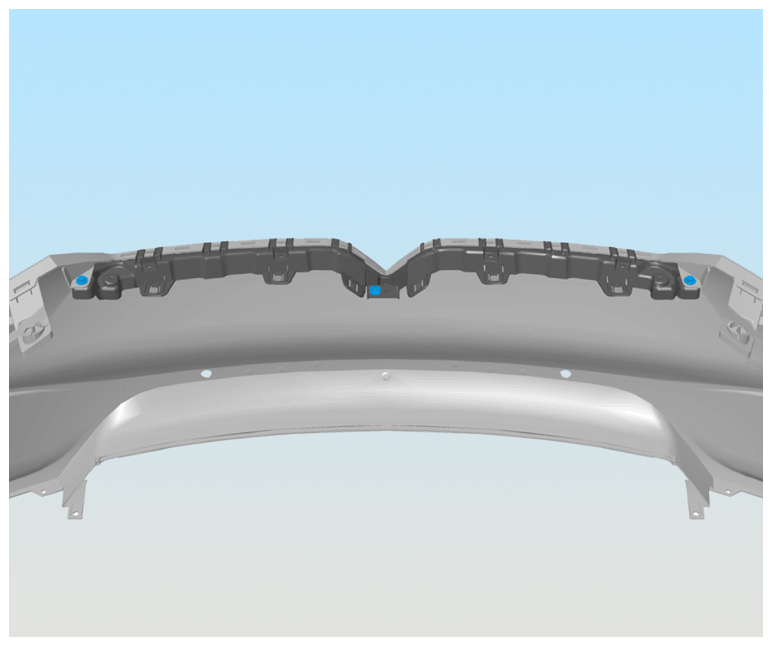

  2. Remove the bolts (x3) that secure the center fascia bracket to the front fascia (torque 4 N.m).
    NOTE: Components have been removed in this graphic to aid clarity.
    G15199064Courtesy of TESLA, INC.
  3. Use a trim tool to release the tabs that secure the center fascia bracket to the front fascia.
  4. Release the center fascia bracket from the front fascia.
