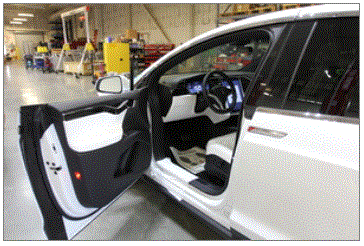

- Open LH front door.
 Courtesy of TESLA, INC.
|

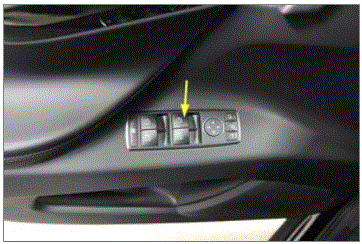

- Lower LH front window.
 Courtesy of TESLA, INC.
|

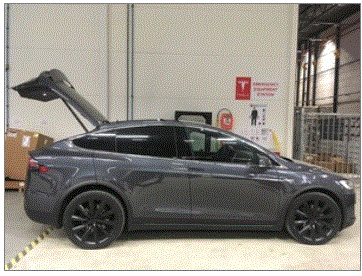

- Open liftgate.
 Courtesy of TESLA, INC.
|

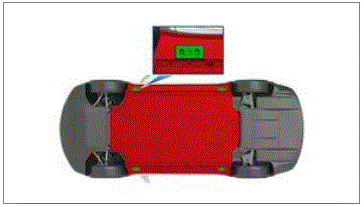

- Raise and support vehicle.
NOTE:

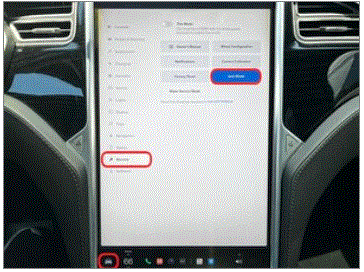

Set air suspension to "Jack Mode" Via Controls > Service > "Jack Mode".
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Raise vehicle fully and lower onto locks.
NOTE:
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove bolts securing mid aero shield to rear fascia.
NOTE:
11x bolts, 10mm, 4 Nm, 2x bolt, T30, 4.5 Nm.
 Courtesy of TESLA, INC.
|
- Lower vehicle to comfortable working height.
NOTE:
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side, Ensure the vehicle is stable by rocking the vehicle on the lift immediately after the tires have left the ground, Always lower the lift arms onto the locks after raising the vehicle.
Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
Courtesy of TESLA, INC.
|
- Remove LH liftgate stop from vehicle.
NOTE:
1x bump stop.
 Courtesy of TESLA, INC.
|
- Remove RH liftgate stop from vehicle.
NOTE:
1x bump stop.
 Courtesy of TESLA, INC.
|
- Remove LH liftgate trough trim.
NOTE:
1x clip, 4x double sided tape strip.
 Courtesy of TESLA, INC.
|
- Remove RH liftgate trough trim.
 Courtesy of TESLA, INC.
|

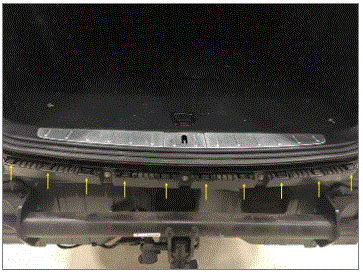

- Remove bolt securing LH top of fascia to bracket.
NOTE:
1x bolts, 10mm, 4 Nm.
 Courtesy of TESLA, INC.
|
- Remove bolt securing RH top of fascia to bracket.
NOTE:
1x bolts, 10mm, 4 Nm.
 Courtesy of TESLA, INC.
|
- Remove clip securing LH rear fender garnish and arch liner.
NOTE:
2x push clip.
 Courtesy of TESLA, INC.
|
- Remove clip securing RH rear fender garnish and arch liner.
NOTE:
2x push clip.
 Courtesy of TESLA, INC.
|
- Partially release LH rear fender garnish from rear fascia.
NOTE:
3x clips, 7 tabs.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Partially release RH rear fender garnish from rear fascia.
NOTE:
3x clips, 7 tabs.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove screw securing LH rear fascia to quarter panel.
NOTE:
1x screw, T25, 1.5 Nm.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove screw securing RH rear fascia to quarter panel.
NOTE:
1x screw, T25, 1.5 Nm.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

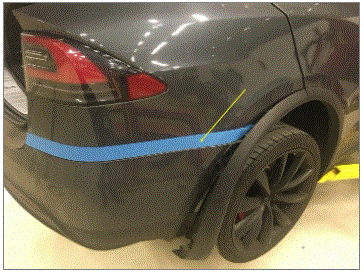

- Apply masking tape to protect LH rear quarter panel.
 Courtesy of TESLA, INC.
|

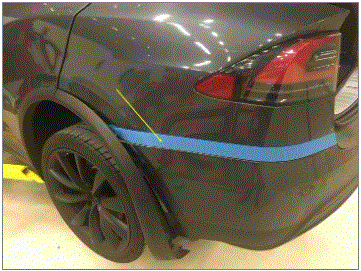

- Apply masking tape to protect RH rear quarter panel.
 Courtesy of TESLA, INC.
|
- Remove rear fascia from vehicle.
NOTE:
24x tabs, Recommended assistance, Take care not to damaged connectors and harness while pulling fascia away from vehicle, Connectors removal next step.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Disconnect rear fascia harness connector.
NOTE:
2x connectors, Located on LH rear side, Recommend assistance, Place fascia on padded surface.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove both rear reflex lamps from rear fascia applique.
NOTE:
4x clips 2x 10mm metal clip.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove screws securing diffuser to fascia.
NOTE:
2x screws, 10mm, 3 Nm.
 Courtesy of TESLA, INC.
|
- Remove diffuser from rear fascia.
NOTE:
4x push clips, 13x clips, Recommend assistance.
 Courtesy of TESLA, INC.
|
- Remove screws securing lower fascia to rear fascia.
NOTE:
4x screws, 10mm, 3 Nm.
 Courtesy of TESLA, INC.
|
- Remove Lower Fascia from Rear Fascia.
NOTE:
21x clips, Recommend assistance.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
