Actuator - EZ Entry - 40 Track - 2nd Row Seat (7 Seat) - Remove and Replace: Remove
- Open the RH falcon wing door.
- Fold the 2nd row 40 seat downwards.

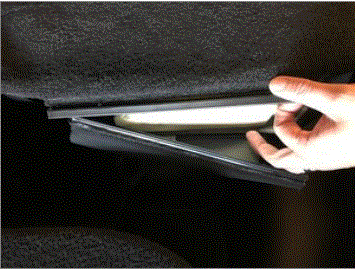

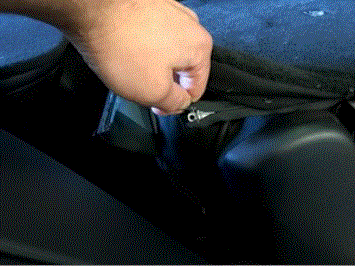

- Release the J-hook that attaches the 2nd row 40 seat back upholstery to the seat.NOTE: Fold the backrest upholstery down upon release.
Tip: Use of the following tool(s) is recommended:
- 6 in 90 degree tip miniature soft grip pick

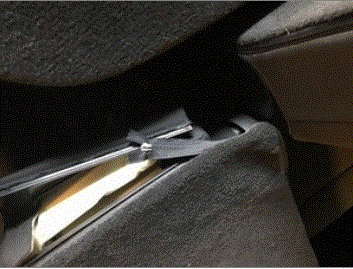

- Unzip the 2nd row 40 seat back upholstery on the LH and RH sides of the backrest cover.
Tip: Use of the following tool(s) is recommended:
- 6 in 90 degree tip miniature soft grip pick

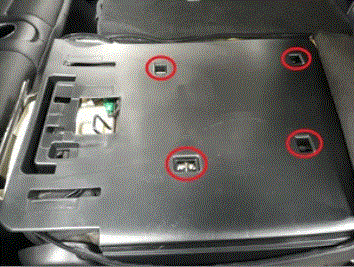

- Release the clips (x4) that attach the 2nd row 40 seat plastic seat back to the seat, and then remove the plastic seat back from the seat.
Tip: Use of the following tool(s) is recommended:
- Clip pry tool

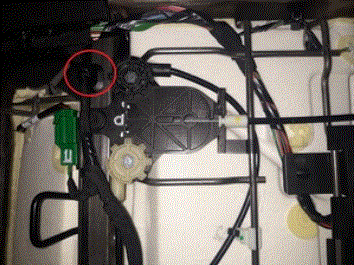

- Release the clip that attaches the 2nd row 40 seat harness to the seat frame.
Tip: Use of the following tool(s) is recommended:
- Clip pry tool

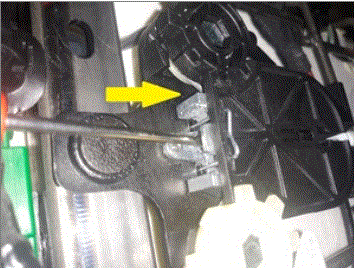

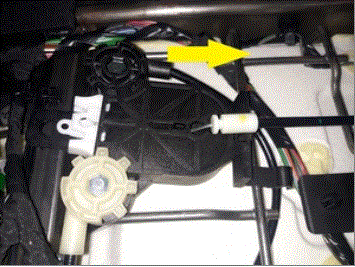

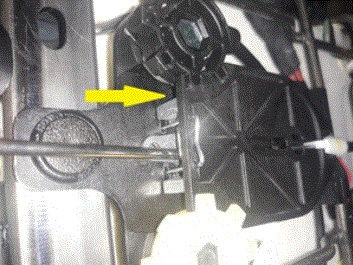

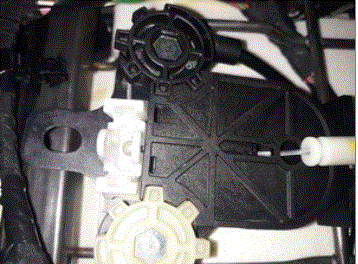

- Relieve the tension on the metal clip by moving the 2nd row 40 seat actuator slider into the housing, and then remove and discard the metal clip from the actuator slider.
Tip: Use of the following tool(s) is recommended:
- Plastic trim tool
- Small flat head screwdriver

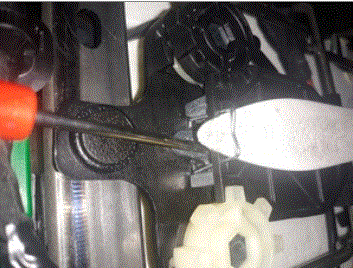

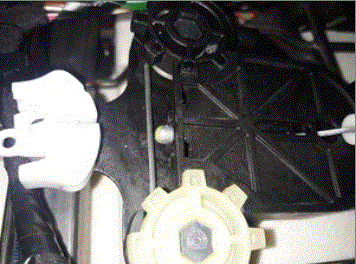

- Release the 2nd row 40 seat actuator slider cable from the slider.CAUTION: Use caution not to damage the cable locating plastic.
Tip: Use of the following tool(s) is recommended:
- Plastic trim tool

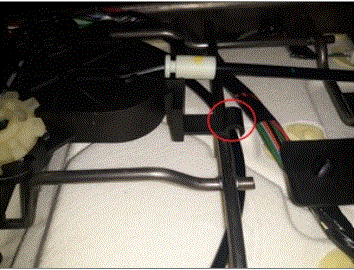

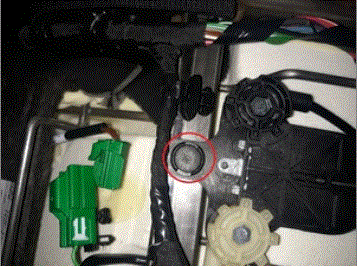

- Release the clips (x2) that attach the 2nd row 40 seat actuator slider to the seat frame.
Tip: Use of the following tool(s) is recommended:
- Clip pry tool
- Move the 2nd row 40 seat actuator slider towards the cable to relieve tension.CAUTION: Do not kink or damage the cable.

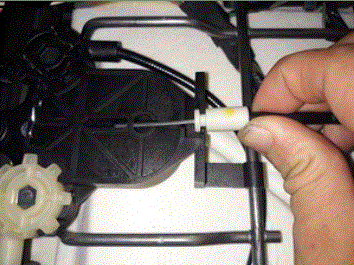

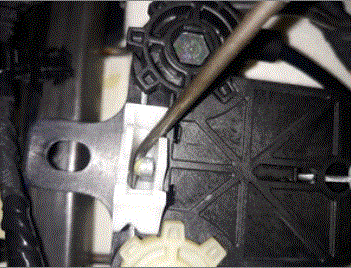

- Flip the 2nd row 40 seat actuator slider vertically, use a pick to release the cable end fitting from the open slot, and then remove the slider from the vehicle.CAUTION: Do not kink or damage the cable.
Tip: Use of the following tool(s) is recommended:
- 6 in 90 degree tip miniature soft grip pick

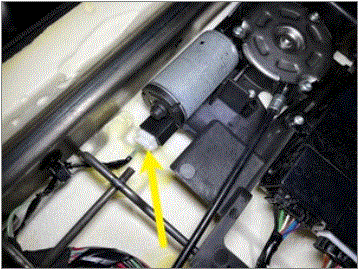

- Disconnect the 2nd row seat 40 track EZ entry actuator connector.

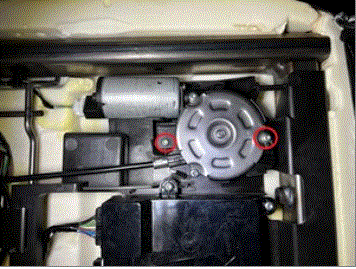

- Remove the screws (x2) that attach the 2nd row seat 40 track EZ entry actuator to the bracket.
Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- Torx T15 socket

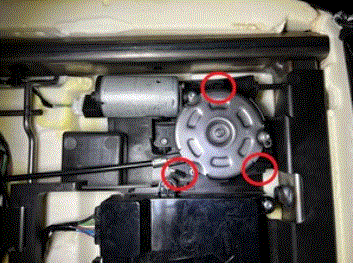

- Release the tabs (x3) that attach the 2nd row seat 40 track EZ entry actuator to the bracket, and then remove the actuator from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Flat head screwdriver
