Cover - Outer Side - Driver's Seat - Remove And Replace: Removal

  1. Remove the driver's seat outer cover COVER - OUTER SIDE - DRIVER'S SEAT (REMOVE AND INSTALL) .

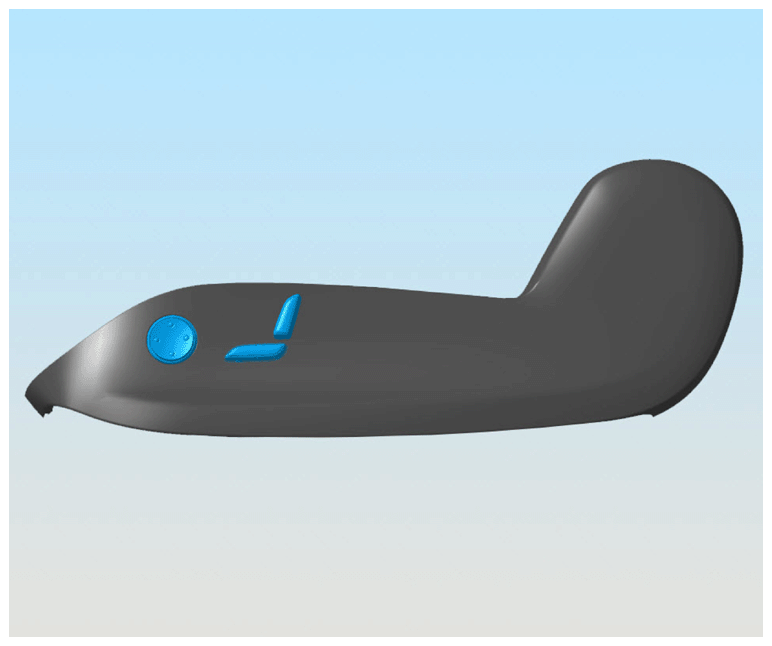

  2. Remove the switch covers.
    G15201705Courtesy of TESLA, INC.

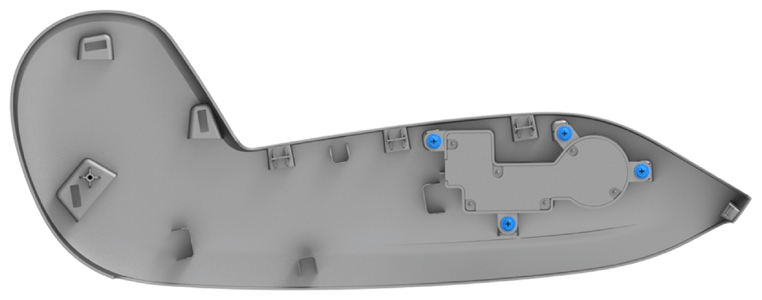

  3. Remove the fasteners that secure the switch to the cover (torque 0.9 N.m).
    G15201706Courtesy of TESLA, INC.
