Cover - Back Rest - Driver's Seat - Remove and Replace: Remove & Replace

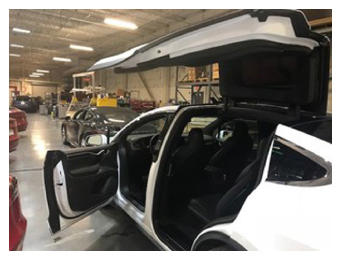

  1. Open the LH front and LH rear doors
    G15201496Courtesy of TESLA, INC.

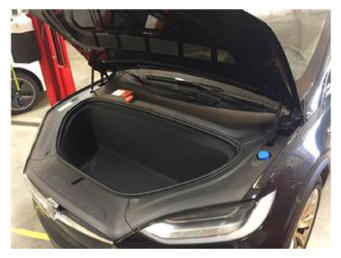

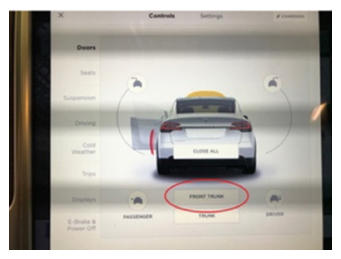

  2. Open hood
    NOTE: Release using MCU, Controls > Doors > Front Trunk
    G15201497Courtesy of TESLA, INC.
    G15201498Courtesy of TESLA, INC.

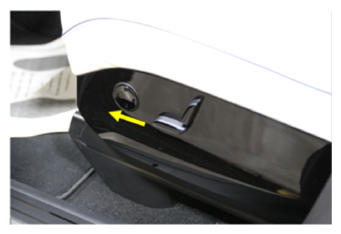

  3. Move LH front seat forward
    G15201499Courtesy of TESLA, INC.

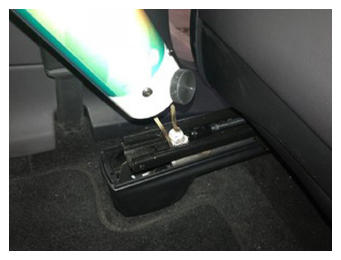

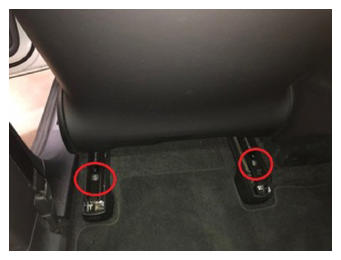

  4. Remove LH front seat rear fasteners
    NOTE: 2x patch bolts, T45P, 34 N.m, Discard after removal, Use Torchless heat induction tool to help remove bolts if necessary
    G15201500Courtesy of TESLA, INC.
    G15201501Courtesy of TESLA, INC.
  5. Move LH front seat backward
    G15201502Courtesy of TESLA, INC.

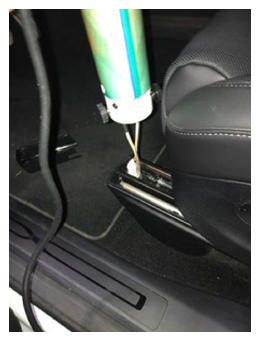

  6. Remove LH front seat front fasteners
    NOTE: 2x patch bolts, T45P, 34 N.m, Discard after removal, Use Torchless heat induction tool to help remove bolts if necessary
    G15201503Courtesy of TESLA, INC.
    G15201504Courtesy of TESLA, INC.

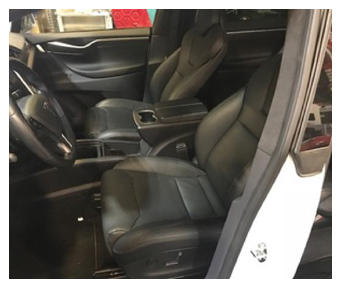

  7. Adjust the position of the LH seat for easy removal
    NOTE: Middle of track, most upright position, seat fully up off the floor
    G15201505Courtesy of TESLA, INC.

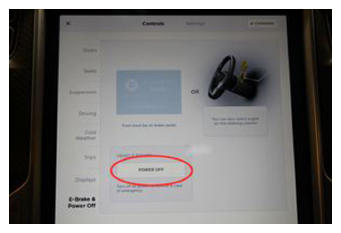

  8. Power down vehicle using MCU
    NOTE: Controls > E-brake & Power Off > Power off
    G15201506Courtesy of TESLA, INC.
  9. Remove underhood aprons
    NOTE: 4x aprons
    G15201507Courtesy of TESLA, INC.

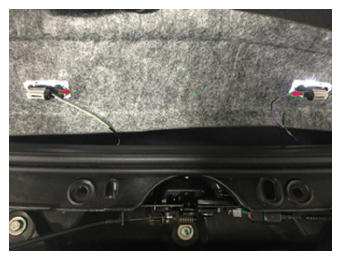

  10. Remove frunk carpet
    NOTE: 2x connectors
    G15201508Courtesy of TESLA, INC.
  11. Remove underhood storage unit
    NOTE: 10x bolts, 10 mm, 4 N.m, 10x bolts, 10 mm, 7 N.m

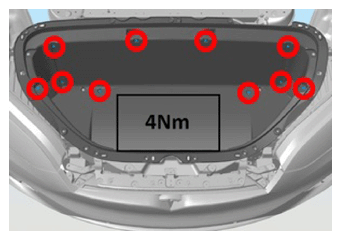

    Fig 1: Underhood Storage Unit Bolts With Toque Specification (1 Of 3)
    G15201509Courtesy of TESLA, INC.

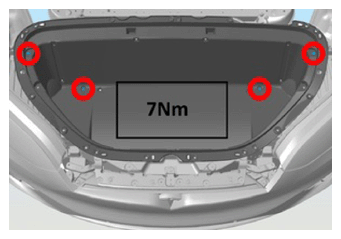

    Fig 2: Underhood Storage Unit Bolts With Toque Specification (2 Of 3)
    G15201510Courtesy of TESLA, INC.

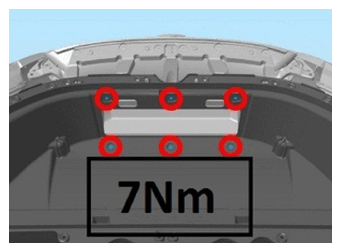

    Fig 3: Underhood Storage Unit Bolts With Toque Specification (3 Of 3)
    G15201511Courtesy of TESLA, INC.

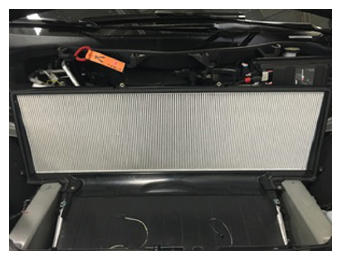

  12. Remove HEPA filter
    NOTE: Lift up from bottom and pull out
    G15201512Courtesy of TESLA, INC.

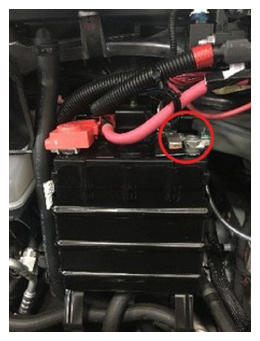

  13. Disconnect 12V negative terminal and First Responder Loop
    NOTE: 1x nut, 10 mm, 5 N.m, 1x connector, Wait at least 2 minutes before disconnecting modules or HV components
    G15201513Courtesy of TESLA, INC.
    G15201514Courtesy of TESLA, INC.
  14. Disconnect LH front seat harness
    NOTE: 1x connector
    G15201515Courtesy of TESLA, INC.
  15. Remove LH front seat from vehicle
    NOTE: Recommend assistance
    G15201516Courtesy of TESLA, INC.

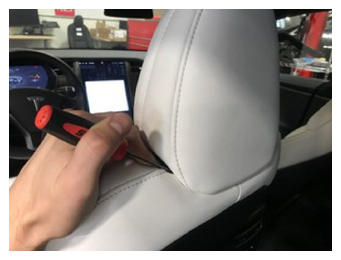

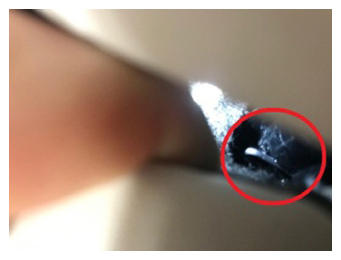

  16. Use a pick to disengage the outboard headrest retaining spring
    NOTE: 1x retaining spring, Depress the material around the headrest post to expose the release clip
    G15201517Courtesy of TESLA, INC.
    G15201518Courtesy of TESLA, INC.

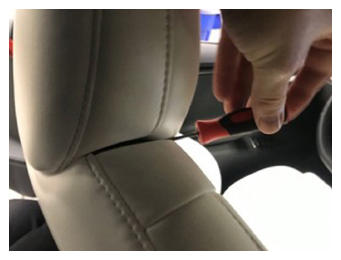

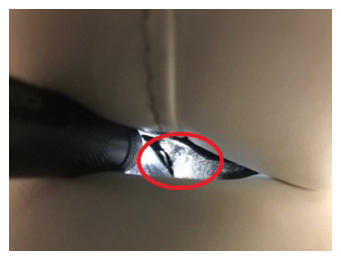

  17. Use a pick to disengage the inboard headrest retaining spring
    NOTE: 1x retaining spring, Depress the material around the headrest post to expose the release clip
    G15201519Courtesy of TESLA, INC.
    G15201520Courtesy of TESLA, INC.
  18. Remove the headrest from seat
    NOTE: Remove by pulling straight up out of seat back
    G15201521Courtesy of TESLA, INC.
  19. Release toe kick straps from both sides of interior seat base
    NOTE: 2x hook clips
    G15201522Courtesy of TESLA, INC.

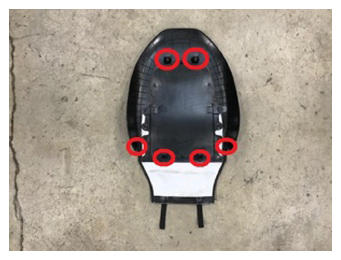

  20. Remove the seat back shell base assembly from seat back frame
    NOTE: 6x clips, Start at the top of the seat and pull the shell away from the frame, When the side clips are free, pull the bottom and carefully roll the bottom tabs out of the slots, If pulled straight out, the clips on the seat back can break off
    G15201523Courtesy of TESLA, INC.
    G15201524Courtesy of TESLA, INC.

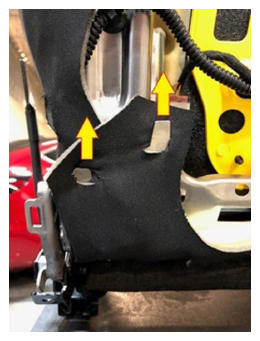

  21. Remove the lower flap covering the outboard corner of the seat back frame
    NOTE: Pull the trim straight up, off of the retaining tabs to release
    G15201525Courtesy of TESLA, INC.

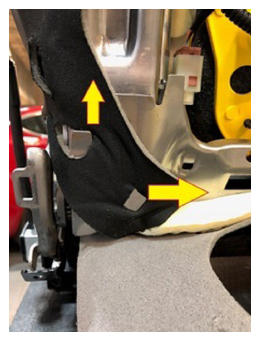

  22. Remove the upper flap covering the outboard corner of the seat back frame
    NOTE: Pull the lower section of trim away from the retaining tab to release, then pull the trim straight up off of the upper retaining tab
    G15201526Courtesy of TESLA, INC.

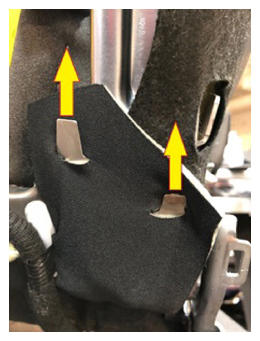

  23. Remove the lower flap covering the inboard corner of the seat back frame
    NOTE: Pull the trim straight up, off of the retaining tabs to release
    G15201527Courtesy of TESLA, INC.

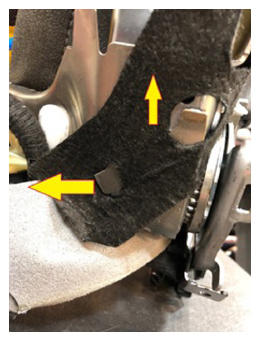

  24. Remove the upper flap covering the inboard corner of the seat back frame
    NOTE: Pull the lower section of trim away from the retaining tab to release, then pull the trim straight up off of the upper retaining tab
    G15201528Courtesy of TESLA, INC.
  25. Remove clips securing the seat upholstery to the seat back frame
    NOTE: 7x clips, To release, rotate the clips off of the frame from the inside out, Seventh clip is located tucked beneath top center upholstery clip
    G15201529Courtesy of TESLA, INC.
    G15201530Courtesy of TESLA, INC.

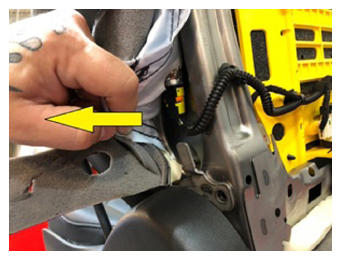

  26. Pull the seat upholstery away from the air bag to gain access to the air bag electrical connector
    G15201531Courtesy of TESLA, INC.

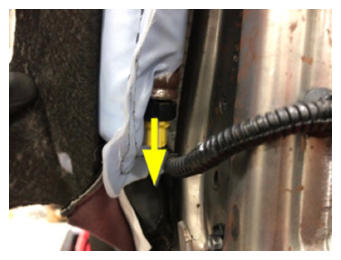

  27. Disconnect LH front seat air bag
    NOTE: 1x connector, Pull black collar down to release connector
    G15201532Courtesy of TESLA, INC.

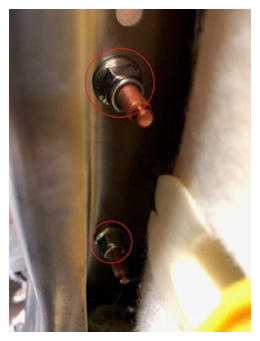

  28. Remove nuts securing 1st row side air bag to seat back frame
    NOTE: 2x nyloc nuts, 10 mm, 5.4 N.m, Discard after removal
    G15201533Courtesy of TESLA, INC.

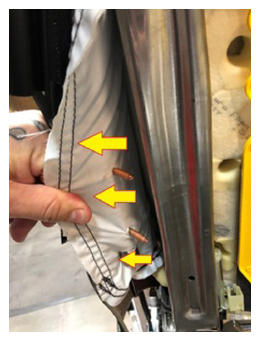

  29. Pull the airbag and fasteners away from the seat frame
    G15201534Courtesy of TESLA, INC.

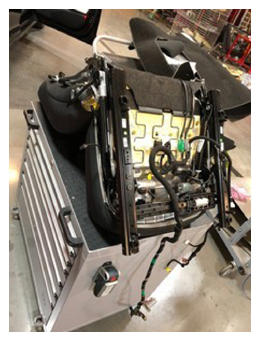

  30. Place the front seat in a position to gain access to the bottom of the seat
    NOTE: Protect seat cushion from damage
    G15201535Courtesy of TESLA, INC.

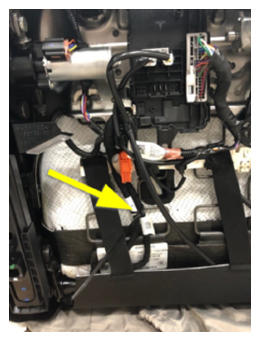

  31. Remove zip tie securing harnesses to spring mat
    G15201536Courtesy of TESLA, INC.

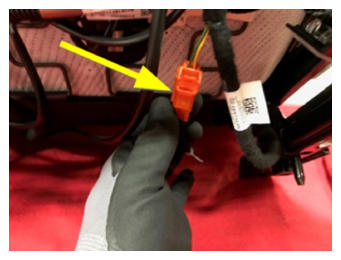

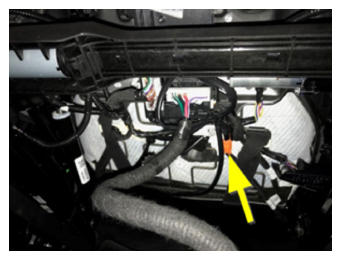

  32. Disconnect the seat heater connector
    NOTE: 1x connector, 1x clip, Remove connector from spring mat clip
    G15201537Courtesy of TESLA, INC.
    G15201538Courtesy of TESLA, INC.
    G15201539Courtesy of TESLA, INC.

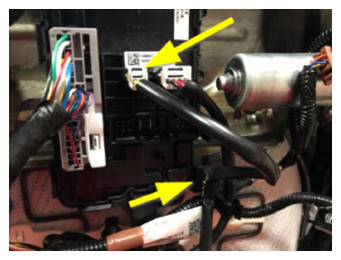

  33. Remove the seat back harness connector from the seat bottom
    NOTE: 1x connector, 1x fir tree clip
    G15201540Courtesy of TESLA, INC.

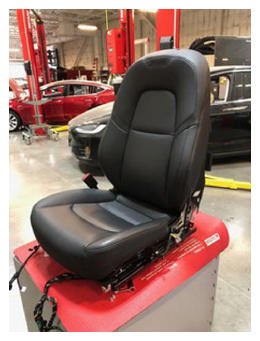

  34. Return seat to upright position
    G15201541Courtesy of TESLA, INC.

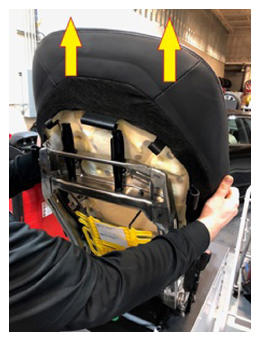

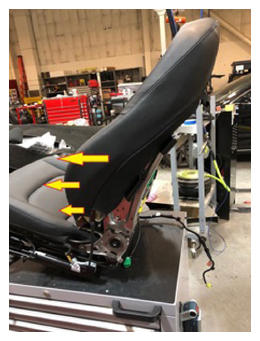

  35. Remove the upholstery trim
    NOTE: Start by pulling the bottom of the seat trim away from the seat frame, ensure the heater harness and the trim is clear of the frame, Lift straight up on the sides of the trim, moving the trim from side to side, to free it from the frame
    G15201542Courtesy of TESLA, INC.
    G15201543Courtesy of TESLA, INC.

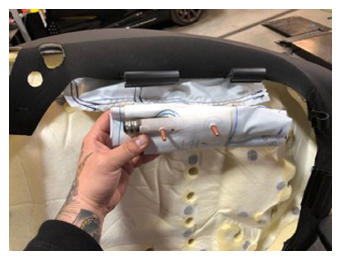

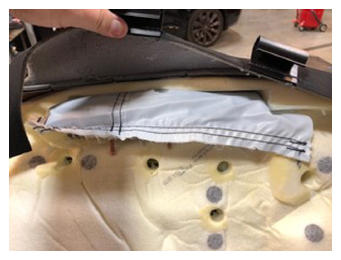

  36. Remove the side air bag from seat back assembly
    NOTE: Pull the seat back cover away from foam assembly to access the air bag, Slide the air bag out of the envelope, Ensure the studs are clear of the envelope before removing, If the air bag is pulled straight out with the studs in the holes, the envelope will be damaged
    G15201544Courtesy of TESLA, INC.
    G15201545Courtesy of TESLA, INC.

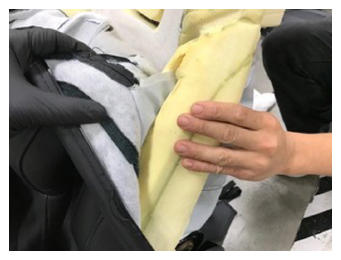

  37. Pull air bag envelope through side of seat back cushion
    NOTE: Ensure not to damage cushion when pulling air bag envelope through side of seat back cushion
    G15201546Courtesy of TESLA, INC.

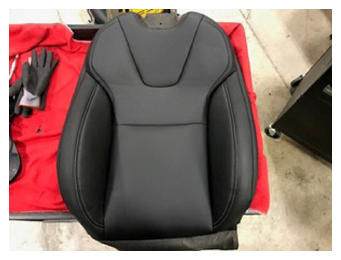

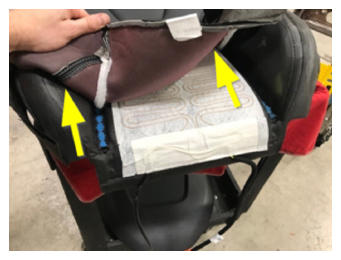

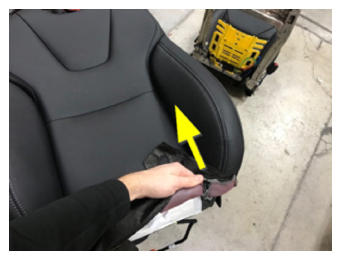

  38. Remove upholstery from seat back cushion
    NOTE: Upholstery held on to cushion by velcro, Gently pull upholstery inch by inch from seat back starting lower seat back working your way up to upper seat back, Velcro can tear off cushion
    G15201547Courtesy of TESLA, INC.
    G15201548Courtesy of TESLA, INC.
    G15201549Courtesy of TESLA, INC.
    G15201550Courtesy of TESLA, INC.

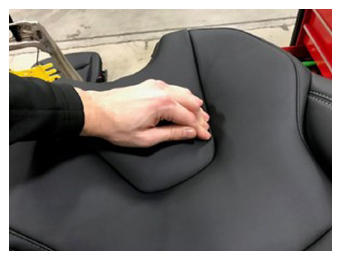

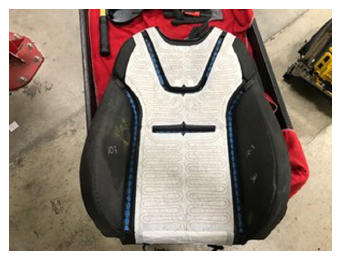

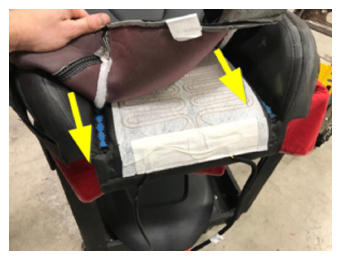

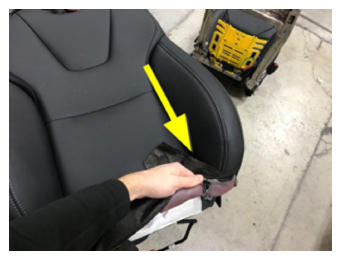

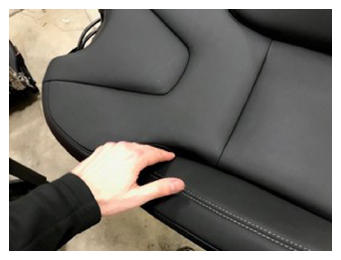

  39. Install upholstery to the seat back rest cushion
    NOTE: Start at the upper seat back working your down to lower seat back, Massage Velcro in as you go
    G15201551Courtesy of TESLA, INC.
    G15201552Courtesy of TESLA, INC.
    G15201553Courtesy of TESLA, INC.
    G15201554Courtesy of TESLA, INC.
    G15201555Courtesy of TESLA, INC.

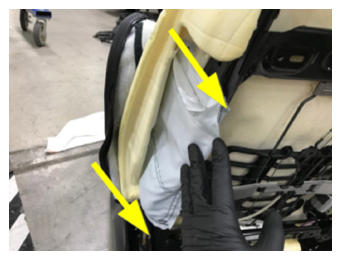

  40. Pull air bag envelope through side of seat back cushion
    NOTE: Ensure not to damage cushion when pulling air bag envelope through side of seat back cushion
    G15201556Courtesy of TESLA, INC.
  41. Install the side air bag to seat back assembly
    NOTE: Re-position the seat back cover with foam assembly
    G15201557Courtesy of TESLA, INC.
    G15201558Courtesy of TESLA, INC.

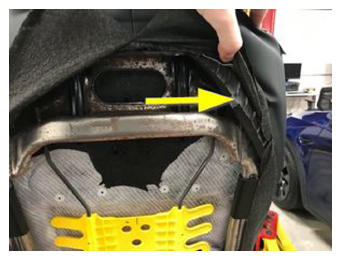

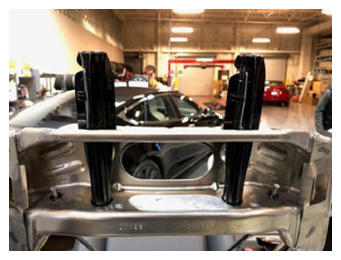

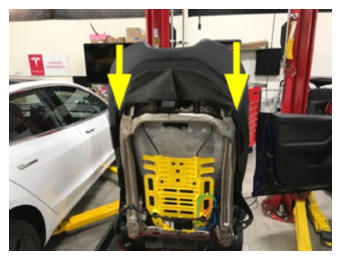

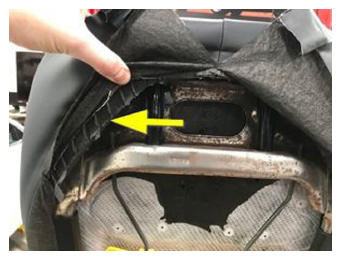

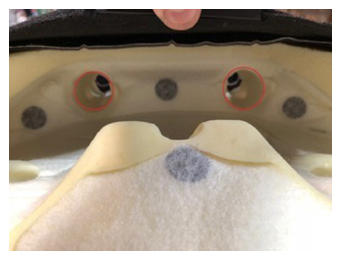

  42. Install seat back cushion to seat back frame
    NOTE: Start by sliding the foam trim straight onto the seat back frame, Ensure the posts for the headrests engage the seat back foam, Ensure the heater harness and lower trim that engages the frame are pushed through to the back side of the frame, Ensure that both sides of the seat back cushion overlap the seat back frame
    G15201559Courtesy of TESLA, INC.
    G15201560Courtesy of TESLA, INC.
    G15201561Courtesy of TESLA, INC.
    G15201562Courtesy of TESLA, INC.
    G15201563Courtesy of TESLA, INC.

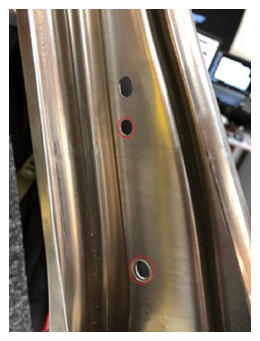

  43. Install the airbag studs into the seatback frame
    NOTE: The studs should line up with the two round holes, the elongated hole is not used for this part
    G15201564Courtesy of TESLA, INC.

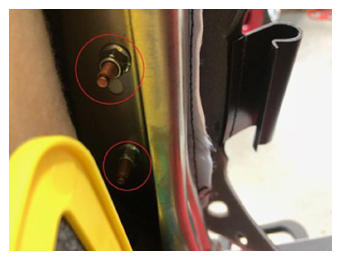

  44. Install nuts securing 1st row side airbag to seat back frame
    NOTE: 2x nuts, 10 mm, 5.4 N.m, Install new nyloc nuts
    G15201565Courtesy of TESLA, INC.

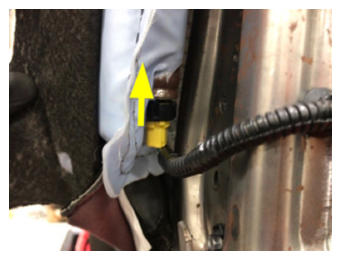

  45. Connect LH front seat air bag
    NOTE: 1x connector
    G15201566Courtesy of TESLA, INC.

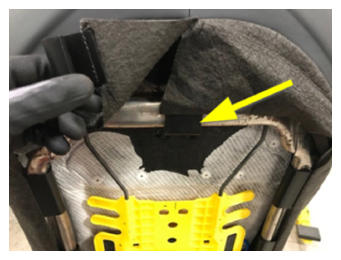

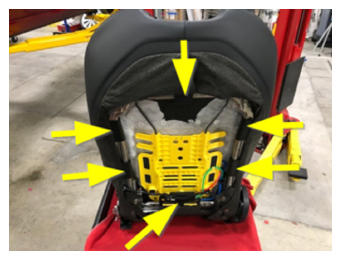

  46. Install seat back upholstery clips retaining trim to the frame
    NOTE: 7x clips
    G15201567Courtesy of TESLA, INC.
    G15201568Courtesy of TESLA, INC.

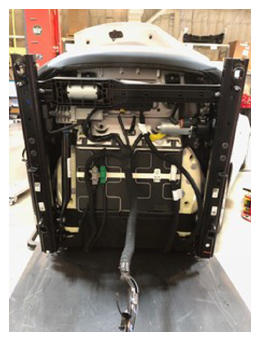

  47. Rotate the seat to gain access to the underside of the seat
    NOTE: Protect seat cushion from damage
    G15201569Courtesy of TESLA, INC.
  48. Install the seat back harness connector to the seat bottom
    NOTE: 1x connector, 1x fir tree clip
    G15201570Courtesy of TESLA, INC.

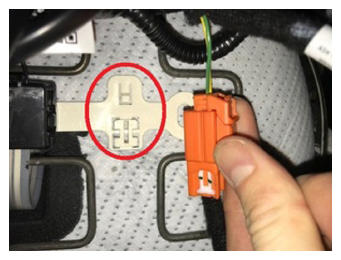

  49. Connect the seat heater harness and secure to spring mat clip
    NOTE: 1x connector, 1x clip, secure connector to spring mat clip
    G15201571Courtesy of TESLA, INC.
    G15201572Courtesy of TESLA, INC.
    G15201573Courtesy of TESLA, INC.
  50. Rotate the seat back to the upright position
    G15201574Courtesy of TESLA, INC.

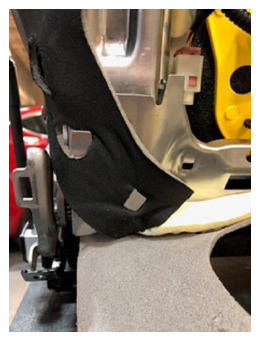

  51. Install the upper flap covering the outboard corner of the seat back frame
    NOTE: Pull the flap over the metal tangs to secure
    G15201575Courtesy of TESLA, INC.

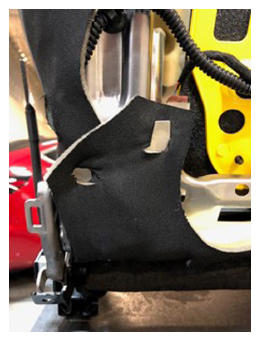

  52. Install the lower flap covering the outboard corner of the seat back frame
    NOTE: Pull the flap over the metal tangs to secure
    G15201576Courtesy of TESLA, INC.

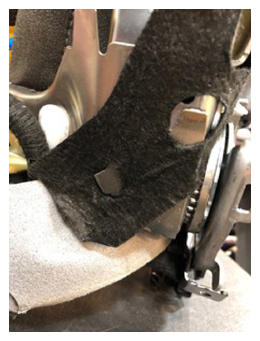

  53. Install the upper flap covering the inboard corner of the seat back frame
    NOTE: Pull the flap over the metal tangs to secure
    G15201577Courtesy of TESLA, INC.

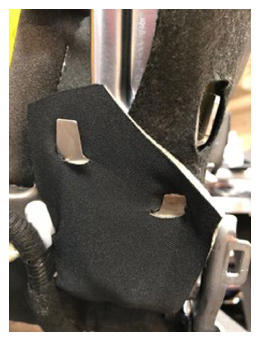

  54. Install the lower flap covering the inboard corner of the seat back frame
    NOTE: Pull the flap over the metal tangs to secure
    G15201578Courtesy of TESLA, INC.

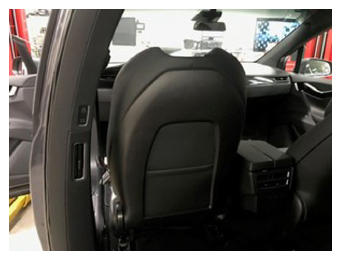

  55. Install the seat back shell base assembly to seat back frame
    NOTE: 6x clips, Install the lower clips first and rotate the shell up into place, Light pressure may need to be applied to the shell to ensure it's fully seated, The headrest posts will engage the seat back when installed
    G15201579Courtesy of TESLA, INC.
    G15201580Courtesy of TESLA, INC.
  56. Rotate the seat to gain access to the underside of the seat
    NOTE: Protect seat cushion from damage
    G15201581Courtesy of TESLA, INC.

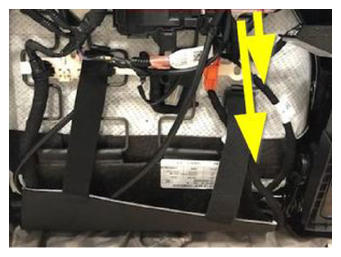

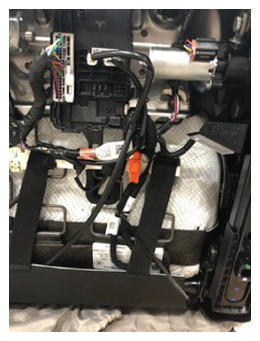

  57. Route LH sensor harnesses underneath toe kick strap
    G15201582Courtesy of TESLA, INC.
    G15201583Courtesy of TESLA, INC.

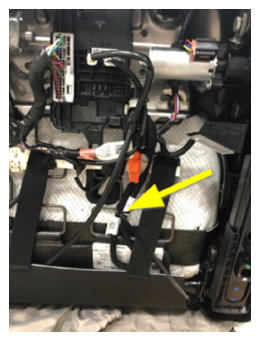

  58. Zip-tie both LH seat back heater and sensor harnesses onto spring mat
    NOTE: 1x zip tie
    G15201584Courtesy of TESLA, INC.

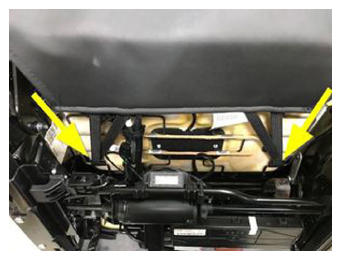

  59. Secure the toe kick straps to both sides of the interior seat base
    NOTE: 2x hook clips
    G15201585Courtesy of TESLA, INC.
  60. Rotate the seat back to the upright position
    G15201586Courtesy of TESLA, INC.

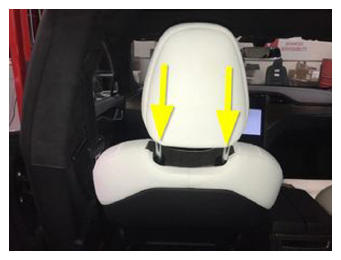

  61. Install the headrest into seat
    NOTE: 2x locking clips, Ensure the headrest is fully seated, An audible click will be heard when installing the headrest, Ensure the headrest is seated by tugging up on the headrest
    G15201587Courtesy of TESLA, INC.

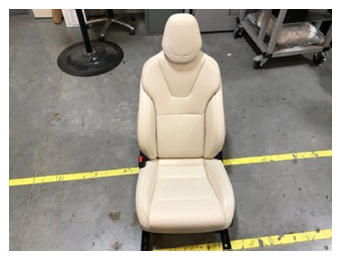

  62. Install LH front seat into vehicle
    NOTE: Recommend assistance
    G15201588Courtesy of TESLA, INC.

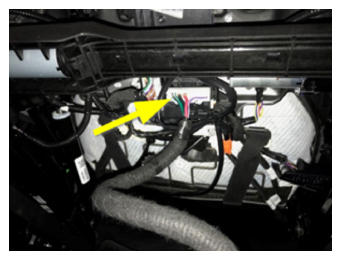

  63. Connect LH front seat harness
    NOTE: 1x connector
    G15201589Courtesy of TESLA, INC.

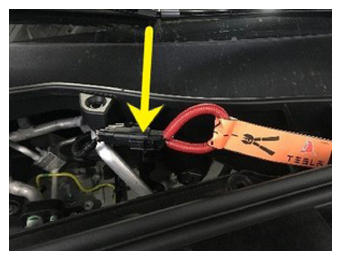

  64. Connect first responder loop and 12V negative terminal
    NOTE: 1x connector, 1x nut, 10 mm, 5 N.m
    G15201590Courtesy of TESLA, INC.
    G15201591Courtesy of TESLA, INC.

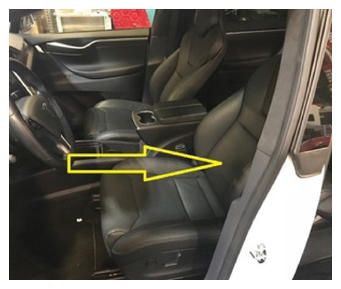

  65. Power the LH seat fully rearward for access
    G15201592Courtesy of TESLA, INC.

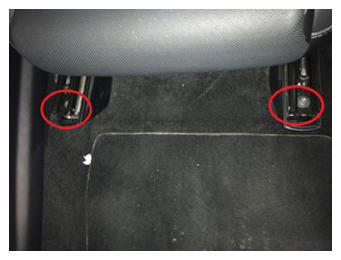

  66. Install LH front seat front fasteners
    NOTE: 2x patch bolts, T45P, 34 N.m, Install new patch bolts
    G15201593Courtesy of TESLA, INC.

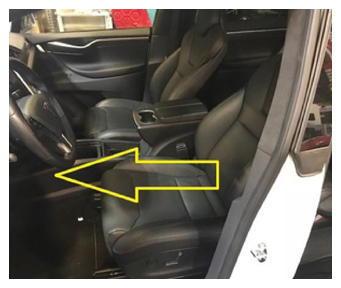

  67. Power the LH seat fully forward for access
    G15201594Courtesy of TESLA, INC.

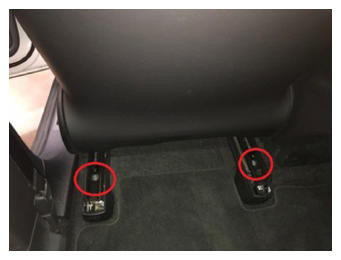

  68. Install LH front seat rear fasteners
    NOTE: 2x patch bolts, T45P, 34 N.m, Install new patch bolts
    G15201595Courtesy of TESLA, INC.

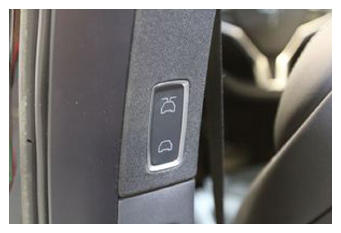

  69. Close LH rear door
    G15201596Courtesy of TESLA, INC.

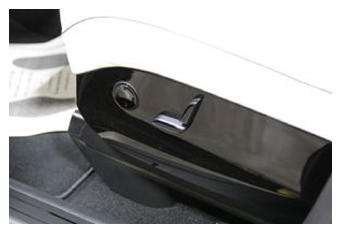

  70. Move LH front seat to original position
    G15201597Courtesy of TESLA, INC.
  71. Install HEPA filter housing
    G15201598Courtesy of TESLA, INC.
  72. Install underhood storage unit
    NOTE: 10x bolts, 10 mm, 4 N.m, 10x bolts, 10 mm, 7 N.m
    Fig 4: Underhood Storage Unit Bolts With Toque Specification (1 Of 3)
    G15201599Courtesy of TESLA, INC.

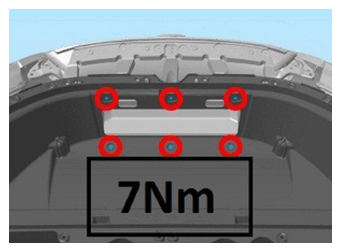

    Fig 5: Underhood Storage Unit Bolts With Toque Specification (2 Of 3)
    G15201600Courtesy of TESLA, INC.
    Fig 6: Underhood Storage Unit Bolts With Toque Specification (3 Of 3)
    G15201601Courtesy of TESLA, INC.
  73. Install frunk carpet
    NOTE: 2x connectors
    G15201602Courtesy of TESLA, INC.

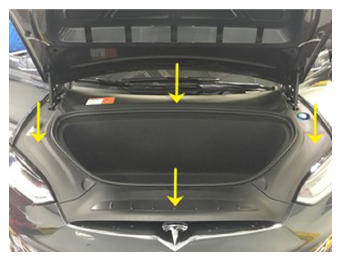

  74. Install underhood aprons
    NOTE: 4x aprons
    G15201603Courtesy of TESLA, INC.

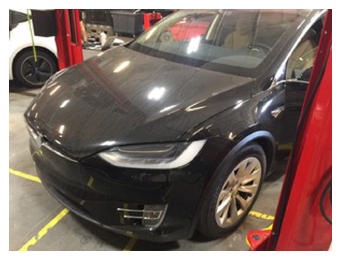

  75. Close hood
    G15201604Courtesy of TESLA, INC.

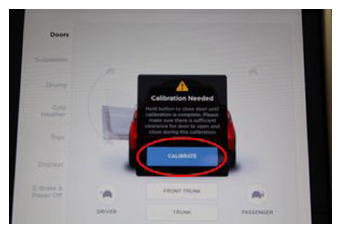

  76. Calibrate falcon doors using MCU
    NOTE: Required after 12V and FRL disconnect
    G15201605Courtesy of TESLA, INC.

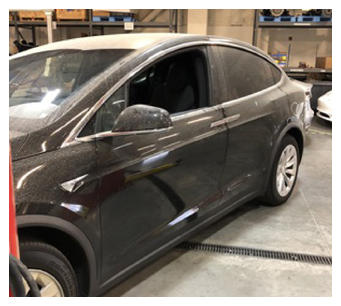

  77. Close LH front door
    G15201606Courtesy of TESLA, INC.
scientia non olet · About LEMON Manuals
