Remove And Replace

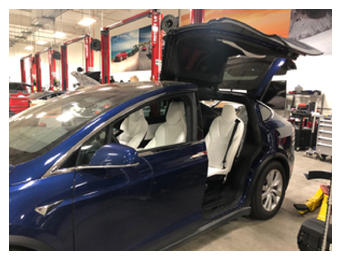

  1. Open LH rear door
    G15201227Courtesy of TESLA, INC.
  2. Move LH 2nd row seat fully forward using easy entry mode

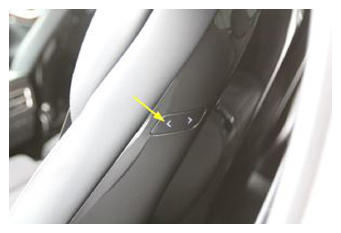

    G15201228Courtesy of TESLA, INC.

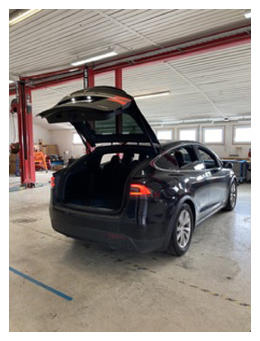

  3. Open liftgate
    G15201229Courtesy of TESLA, INC.

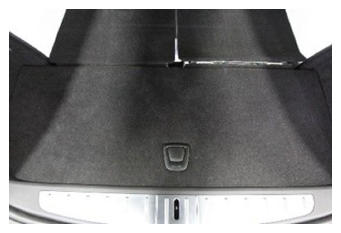

  4. Remove rear load floor
    G15201230Courtesy of TESLA, INC.
  5. Remove trunk board
    G15201231Courtesy of TESLA, INC.

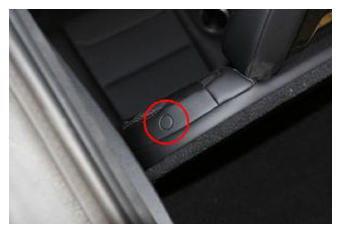

  6. Fold down LH 3rd row seat
    NOTE: Press button located on LH 3rd row seat back assembly near headrest, fold seat back down towards front of vehicle into a flat position
    G15201232Courtesy of TESLA, INC.
  7. Fold down RH 3rd row seat
    NOTE: Press button located on RH 3rd row seat back assembly near headrest, fold seat back down towards front of vehicle into a flat position

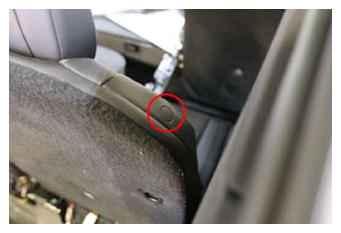

    G15201233Courtesy of TESLA, INC.
  8. Remove trunk floor carpet

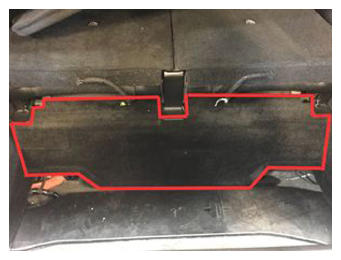

    G15201234Courtesy of TESLA, INC.

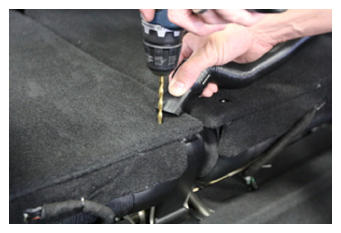

  9. Drill out rivets securing rear seat back carpet to LH 3rd row seat
    NOTE: 2x rivets, Use vacuum to collect debris while drilling out rivets, Use 3/16" or 3 mm drill bit
    G15201235Courtesy of TESLA, INC.
    G15201236Courtesy of TESLA, INC.

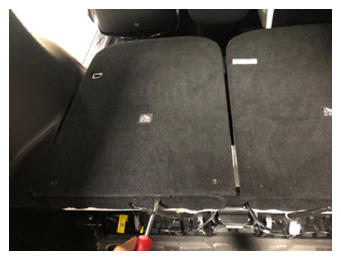

  10. Remove rear seat back carpet from LH 3rd row seat
    NOTE: 9x clips
    G15201237Courtesy of TESLA, INC.

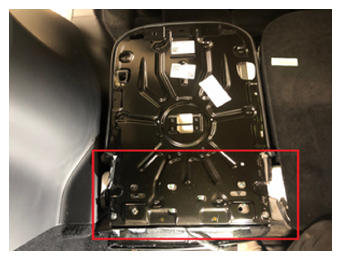

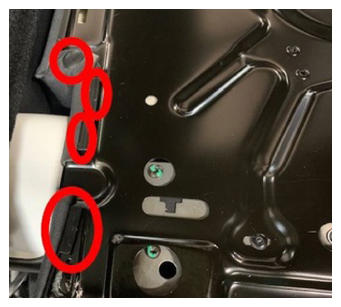

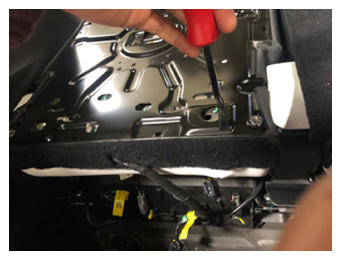

  11. Release lower section of LH 3rd row seat upholstery
    NOTE: 4x tabs, 2x, fir tree clips, 1x J hook, Release tabs by pulling inward and up
    G15201238Courtesy of TESLA, INC.
    G15201239Courtesy of TESLA, INC.
    G15201240Courtesy of TESLA, INC.
    G15201241Courtesy of TESLA, INC.

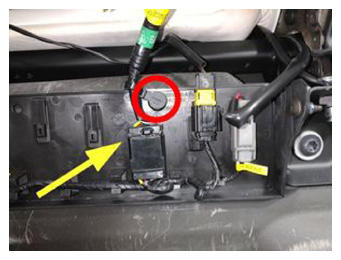

  12. Disconnect LH 3rd row seat connector
    NOTE: 1x connector, 1x clip
    G15201242Courtesy of TESLA, INC.

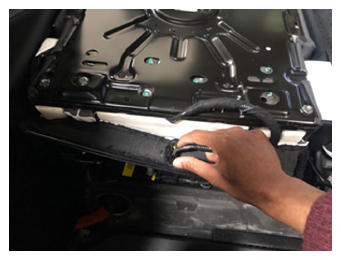

  13. Re-route LH 3rd row seat connector through lower section of upholstery
    G15201243Courtesy of TESLA, INC.

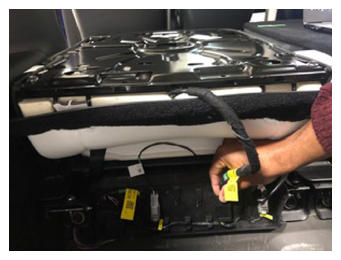

  14. Connect LH 3rd row seat connector
    NOTE: 1x connector, Route around seat upholstery
    G15201244Courtesy of TESLA, INC.

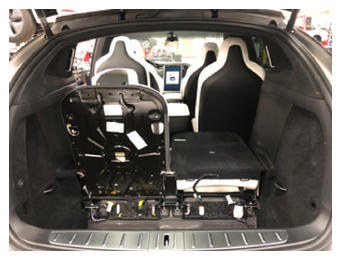

  15. Unfold LH 3rd row seat into upright position
    NOTE: Leave headrest in folded position
    G15201245Courtesy of TESLA, INC.

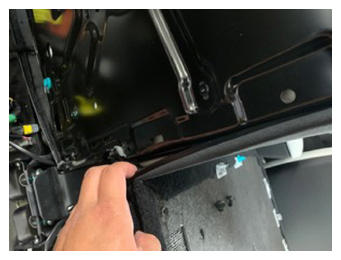

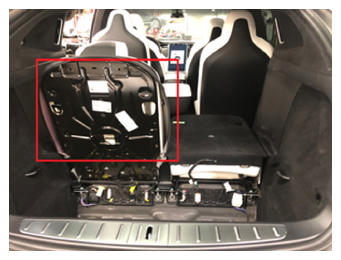

  16. Remove upper half of LH 3rd row seat upholstery
    NOTE: Release J-hook clip around edges of upholstery
    G15201246Courtesy of TESLA, INC.
    G15201247Courtesy of TESLA, INC.

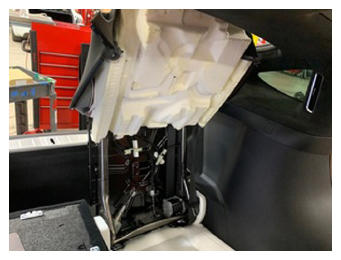

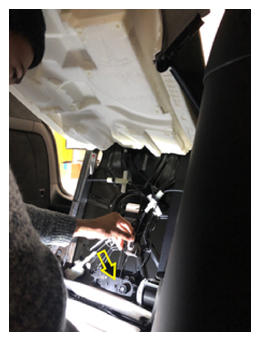

  17. From the 3rd row, pull seat cover and foam upward to access actuator
    NOTE: Use fold function to feed bottom of seat upholstery forward, Use caution to not snag J-hooks, Actuator is located on the front side of the seat back under the upholstery and cushion assembly
    G15201248Courtesy of TESLA, INC.
    G15201249Courtesy of TESLA, INC.
    G15201250Courtesy of TESLA, INC.

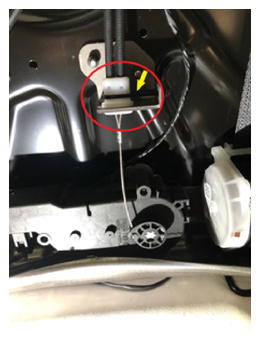

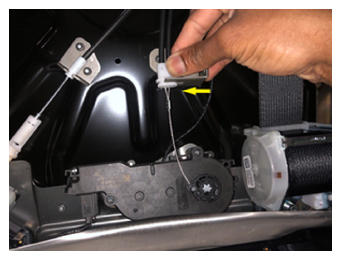

  18. Release seat recliner cable from bracket
    NOTE: Cut zip tie and slide cable to release
    G15201251Courtesy of TESLA, INC.
    G15201252Courtesy of TESLA, INC.
  19. Release seat recliner cable from LH 3rd row actuator pulley
    NOTE: Note direction of actuator pulley
    G15201253Courtesy of TESLA, INC.

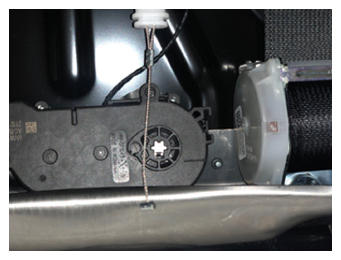

    G15201254Courtesy of TESLA, INC.
  20. Remove 3rd row seat recliner actuator pulley
    NOTE: Part is directional

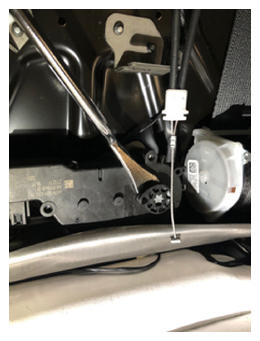

    G15201255Courtesy of TESLA, INC.

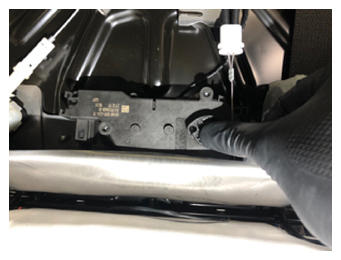

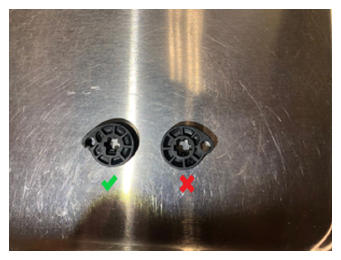

  21. Install new LH 3rd row recliner seat actuator pulley
    NOTE: Align pulley to actuator gear, Locking clip and pulley are directional
    G15201256Courtesy of TESLA, INC.
    G15201257Courtesy of TESLA, INC.

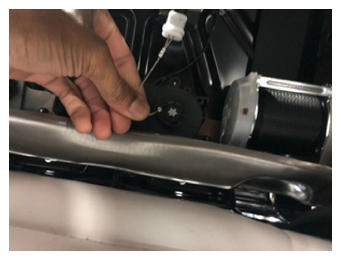

  22. Connect seat recliner cable to actuator pulley
    G15201258Courtesy of TESLA, INC.

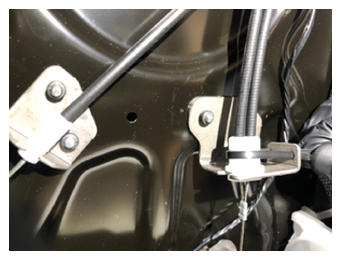

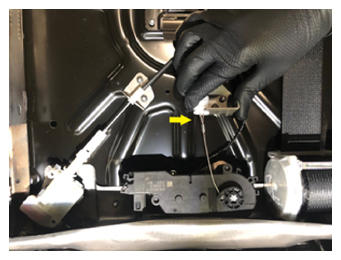

  23. Install seat recliner cable onto seat frame
    NOTE: Secure with cable tie
    G15201259Courtesy of TESLA, INC.
    G15201260Courtesy of TESLA, INC.

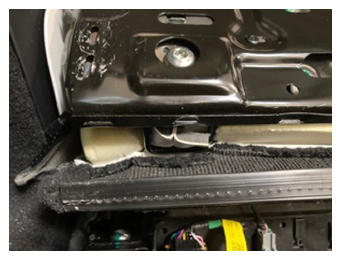

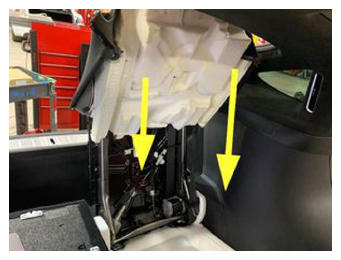

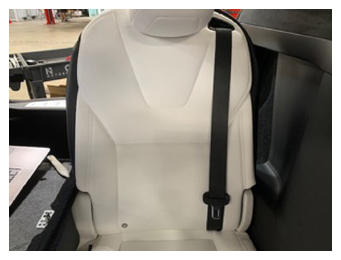

  24. Fold cushion and upholstery assembly down
    NOTE: 2x iso fix bars, Using folding function to assist with tucking upholstery, Ensure iso fix bars are fed through upholstery and seat belt does not get caught
    G15201261Courtesy of TESLA, INC.
    G15201262Courtesy of TESLA, INC.
    G15201263Courtesy of TESLA, INC.

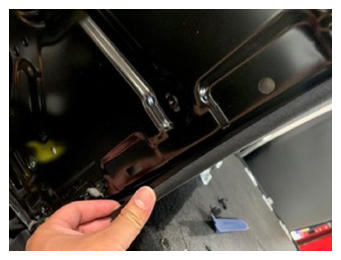

  25. Install upper half of LH 3rd row seat upholstery
    NOTE: Fold seat to workable position, Start at one end and fold J hook inwards until the other end of the upholstery is tucked, Press firmly along J hook to seat fully
    G15201264Courtesy of TESLA, INC.
    G15201265Courtesy of TESLA, INC.
  26. Disconnect LH 3rd row seat connector
    NOTE: 1x connector
    G15201266Courtesy of TESLA, INC.
  27. Route LH 3rd row seat connector through seat upholstery
    G15201267Courtesy of TESLA, INC.
  28. Connect LH 3rd row seat connector
    NOTE: 1x connector, 1x clip
    G15201268Courtesy of TESLA, INC.

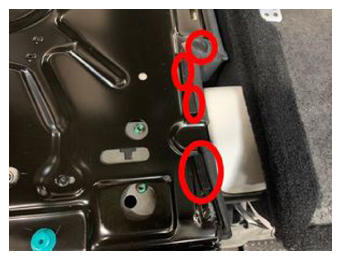

  29. Secure lower half of upholstery
    NOTE: 4x tabs, 2x, fir tree clips, 1x J hook
    G15201269Courtesy of TESLA, INC.

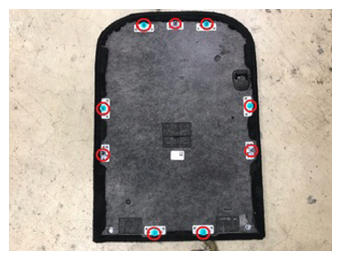

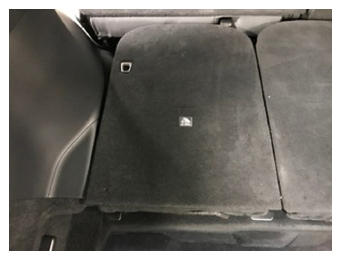

  30. Install rear seat back carpet onto LH 3rd row seat
    NOTE: 9x clips
    G15201270Courtesy of TESLA, INC.
    G15201271Courtesy of TESLA, INC.

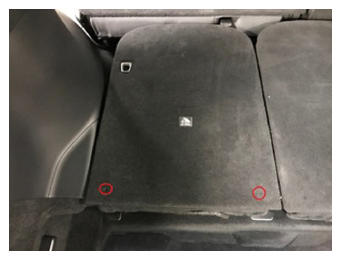

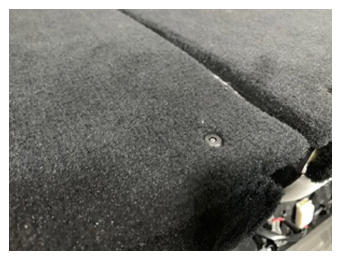

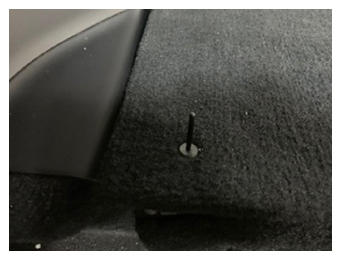

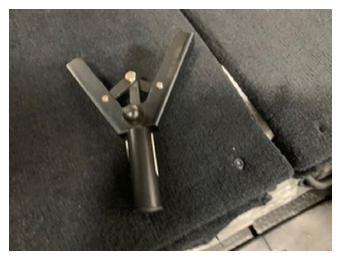

  31. Install rivets into LH 3rd row seat back carpet
    NOTE: 2x rivets, Plastics rivet replaces metal rivet/washer combo
    G15201272Courtesy of TESLA, INC.
    G15201273Courtesy of TESLA, INC.
    G15201274Courtesy of TESLA, INC.
    G15201275Courtesy of TESLA, INC.
  32. Reinstall front lower carpet trim panel
    NOTE: Secure 3rd row seat wiring harnesses to panel
    G15201276Courtesy of TESLA, INC.

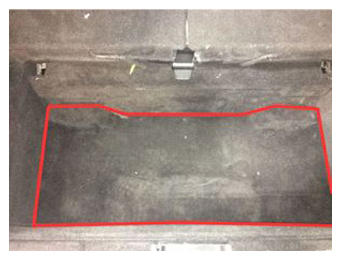

  33. Install trunk board
    G15201277Courtesy of TESLA, INC.

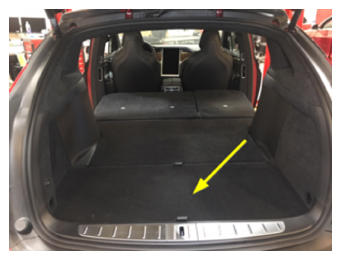

  34. Install rear load floor
    G15201278Courtesy of TESLA, INC.

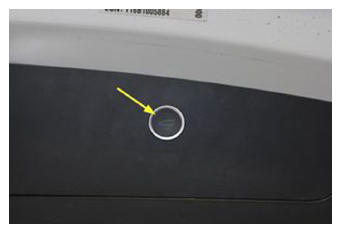

  35. Close liftgate
    G15201279Courtesy of TESLA, INC.

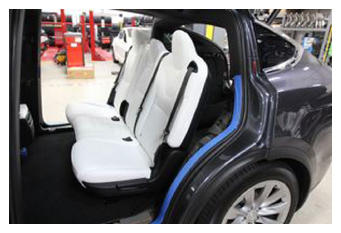

  36. Move LH 2nd row seat from the easy entry position to the regular upright seating position
    NOTE: Slide seat track backwards by pushing towards rear of vehicle, Fold upper seat backwards until locked in an upright position
    G15201280Courtesy of TESLA, INC.

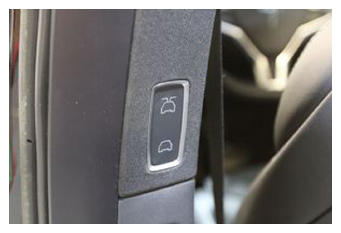

  37. Close LH Falcon door
    G15201281Courtesy of TESLA, INC.
