Luggage Hook Tie Down - 3rd Row Seat Back - LH - Remove And Replace: Removal
- Remove the 3rd row seat back carpet SEAT BACK CARPET - 3RD ROW - LH (REMOVE AND REPLACE) .

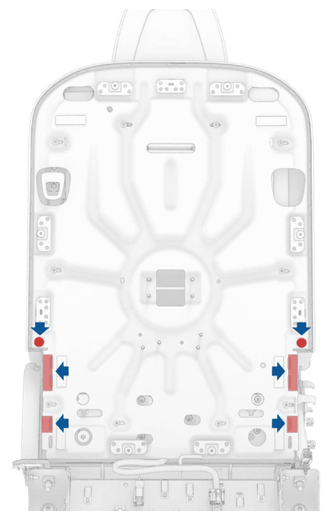

- Remove the leather from the seat back panel starting at the lower corner and working along the perimeter.
 Courtesy of TESLA, INC.
|

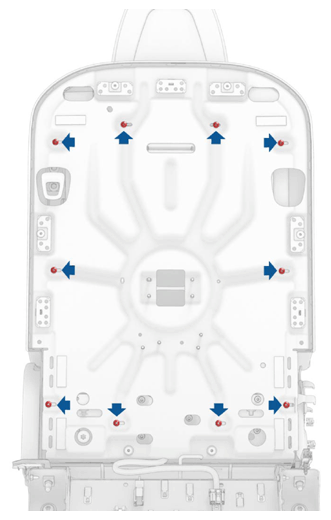

- Remove the seat back panel rivet heads.
 Courtesy of TESLA, INC.
|

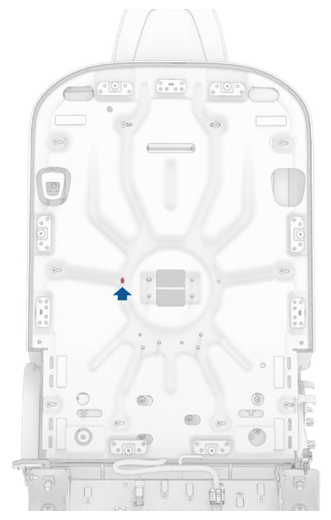

- Release the electrical harness anchor from the seat back panel.
 Courtesy of TESLA, INC.
|

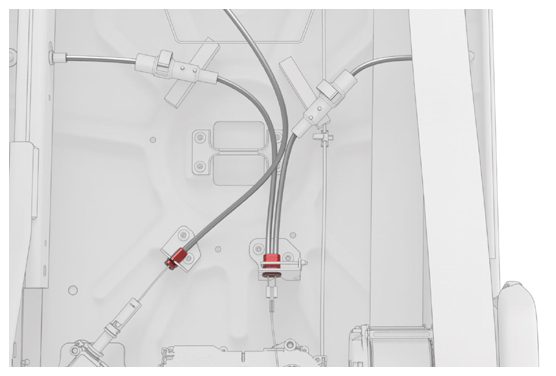

- Carefully separate the seat back panel from the seat frame, and then release the cables and zip ties from the panel.
 Courtesy of TESLA, INC.
|

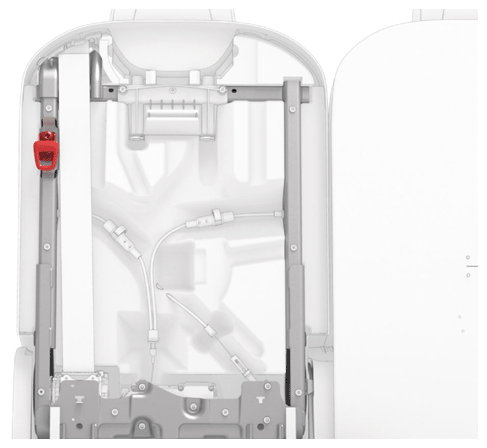

- Completely remove the seat back panel to access the luggage hook tie down.
 Courtesy of TESLA, INC.
|

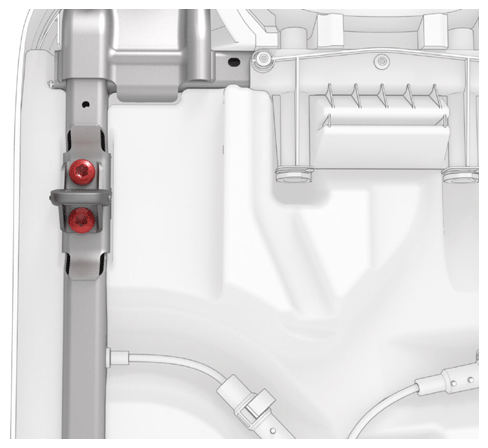

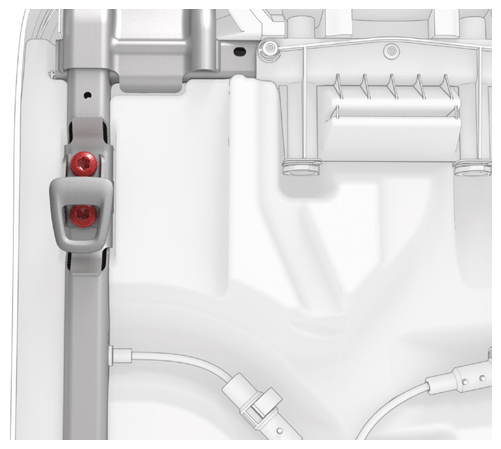

- Remove the screws that attach the luggage hook tie down.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
