Sensor - Position - Seat Track - 2nd Row Seat - LH (Monopost) - Remove and Replace: Removal

  1. Open all doors and the liftgate.
  2. Move both front seats forward.
  3. Remove 2nd row floor mat.
  4. Move both 2nd row seats forward using easy entry.

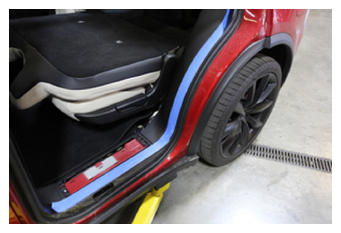

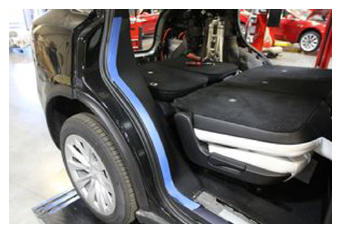

  5. Apply painters tape to LH and RH racetrack to avoid damage.
    G15201153Courtesy of TESLA, INC.
    G15201154Courtesy of TESLA, INC.
  6. Remove the LH and RH rear sill panel trim TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  7. Remove the LH and RH lower C-pillar trim Trim - C-Pillar - Lower - LH (Remove And Replace) .
  8. Fold down the LH and RH 3rd row seats.
  9. Remove LH and RH rear trunk side garnish GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
  10. Remove the LH and RH mid C-pillar trim TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .

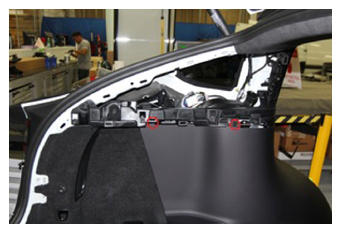

  11. Remove the screws (x2) that attach the C-pillar lower panel to LH and RH parcel shelf support (torque 2 N.m).
    G15201155Courtesy of TESLA, INC.

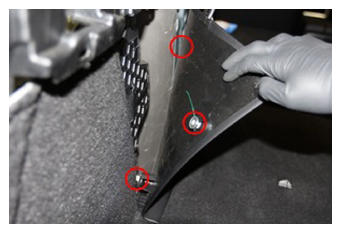

  12. Release the clips (x2) and magnet that attach the rear edge of LH and RH C-pillar lower panel to the rear trunk side carpet panel, and then pull the top edge of C-pillar lower panel out.
    G15201156Courtesy of TESLA, INC.

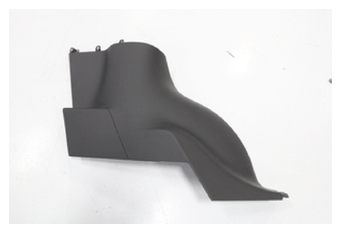

  13. Release the clips (x9) that attach the LH and RH C-pillar lower panel along the front edge, and then remove the panel.
    G15201157Courtesy of TESLA, INC.

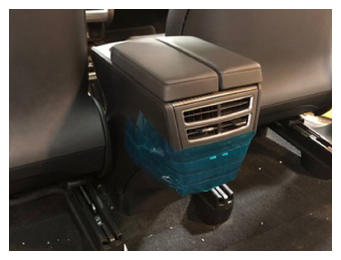

  14. Put tape on the rear center console cup holder trim to prevent it from damage.
    G15201158Courtesy of TESLA, INC.
  15. Move both 2nd row seats rearward using easy entry.

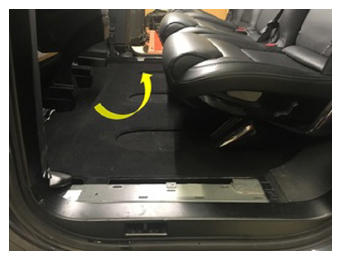

  16. Release the clips (x4), tilt the front edge of the second row floor panel 3 upwards, and then remove it in vertical position.
    NOTE: Recommend assistance.
    CAUTION: Take precautions not to damage the rear of the center console during removal.
    G15201159Courtesy of TESLA, INC.
  17. Move the LH second row seat forward.

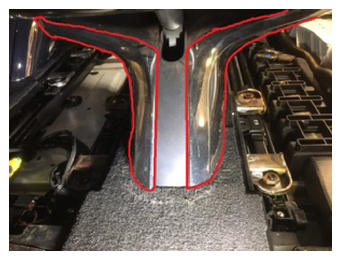

  18. Remove the clips (x8) that attach the podium trim panels to the LH 2nd row seat.
    G15201160Courtesy of TESLA, INC.
  19. Move the LH second row seat fully backward.

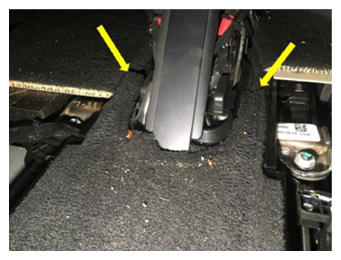

  20. Peel back the 2nd row seat sliding panel carpet stag beetle carpet.
    G15201161Courtesy of TESLA, INC.

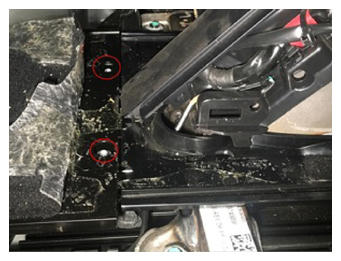

  21. Remove the screws (x2) that attach the front sliding panel to the seat tracks of the LH rear seat.
    G15201162Courtesy of TESLA, INC.

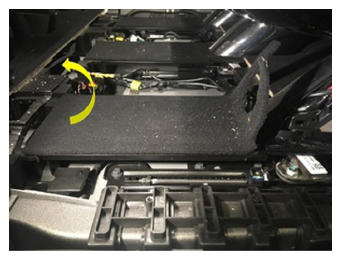

  22. Remove the front sliding panel from the seat tracks of the LH rear seat.
    G15201163Courtesy of TESLA, INC.

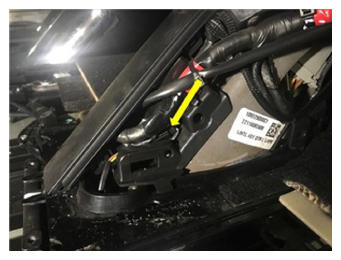

  23. Maneuver the seat track sensor connector out from the installed position.
    G15201164Courtesy of TESLA, INC.

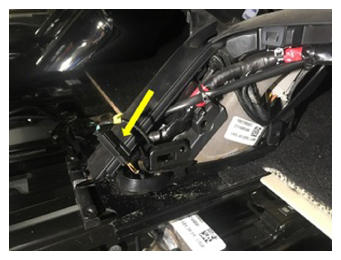

  24. Disconnect the seat track position sensor connector.
    G15201165Courtesy of TESLA, INC.

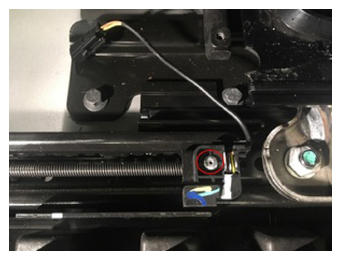

  25. Remove the rivet that attaches the seat track sensor to the seat track.
    NOTE: Use a 4 mm drill to remove the top portion of the rivet.
    G15201166Courtesy of TESLA, INC.

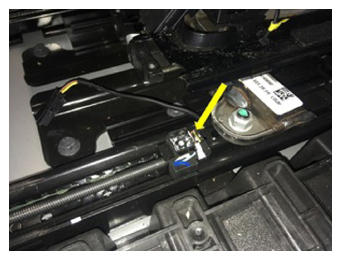

  26. Remove the seat track position sensor from the seat track.
    G15201167Courtesy of TESLA, INC.

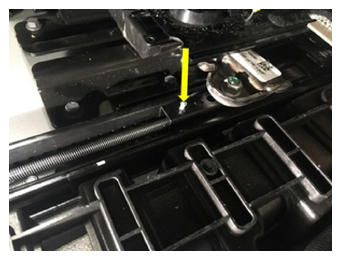

  27. Remove the remaining rivet from the seat frame.
    G15201168Courtesy of TESLA, INC.

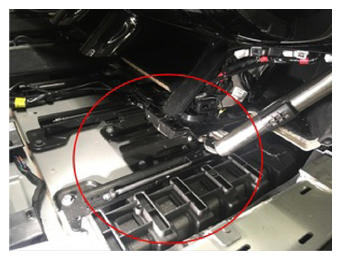

  28. Vacuum all the aluminum filings.
    G15201169Courtesy of TESLA, INC.
