Trim - Cushion - 2nd Row - LH (Bench Seat) - Remove And Replace: Removal
- Remove the LH 2nd row bench seat assembly. See SEAT ASSEMBLY - 2ND ROW - LH (WITH 2ND ROW BENCH SEATS) (REMOVE AND INSTALL) .
- Return the LH bench seat to an upright position.
- Remove the RH side seat cover from the LH bench seat.
 Courtesy of TESLA, INC.
|

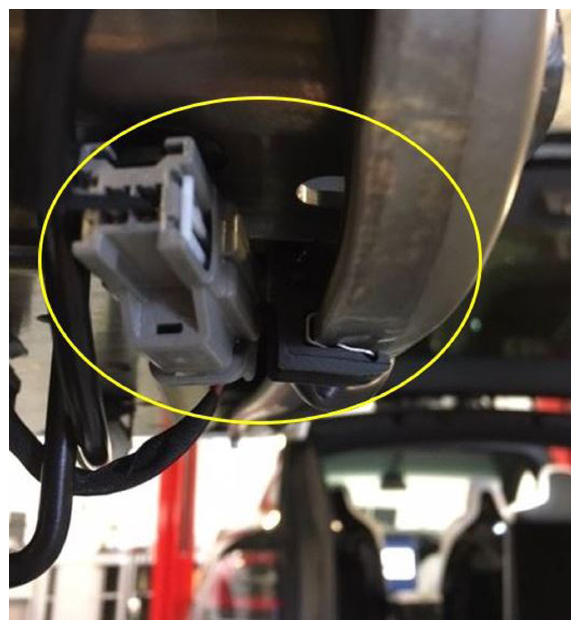

- Disconnect the center seat buckle connector.
 Courtesy of TESLA, INC.
|

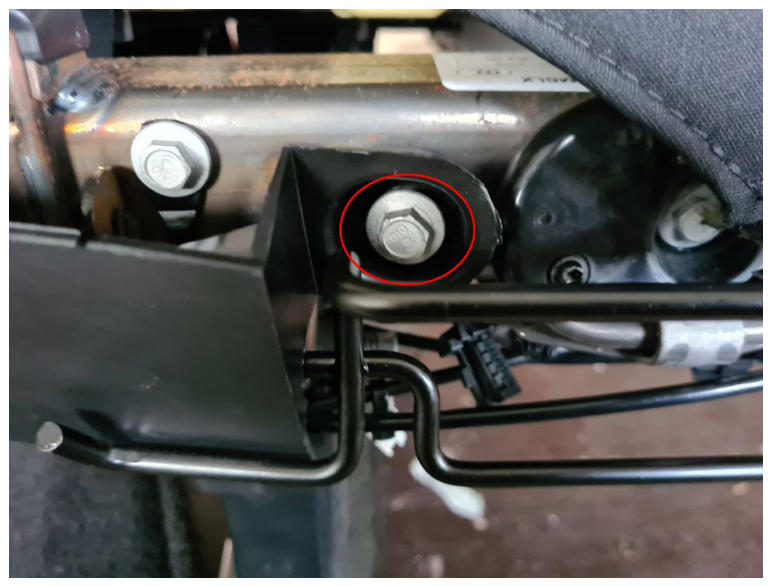

- Loosen the bolt that attaches the center seat buckle to the seat frame (torque 45 N.m), and then remove the seat buckle.

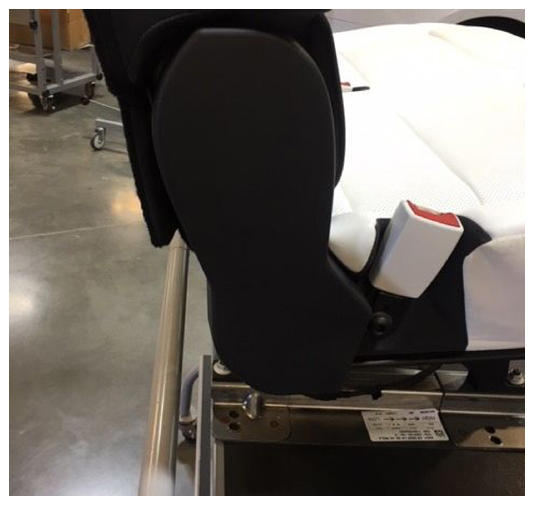

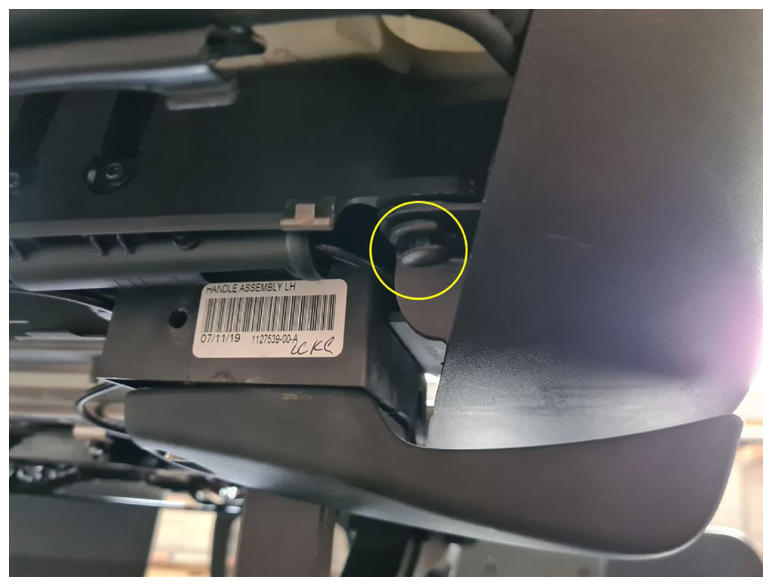

- Push the outer side of the LH seat cushion inward and loosen the spring clip of the seat assembly release handle, and then remove the release handle.
 Courtesy of TESLA, INC.
|

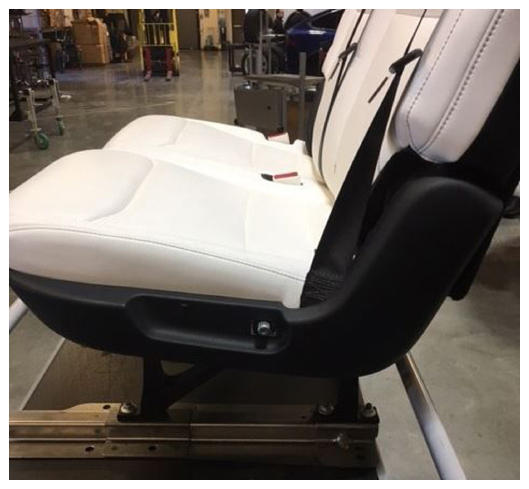

- Release the push clip at the front of the outer side seat trim and loosen the bolt at the rear (torque 6 N.m), and then remove the outer side trim.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Loosen the bolt (torque 45 N.m) of the LH seat belt, and then remove the seat belt from the LH seat.

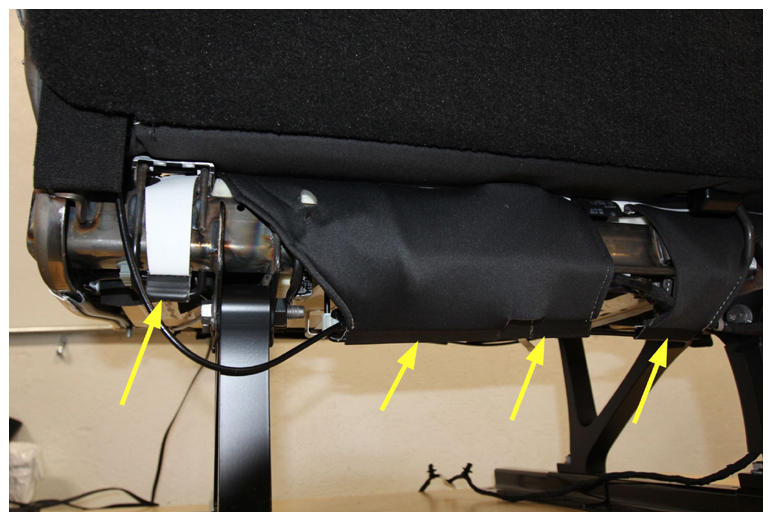

- Loosen the J-hooks (x6) that attach the rear lower seat cover to the seat, and then release the lower cover.
 Courtesy of TESLA, INC.
|

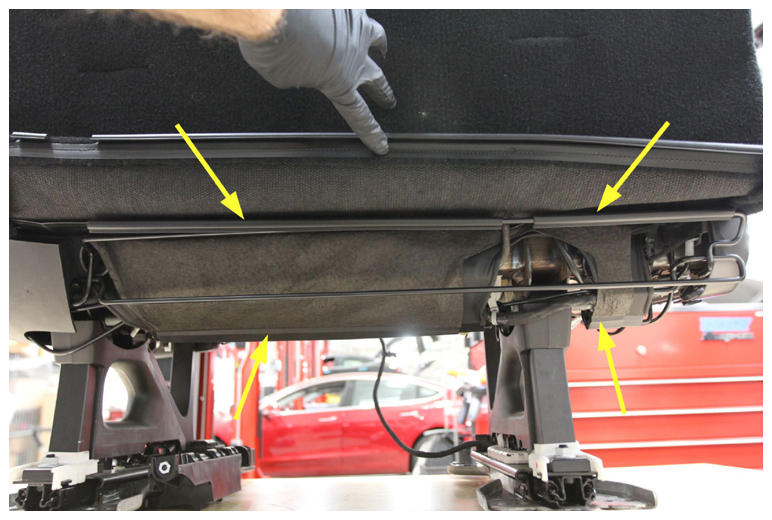

- Loosen the J-hooks (x11) that attach the upholstery to the underside of the bench seat.
 Courtesy of TESLA, INC.
|

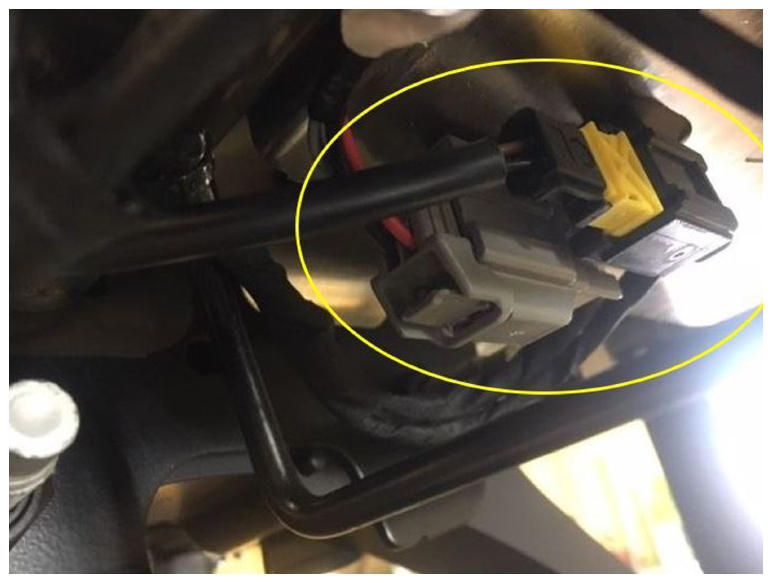

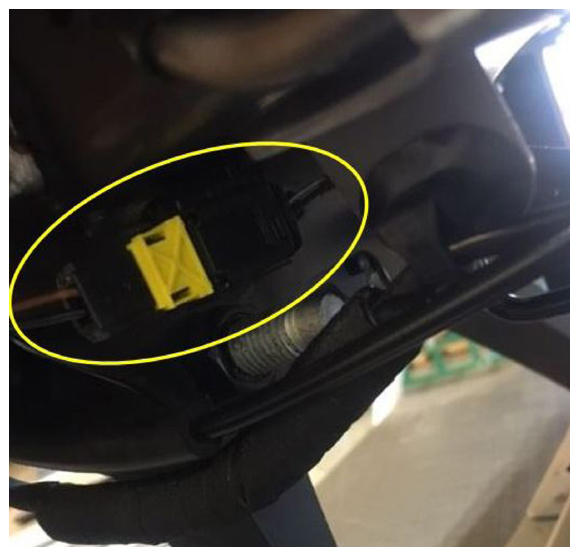

- Disconnect the connectors (x4) for the seat heat pads and occupancy sensors.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the cushion trim assembly from the LH rear seat.
