Cover - Seat Back - 2nd Row - LH (Without 2nd Row Bench Seats) - Remove And Replace: Removal

  1. Open both rear doors.
  2. Use the Easy Entry buttons to move the seat fully forward.
  3. Release the clips that secure the seat back, but do not fully remove the back at this time.
    G15201967Courtesy of TESLA, INC.

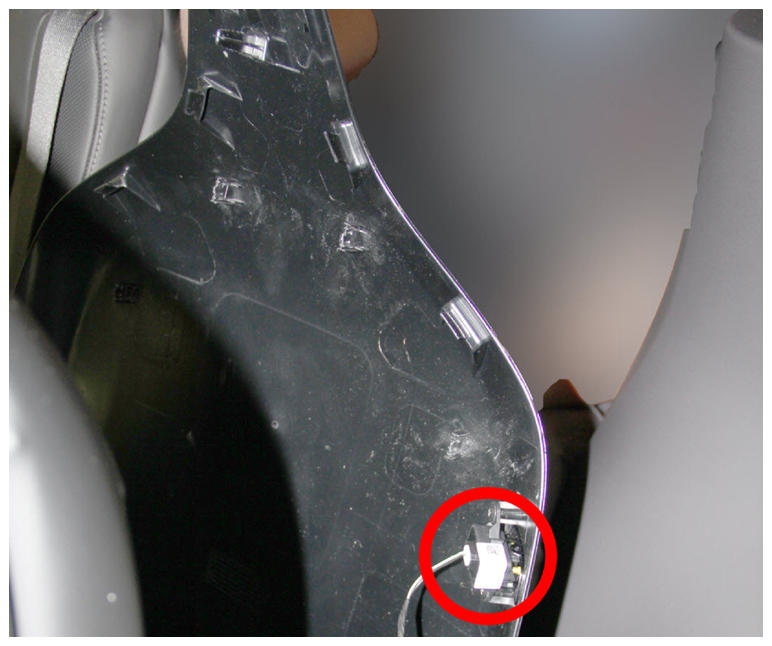

  4. Disconnect the harness for the Easy Entry buttons.
    G15201968Courtesy of TESLA, INC.
