Seat Assembly - 2nd Row - LH (With Broken Seat Track Motor) - Remove And Install: Installation

WARNING: Ensure that 12V is still disconnected.
  1. Install a new outer track onto the seat TRACK - OUTER - 2ND ROW SEAT - LH (REMOVE AND REPLACE) .
    NOTE: Do not fully torque that nuts that secure the track at this time.
  2. Vacuum the seat and the interior of the vehicle to remove any shavings from drilling the old track.
  3. Position the seat inside the vehicle.
  4. Reconnect the seat harnesses.
  5. Reconnect 12V power.
  6. Fully move the seat backward and forward.
  7. Fully torque the nuts that secure the outer track (torque 40 N.m).
  8. Fully track the seat backward and forward.
  9. Reinstall bolts for the rear of the seat in the following order. If any threads are damaged, discard the fastener and use a rivnut.
    • Bolts 1-4: 33 N.m
    • Bolts 5 & 6: 22 N.m

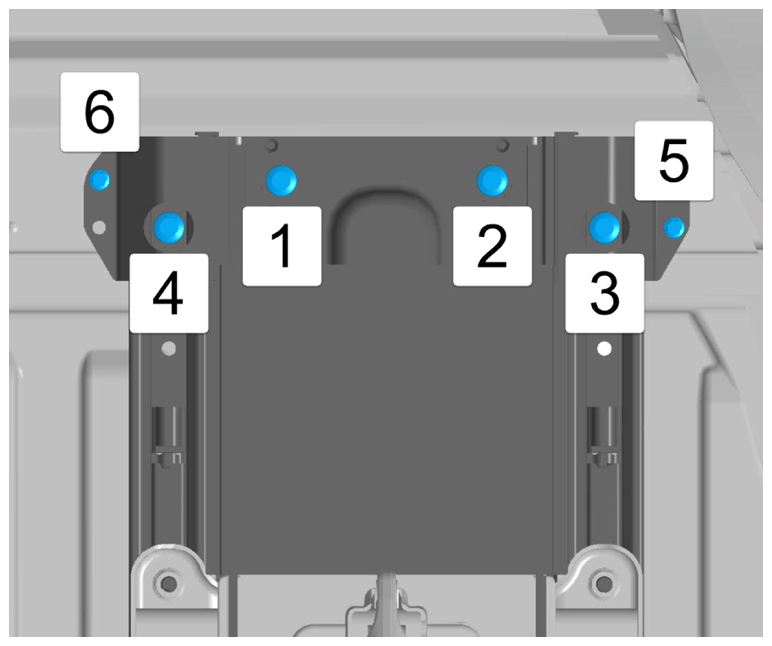

    Fig 1: Rear Of Seat Bolts Tightening Sequence
    G15201476Courtesy of TESLA, INC.
  10. Install new bolts for the front of the seat in the following order (torque 33 N.m):

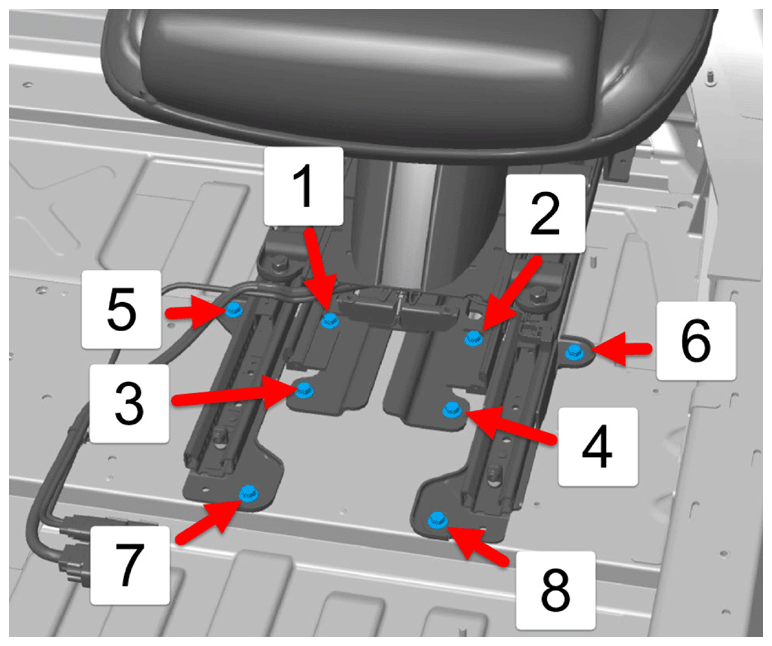

    Fig 2: Front Of Seat Bolts Tightening Sequence
    G15201475Courtesy of TESLA, INC.
  11. Unlock the vehicle gateway for diagnostic communication, if not already unlocked. See Gateway Unlock.
  12. Using Toolbox 3:
    • Select the Actions  tab and search for "Seat Install Mode".
    • Select the ODIN routine PROC_BCREAR_X_SEAT-INSTALL-MODE-OFF  , and then click the link of the routine.
    • Click RUN  , and allow the routine to complete.
  13. Using Toolbox 3:
    • Select the Actions  tab and search for "Calibrate Pitch".
    • Select the ODIN routine PROC_BCS2L_R2-L_CALIBRATE-S2L-PITCH  , and then click the link of the routine.
    • Click RUN  , and allow the routine to complete.
  14. Using Toolbox 3:
    • Select the Actions  tab and search for "Calibrate Track".
    • Select the ODIN routine PROC_BCS2L_R2-L_CALIBRATE-S2L-TRACK  , and then click the link of the routine.
    • Click RUN  , and allow the routine to complete.
  15. Install a new carpet at the base of the seat.
  16. Reinstall all components that were removed for access.
