Recliner Cable - 2nd Row - RH (With 2nd Row Bench Seats) - Remove And Replace: Removal
- Remove the 2nd row RH bench seat. See SEAT ASSEMBLY - 2ND ROW - RH (WITH 2ND ROW BENCH SEATS) (REMOVE AND INSTALL)
- Unfold the seat assembly.

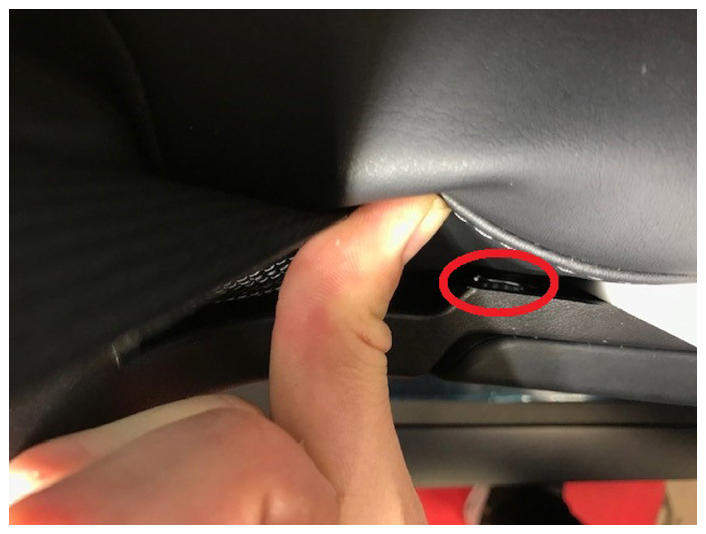

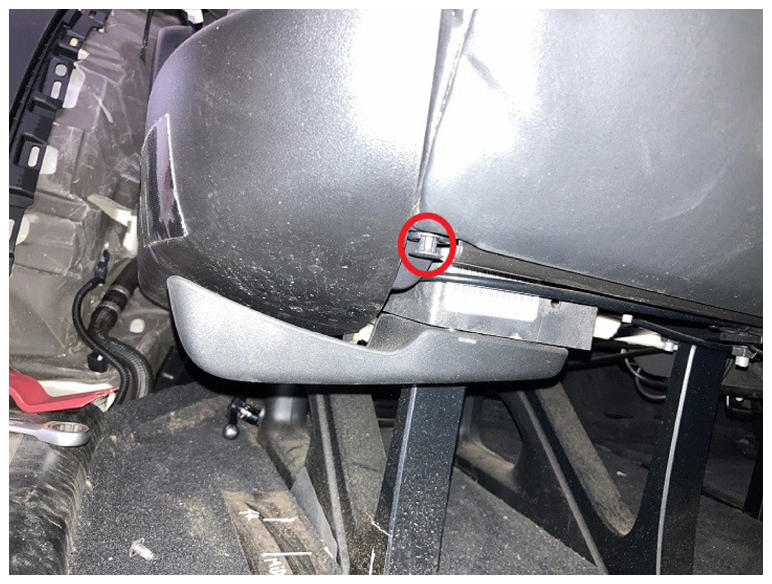

- Push the outer side of the RH seat cushion inward and loosen the spring clip of the seat assembly release handle, and then remove the release handle.
 Courtesy of TESLA, INC.
|

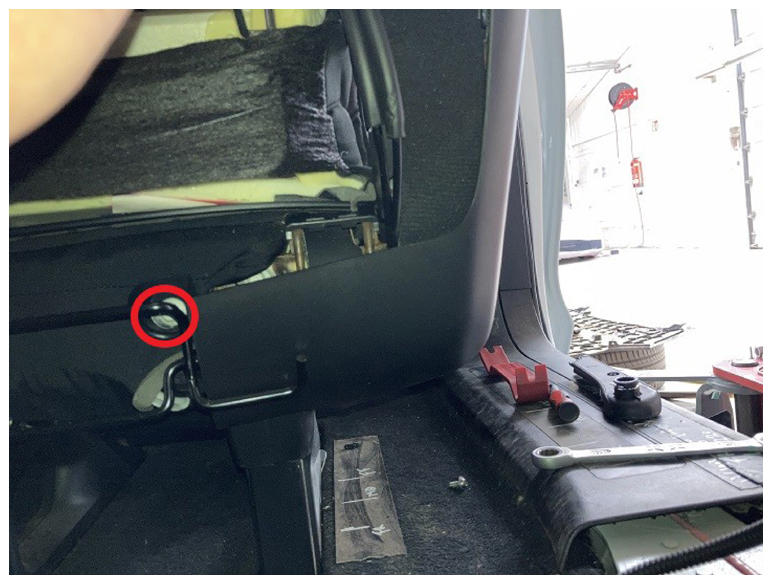

- Release the push clip at the front of the outer side seat trim and loosen the bolt at the rear (torque 2.5 N.m), and then remove the outer side trim.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Loosen the bolt (torque 45 N.m) of the RH seat belt, and then remove the seat belt from the RH seat.

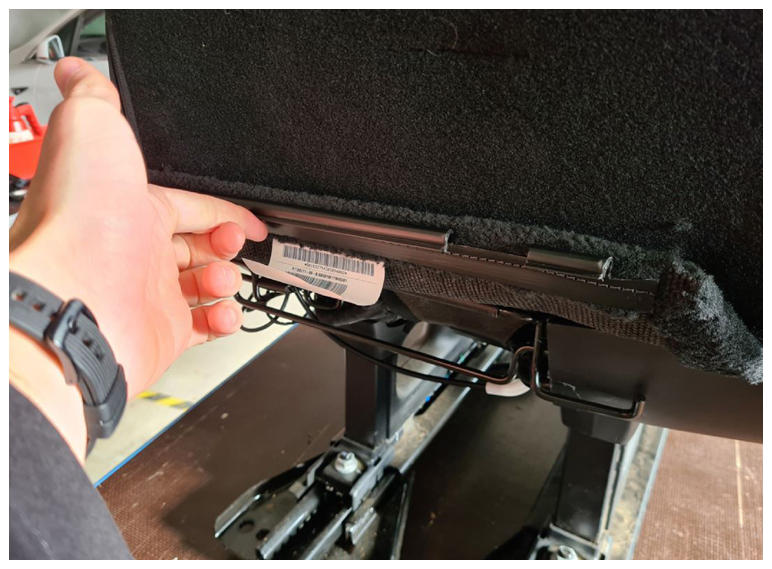

- Loosen the J-hooks (x2) that attach the rear lower seat cover to the seat, and then release the lower cover.
 Courtesy of TESLA, INC.
|

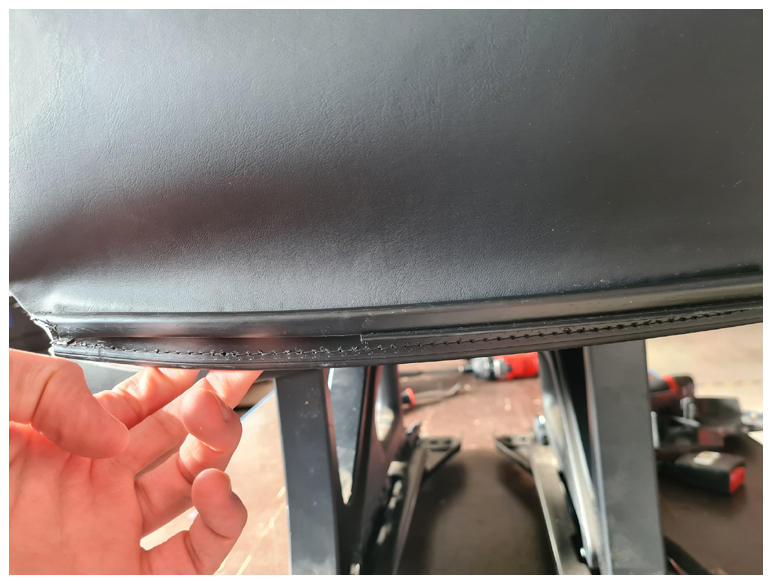

- Loosen the J-hooks (x7) that attach the upholstery to the underside of the bench seat.
 Courtesy of TESLA, INC.
|
- Lay the RH seat bench on it's back.
- Lift the seat cushion from the outer side.

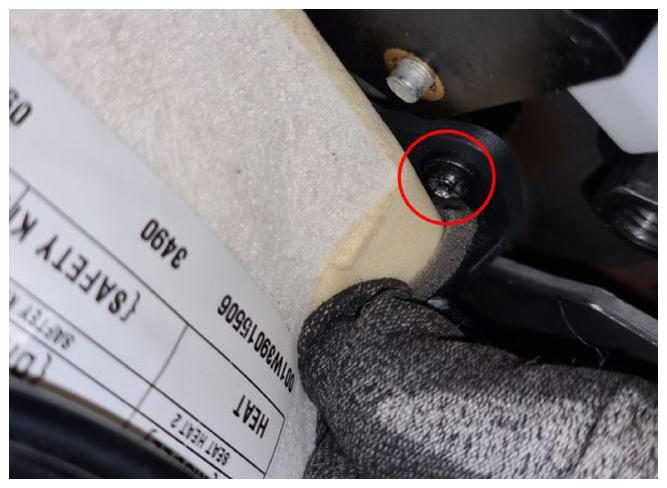

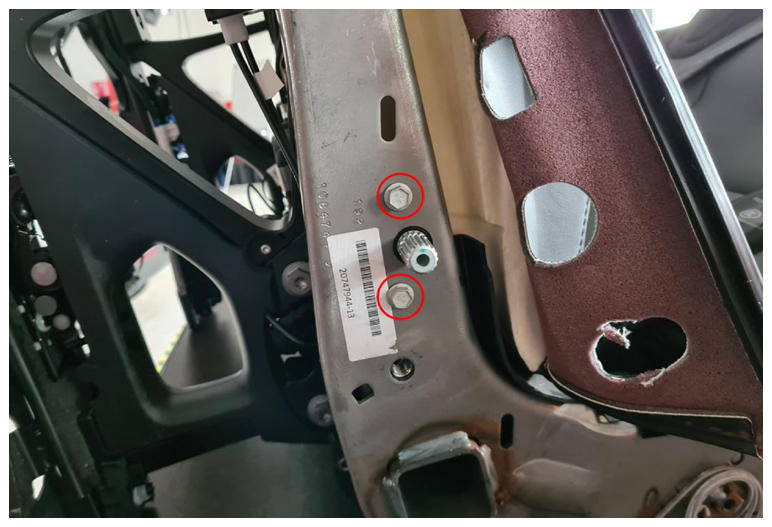

- Remove the screw (torque 0.3 N.m) and bolts (x2) (torque 0.5 N.m) that attach the recliner box cable assembly to the seat frame, and then remove the recliner box cable assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Open all cable clips that attach the recliner cable to the frame, and then remove the recliner cable from the cable clips.

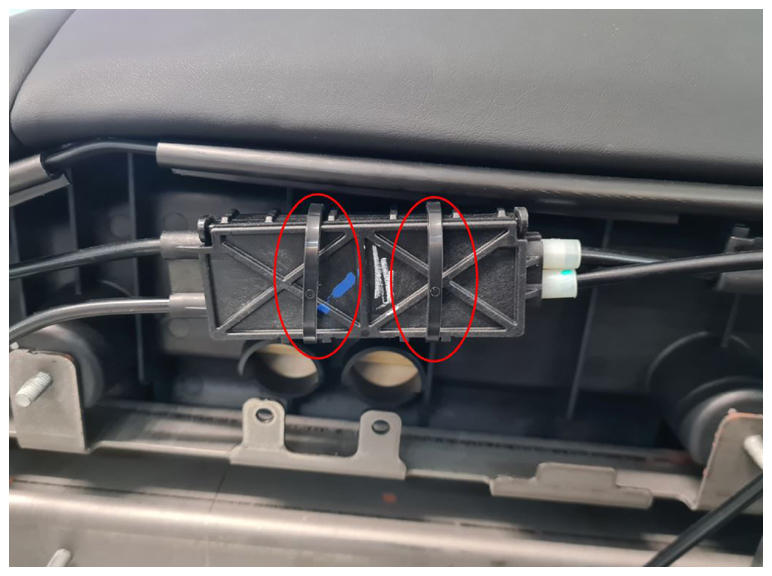

- Remove the cable ties from the seat recliner splitter box, and then open the splitter box lid.
 Courtesy of TESLA, INC.
|

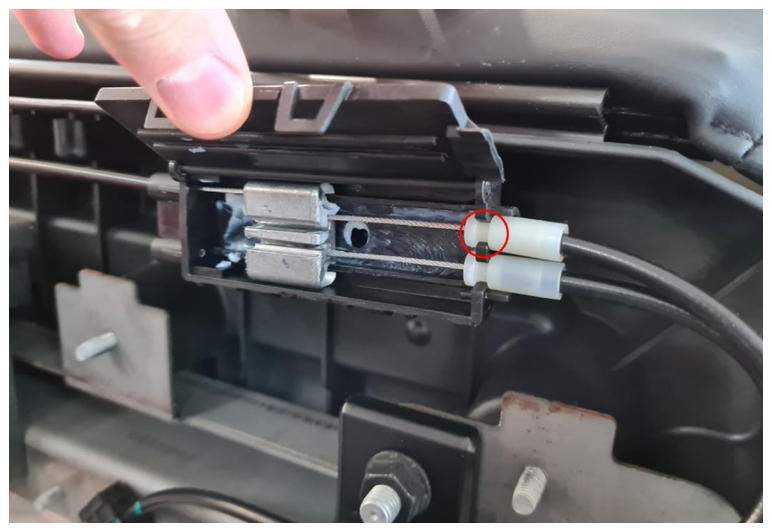

- Remove the upper recliner cable from the inside of the seat recliner splitter box.
 Courtesy of TESLA, INC.
|

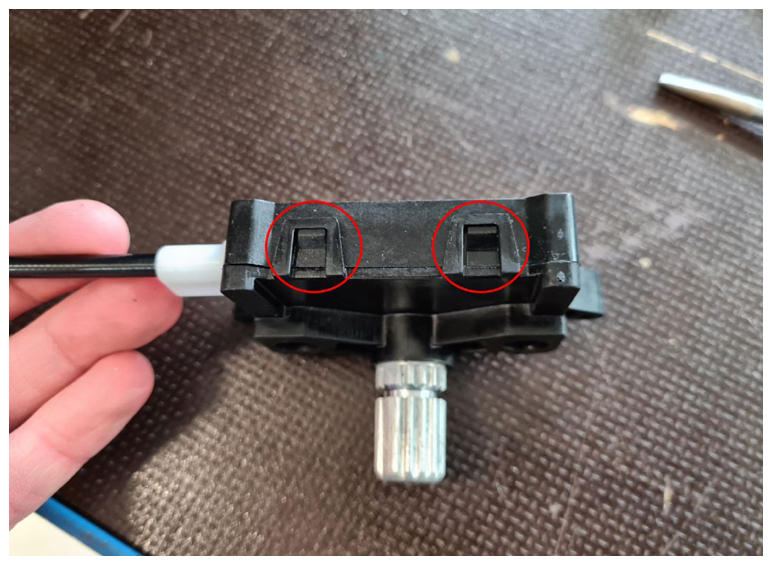

- Loosen the tabs (x4) of the seat recliner cable assembly, and then open the cable assembly on the gear actuator side.
 Courtesy of TESLA, INC.
|

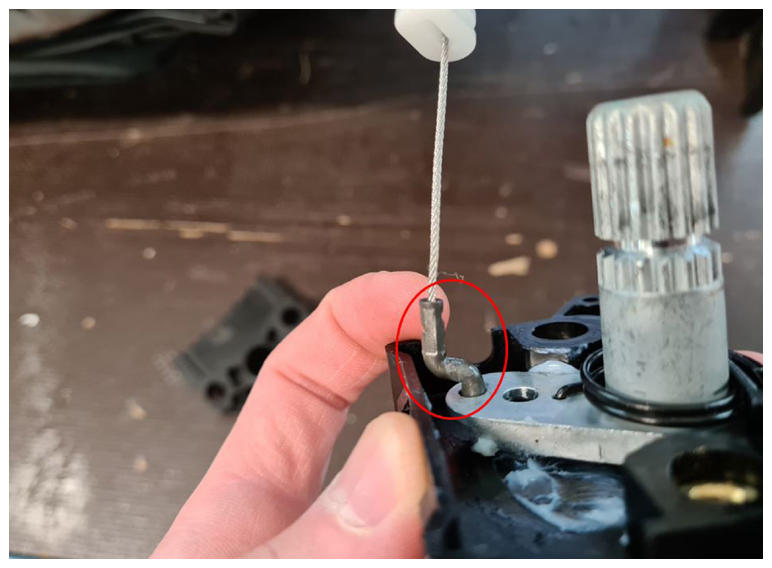

- Remove the Z-shaped cable from the gear actuator.
 Courtesy of TESLA, INC.
|
- Remove the seat recliner cable from the seat.
