Latch Actuator - 2nd Row Seat - LH - Remove And Replace: Removal

  1. Remove the LH 2nd row seat back cover Cover - Seat Back - 2nd Row - LH (Without 2nd Row Bench Seats) (Remove And Replace) .

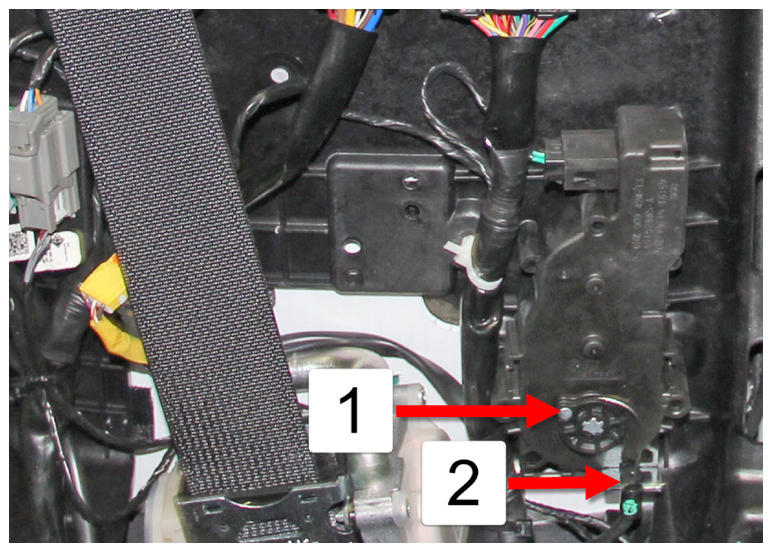

  2. Remove the latch cable from the actuator, then remove the cable from the bracket.
    G15201374Courtesy of TESLA, INC.
    1  Actuator latch cable
    2  Cable bracket

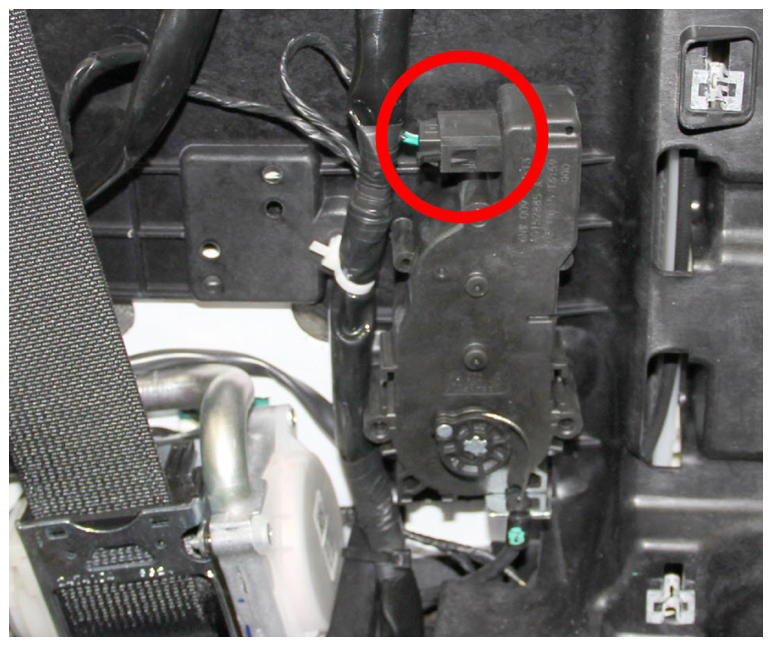

  3. Disconnect the harness from the latch actuator.
    G15201376Courtesy of TESLA, INC.

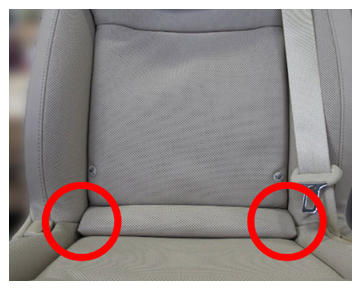

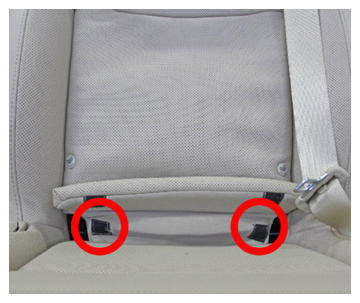

  4. Gently lift the bottom corners of the 2nd row seat backrest cushion, then gently pull up on the bottom corners of the cushion to expose the seat internals.
    G15201377Courtesy of TESLA, INC.
    G15201378Courtesy of TESLA, INC.
    NOTE: Do not remove the cushion from the seat; the seat heater harness remains connected during this procedure.

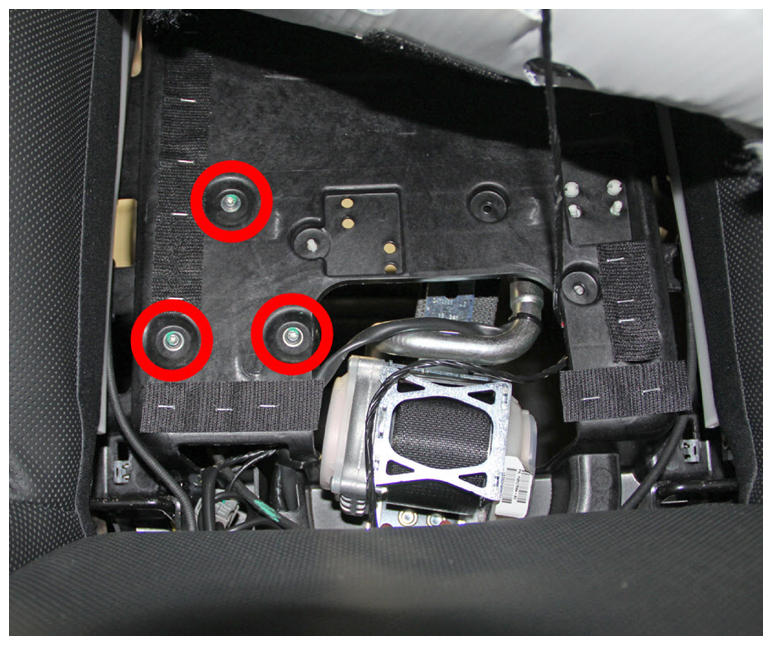

  5. Working from the front of the seat, remove the fasteners that secure the latch actuator (torque 1 N.m).
    G15201379Courtesy of TESLA, INC.

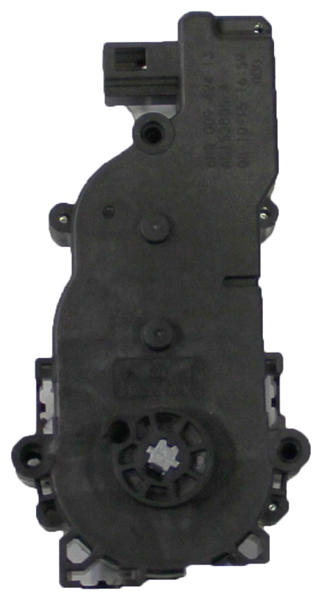

  6. Working from behind the seat, remove the latch actuator.
    G15201380Courtesy of TESLA, INC.
