Assembly - Cover - Footwell - Driver's (RHD) - Remove and Replace: Removal

  1. Open the RH front door.
  2. Remove the RH front floor mat.
  3. Partially remove the RH center console side panel as illustrated.

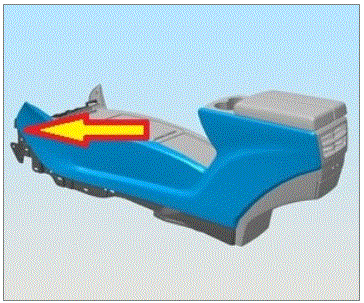

    G00635412Courtesy of TESLA, INC.
  4. Release the clips (x6) to remove the RH center console closeout extension.

    Tip:  If any clips are broken, remove and replace them.

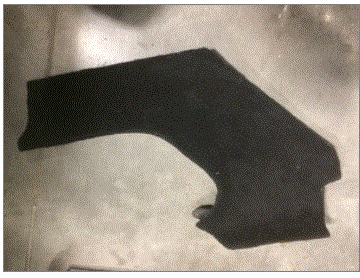

    G00635413Courtesy of TESLA, INC.
  5. Remove the driver footwell cover.

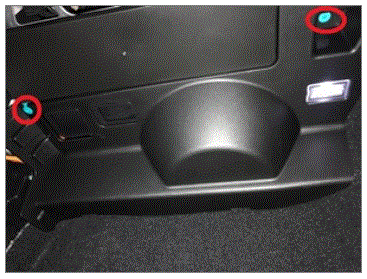

    G00635414Courtesy of TESLA, INC.

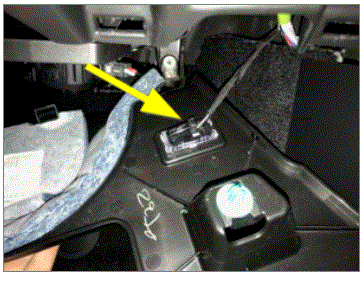

    G00635415Courtesy of TESLA, INC.
