Chime - Rear Door - LH - Remove And Replace: Removal
- Remove the speaker grille Grille - Speaker - Rear - LH (Remove And Replace)

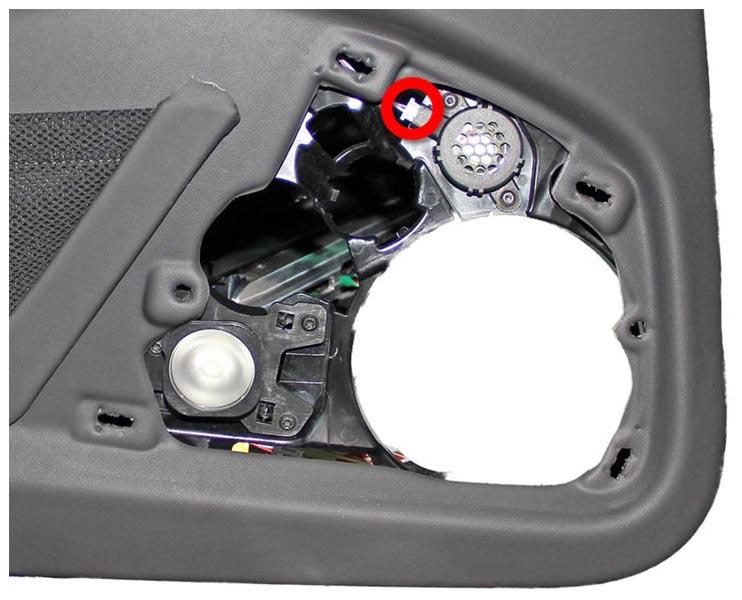

- Disconnect the electrical connector from the rear door chime.

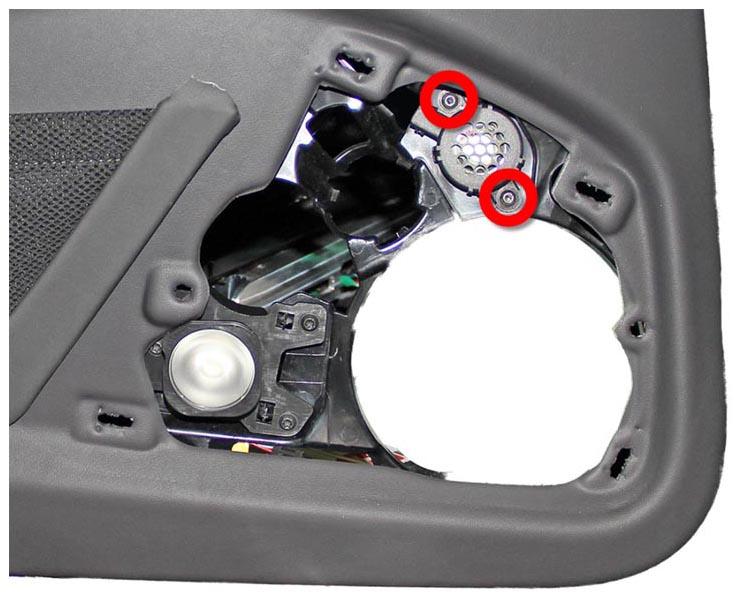

- Remove the screws (x2) that secure the rear door chime to the rear door trim panel (torque 2 N.m).
- Remove the rear door chime from the vehicle.
