Harness - Seat Assembly - 2nd Row - LH - (With 2nd Row Bench Seat) - Remove and Replace: Remove

  1. Remove the LH second row seat bench. See SEAT ASSEMBLY - 2ND ROW - LH (WITH 2ND ROW BENCH SEATS) (REMOVE AND INSTALL) .
  2. Remove the screws (x3) that attach the RH riser outer cover to the RH riser.
    • Top screw - 4 N.m (3 ft-lbs)
    • Bottom screws - 2 N.m (1.5 ft-lbs)
    G15202813Courtesy of TESLA, INC.

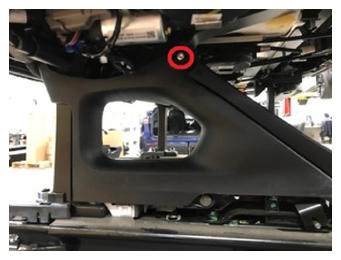

  3. Remove the screw that attaches the RH riser inner cover to the RH riser.

    4 N.m (2.9 ft-lbs)

    G15202814Courtesy of TESLA, INC.

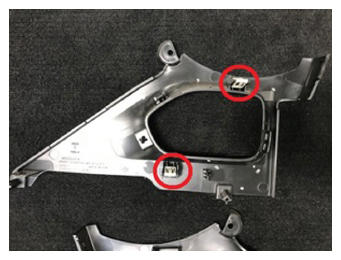

  4. Release the clips (x2) that attach the outer riser cover to the inner riser cover, and then remove the covers from the RH riser.
    G15202815Courtesy of TESLA, INC.
    G15202816Courtesy of TESLA, INC.

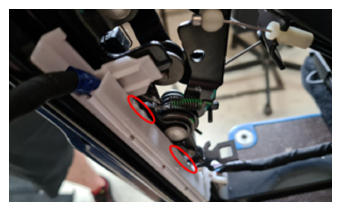

  5. Remove LH seat wiring harness out of its guiding bracket.
    G15202817Courtesy of TESLA, INC.
  6. Disconnect the LH seat track position sensor.
    G15202818Courtesy of TESLA, INC.
  7. Release the clip that attaches the seat harness to the middle frame section.
    G15202819Courtesy of TESLA, INC.
  8. Remove the LH seat lower foot trim cover.
    NOTE: 1x J-hook
    G15202820Courtesy of TESLA, INC.
  9. Disconnect the LH seat inner cable release motor connector.
    G15202821Courtesy of TESLA, INC.
  10. Release the clip that attaches the LH seat harness to the center section of the frame.
    G15202822Courtesy of TESLA, INC.

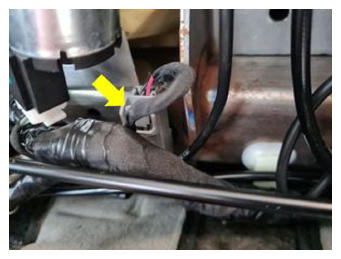

  11. Disconnect the LH seat center buckle sensor.
    G15202823Courtesy of TESLA, INC.

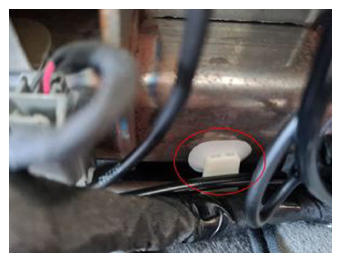

  12. Release the clip that attaches the LH seat harness to the center section of the frame.
    G15202824Courtesy of TESLA, INC.
  13. Disconnect the LH seat controller module connectors.
    G15202825Courtesy of TESLA, INC.
  14. Disconnect LH seat outer cable release motor connector.
    G15202826Courtesy of TESLA, INC.
  15. Disconnect the LH seat outer occupancy sensor connector.
    G15202827Courtesy of TESLA, INC.
  16. Release the clip that attaches the LH seat harness to the outer frame section.
    G15202828Courtesy of TESLA, INC.
  17. Disconnect the LH seat outer seat airbag connector.
    G15202829Courtesy of TESLA, INC.

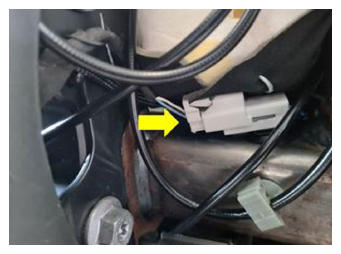

  18. Disconnect the LH seat outer buckle sensor connector.
    G15202830Courtesy of TESLA, INC.

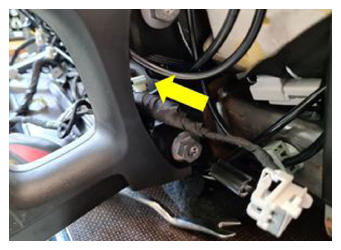

  19. Slide the LH seat harness through the seat outer riser.
    G15202831Courtesy of TESLA, INC.
  20. Disconnect the LH seat inner side airbag, occupancy sensor and cable release motor connectors.
    G15202832Courtesy of TESLA, INC.
  21. Release the clip that attaches the LH seat harness to the inner upper side.
    G15202833Courtesy of TESLA, INC.
  22. Remove the LH seat back - back board. See BACK BOARD - SEAT BACK - 2ND ROW - LH (BENCH SEAT) .

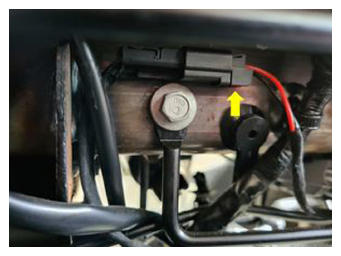

  23. Disconnect the connector of the inner easy entry micro switch for the LH seat recliner.
    G15202834Courtesy of TESLA, INC.
  24. Release the clip that attaches the LH seat harness to the rear side of the seat frame.
    G15202835Courtesy of TESLA, INC.
  25. Disconnect the connector of the LH seat center heat pad.
    G15202836Courtesy of TESLA, INC.
  26. Disconnect the connector of the LH seat outer heat pad.
    G15202837Courtesy of TESLA, INC.

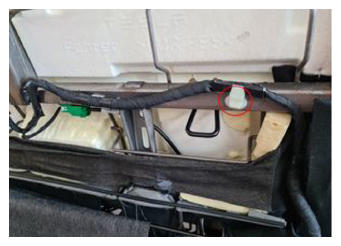

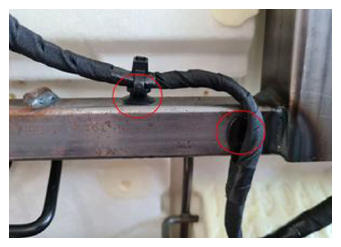

  27. Release the clips (x3) that attach the LH seat harness to the rear side of the seat frame.
    G15202838Courtesy of TESLA, INC.
    G15202839Courtesy of TESLA, INC.
  28. Disconnect the connectors of the LH seat outer side curtain airbag and the outer pretensioner.
    G15202840Courtesy of TESLA, INC.
  29. Disconnect the connector of the LH seat easy entry switch.
    G15202841Courtesy of TESLA, INC.

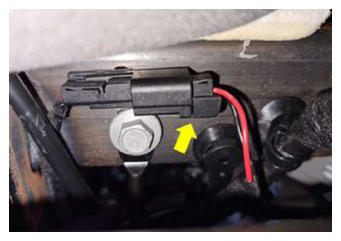

  30. Disconnect the connector of the outer easy entry micro switch for the LH seat recliner.
    G15202842Courtesy of TESLA, INC.
  31. Release the clip that attaches the LH seat harness to the rear side of the seat frame.
    G15202843Courtesy of TESLA, INC.
  32. Remove LH seat main harness.
