Harness - Rear Fascia - Remove and Replace: Removal

  1. Remove the rear fascia. See FASCIA ASSEMBLY - REAR (REMOVE AND INSTALL)
  2. Place the fascia on a padded surface.

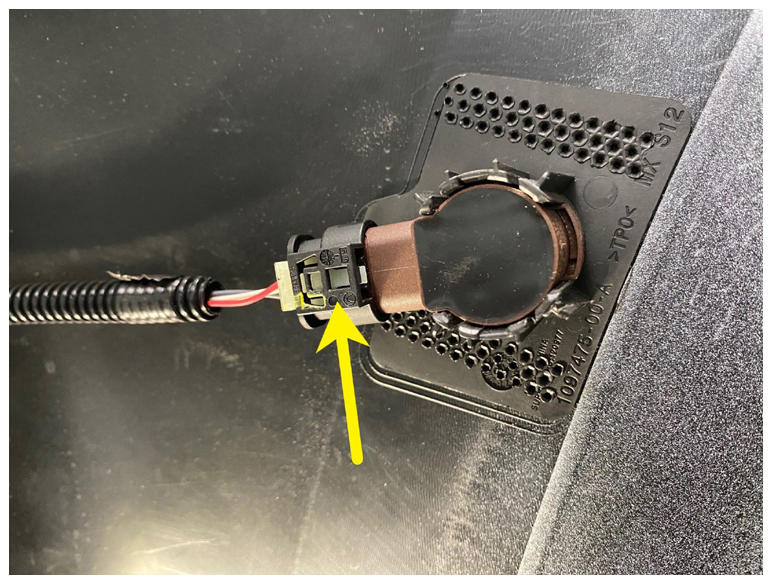

  3. Disconnect the electrical harness from the parking distance sensors (x6).
    G15202811Courtesy of TESLA, INC.

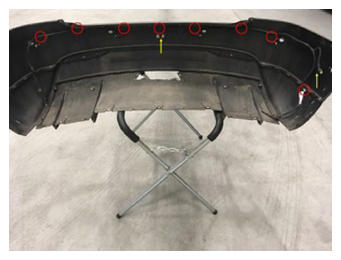

  4. Remove the clip, the sticky pads (x2) and the edge clips (x6) that attach the rear fascia harness to the rear fascia, and then remove the rear fascia harness.
    G15202812Courtesy of TESLA, INC.
