Harness - Door - Front - LH - Remove And Replace: Removal

  1. Remove the LH front door trim panel Panel - Door Trim - Front - LH (Remove And Install) .
  2. Remove the LH front door closeout panel Closeout Panel - Door - Front - LH (Remove And Install) .
  3. Disconnect 12V power DISCONNECT 12V POWER .
  4. Remove the LH front door controller module Module - Front Door Controller - LH (Remove And Replace) .

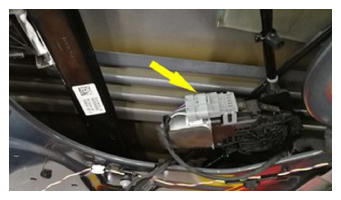

  5. Disconnect the LH window motor.
    G15202702Courtesy of TESLA, INC.
  6. Remove the LH front door speaker Speaker - Front Door (Remove And Replace) .

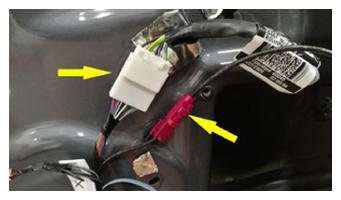

  7. Disconnect the LH door mirror connectors.
    G15202703Courtesy of TESLA, INC.

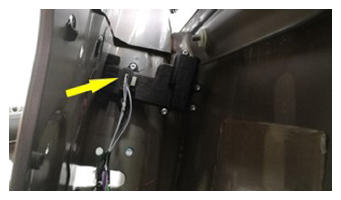

  8. Disconnect the LH door pop actuator connector.
    G15202704Courtesy of TESLA, INC.

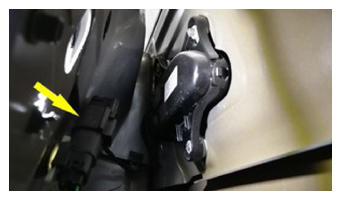

  9. Disconnect the door handle connector.
    G15202705Courtesy of TESLA, INC.

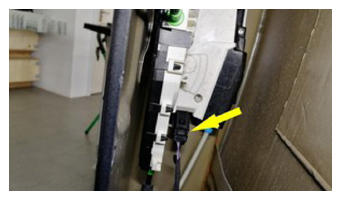

  10. Disconnect the latch connector.
    G15202706Courtesy of TESLA, INC.

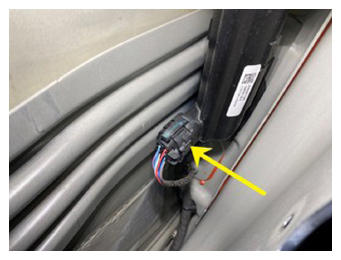

  11. Disconnect the connector to the LH front door drive unit.
    G15202707Courtesy of TESLA, INC.

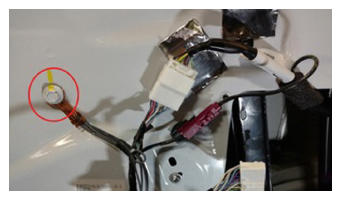

  12. Remove the bolt (torque 9 N.m) that attaches the LH front door harness ground wire to the door.
    G15202708Courtesy of TESLA, INC.

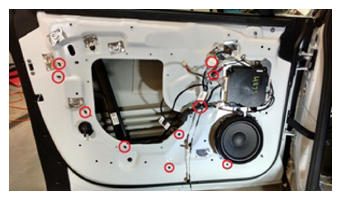

  13. Release the clips (x10) that attach the LH front door harness to the door.
    G15202709Courtesy of TESLA, INC.

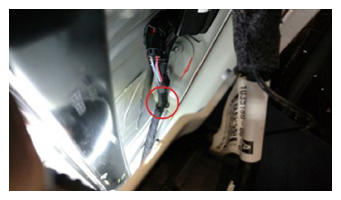

  14. Release the clip that attaches the harness below the LH front door drive unit.
    G15202710Courtesy of TESLA, INC.

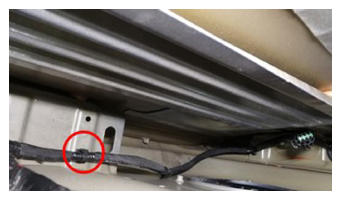

  15. Release the clip that attaches the harness to the base of the LH front door.
    G15202711Courtesy of TESLA, INC.

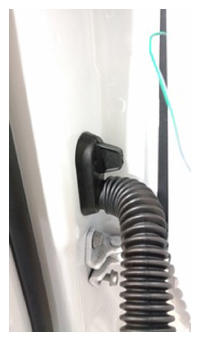

  16. Release the grommet from the LH front door.
    G15202712Courtesy of TESLA, INC.

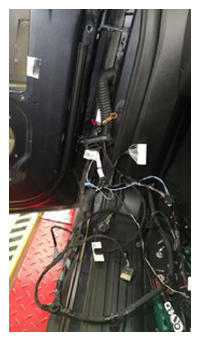

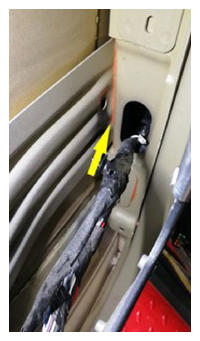

  17. Remove the harness from the LH front door.
    NOTE: Pull the grommets through the door, and then pull the harness out through the closeout panel access opening.
    G15202713Courtesy of TESLA, INC.
    G15202714Courtesy of TESLA, INC.

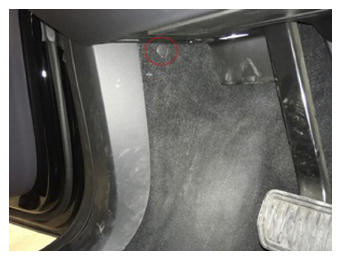

  18. Move the LH front A-pillar carpet aside.
    G15202715Courtesy of TESLA, INC.

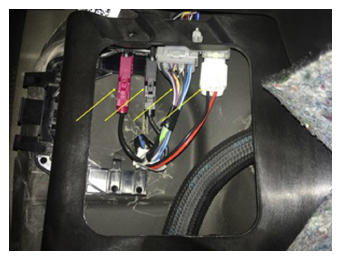

  19. Disconnect the LH front door connectors (x4) from the main center body harness.
    G15202716Courtesy of TESLA, INC.

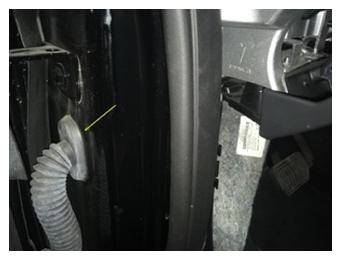

  20. Release the LH front A-pillar grommet.
    G15202717Courtesy of TESLA, INC.

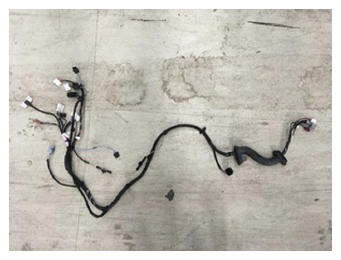

  21. Remove the LH front door harness from the vehicle.
    G15202718Courtesy of TESLA, INC.
