Bracket - Headlight - Outer - LH - Remove And Replace: Removal

  1. Remove the headlight assembly HEADLIGHT ASSEMBLY - LH (REMOVE AND REPLACE) .

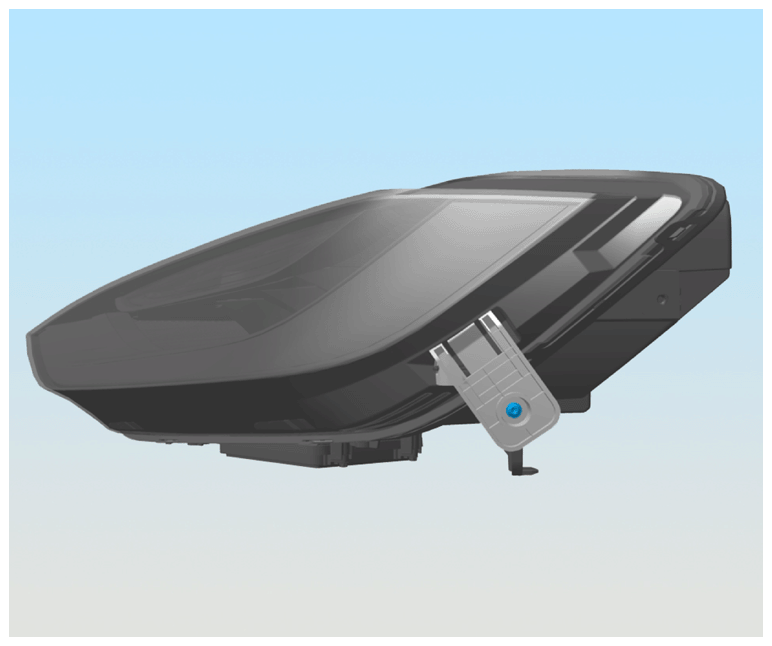

  2. Remove the screw that secures the outer bracket to the headlight (torque 1.0 N.m).
    G15203159Courtesy of TESLA, INC.
  3. Remove the outer bracket from the headlight.
