- Open the glove box.
- Remove the RH instrument panel lower assembly ASSEMBLY - INSTRUMENT PANEL LOWER - RH (REMOVE AND REPLACE) .

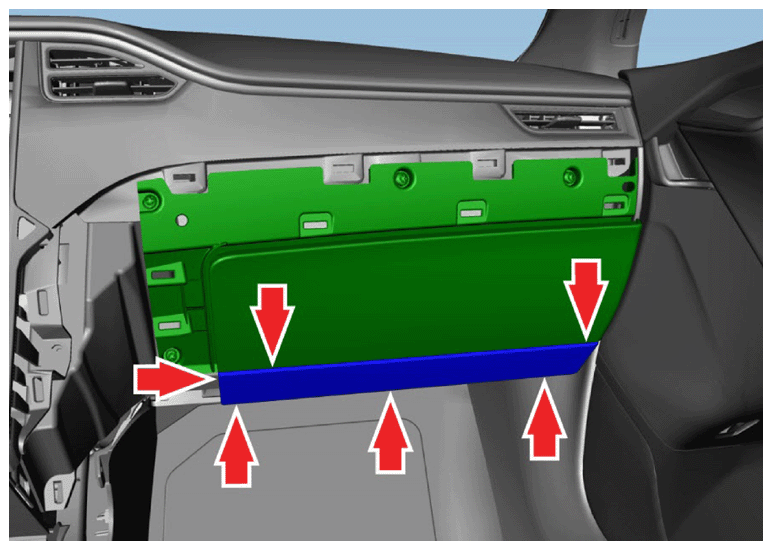

- Release the trim clips (x6) that secure the lower glove box panel to the instrument panel. Remove the lower glove box panel.
CAUTION:
Take care not to damage component(s).
 Courtesy of TESLA, INC.
|
- Remove the RH instrument panel side cover ASSEMBLY - INSTRUMENT PANEL SIDE COVER - LH (REMOVE AND REPLACE) .

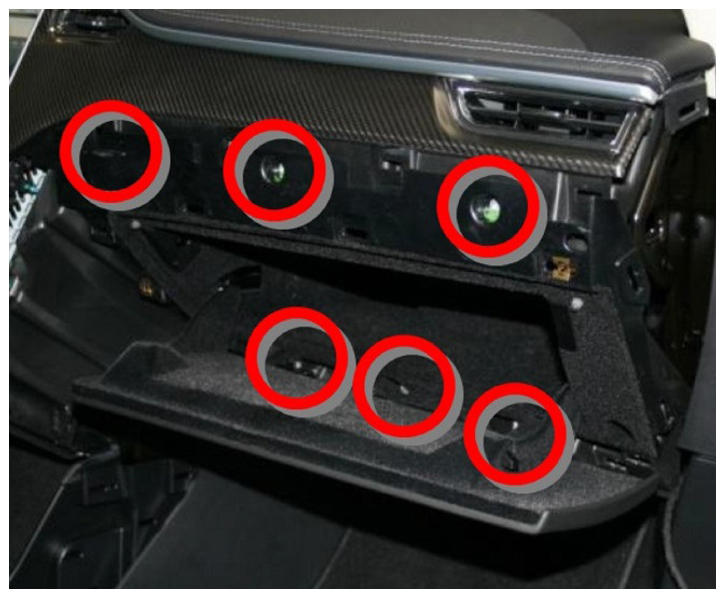

- Remove the screws (x6) that secure the glove box to the instrument panel (torque 2.3 N.m).
 Courtesy of TESLA, INC.
|

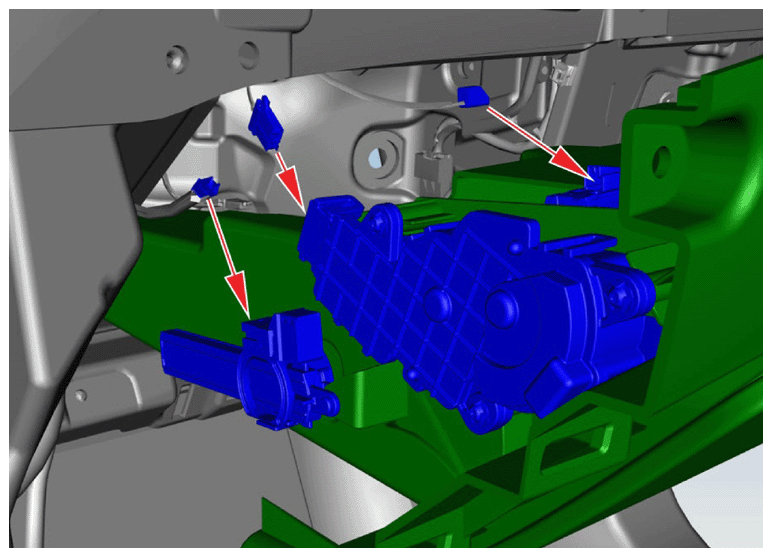

- Carefully pull the glove box away from the instrument panel. Disconnect the electrical connectors (x3) from the back of the glove box.
CAUTION:
Take care not to damage component(s).
 Courtesy of TESLA, INC.
|
- Remove the glove box from the vehicle.
